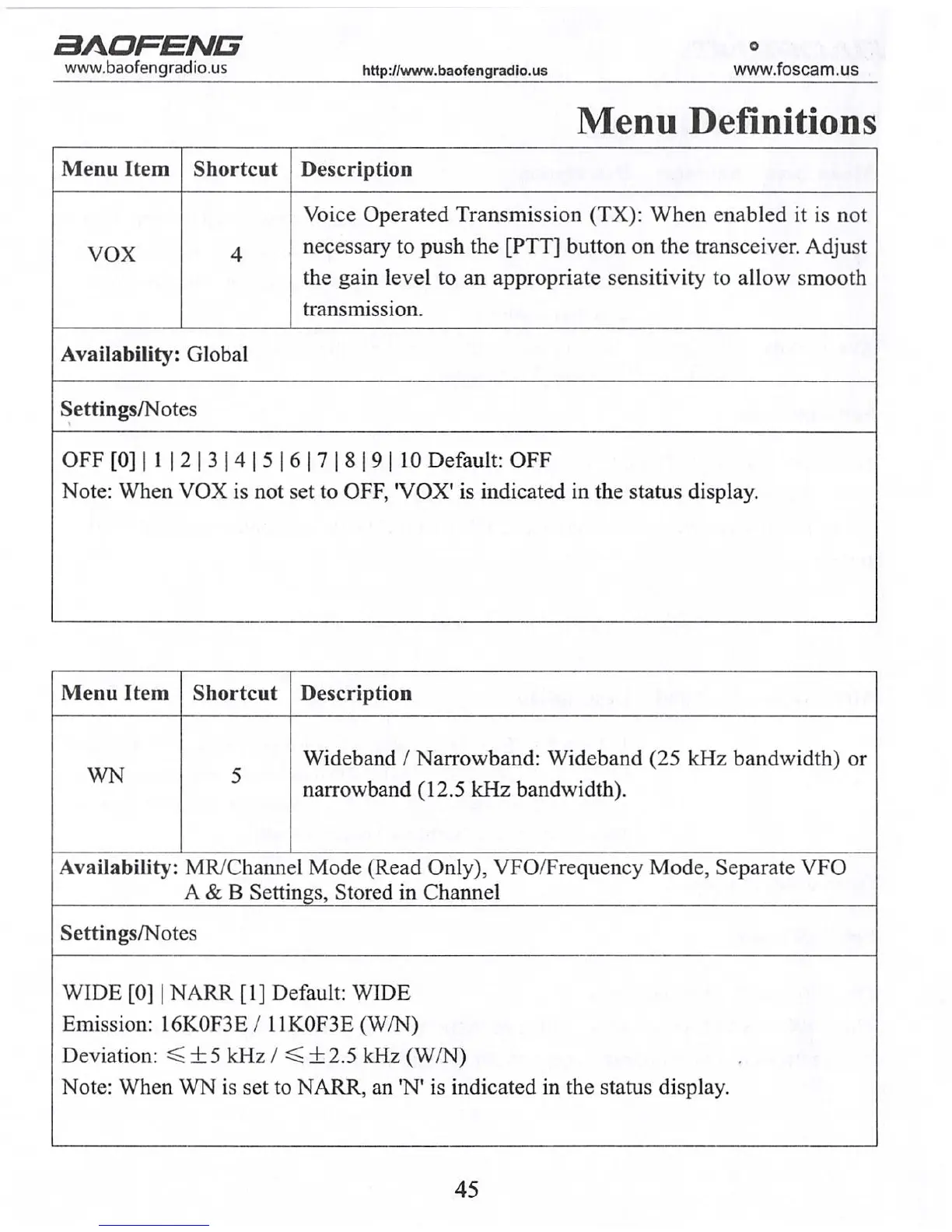

Menu Definitions
Menu Item
Shortcut
Description
VOX
Voice Operated Transmission (TX): When enabled it is not
necessary to push the [PTT] button on the transceiver. Adjust
the gain level to an appropriate sensitivity to allow smooth
transmission.
Availability: Global
Settings/Notes
OFF [0] | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 Default: OFF
Note: When VOX is not set to OFF, 'VOX' is indicated in the status display.
Menu Item Shortcut
Description
WN
Wideband / Narrowband: Wideband (25 kHz bandwidth) or
narrowband (12.5 kHz bandwidth).
Availability: MR/Channel Mode (Read Only), VFO/Frequency Mode, Separate VFO
A & B Settings, Stored in Channel
Settings/Notes
WIDE [0] | NARR [1] Default: WIDE
Emission: 16K.0F3E/ 11K0F3E(W/N)
Deviation: ^ ±5 kHz / =S ±2.5 kHz (W/N)
Note: When WN is set to NARR, an 'N' is indicated in the status display.
45
aAOFENE
www.baofengradio.us
http://www.baofengradio.us
www.foscam.us
DTMF
DTMF stands for Dual-Tone Multi-Frequency. Basically DTMF is an advanced
signaling method that uses dual sinusoidal signals for any given code. A good example
of DTMF in use is a touch tone telephone system. In two-way radio systems, DTMF
is mainly used for automation systems and for remote control. For example, DTMF
can be used to remotely activate repeaters by transmitting a specific sequence of
numbers.
Table: DTMF Frequencies and Corresponding Codes
1209 Hz 1336 Hz 1477 Hz 1633 Hz
697Hz 1 2 3
A
770Hz 4 5 6 B
852Hz 7 8 9 C
941 Hz
*
0 #
D
The Baofeng BF-F9V2+ allows for full implementation of DTMF. The numerical and
the [SCAN] and [LOCK] buttons correspond to the matching DTMF tones. The
numeric buttons correspond to the same DTMF tones, but to access the A, B, C, &
D codes, the [MENU], [UP], [DOWN], and [EXIT] buttons are used, respectively.
To send DTMF codes, press the buttons corresponding to the message you want to
send while holding down the [PTT] button. See below for the mapping of DTMF
tones to the keypad.
A B C D
1 2 3
*
4 5 6 0
7 8 9
#
26
