Baoli CPCD 80 - Precautions When Using the Battery; Harness

97

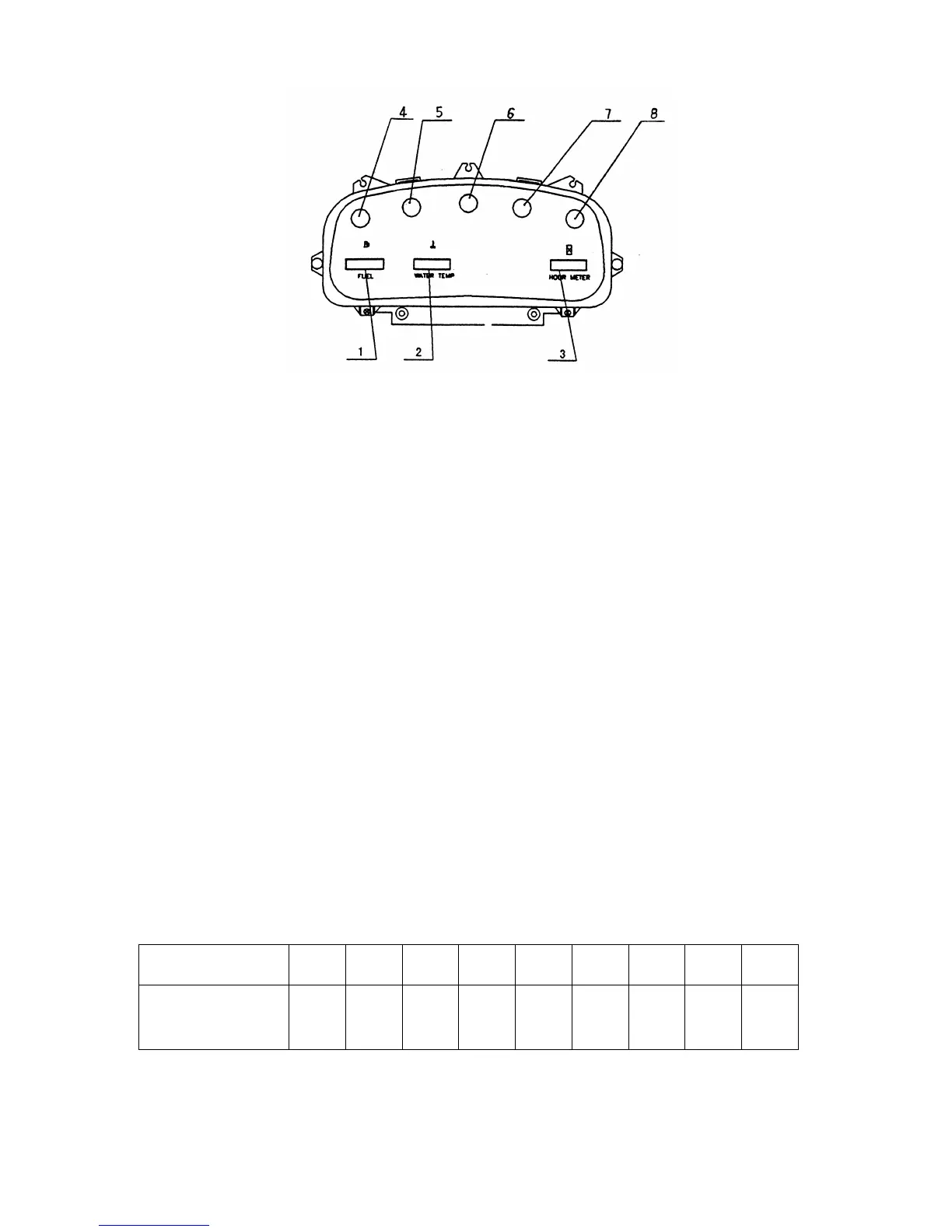

Fig9.4 LED Combined instrument
1.
Fuel meter
5.
Charge indicator
2.
Water temperature meter
6.
Neutral indicator
3.
Hour meter
7.
Filter indicator
4.
Oil pressure indicator
8.
Water separator signal
9.3 Precautions when using the battery
(1) Gases produced by the battery can be explosive. Do not smoke, use an open
flame, and create an arc or sparks in the vicinity of the battery.
(2) The electrolyte of battery is made of the dilute sulphuric acid. Handling should
be taken care. When the electrolyte adheres to eye, skin and clothes, it causes to lose
eyesight and burns. When an accident is occurred, take the emergency first aid and
consult a physician immediately.
(3) Dealing with the waste and worn batteries according to relevant laws and
regulations.
9.4 Harness
Allowable current-carrying of standard section for low voltage wire:
Section (mm
2
)
0.5
0.75
1.0
1.5
2.5
3.0
4.0
5.0
6.0
Current-carrying
(A)
11
14
20
22
25
25
35
The harness diagram is as shown in Fig9.5.1, Fig9.5.2, Fig9.5.3, Fig9.5.4.
