1.5 Coolant system
The coolant system composed with water pump, fan, radiator and the ancillary
radiator, the water pump installed in the engine, the crank through the V-series tape to
drive the water pump work.
1.6 Check and adjustment
To have a good work state, it needs to check and research on the engine termly.
The main point is as following:
1.6.1 Cleaning of the air condition (Fig.1.6)
(1) Take out the filter.
(2) Check the dust and the damage of the filter, fist puff away from inside to outside
to clean with low pressure air, if it’s jammed and can’t clean or has been damage,
change a new one.
(3) Clean the dust in the cover.

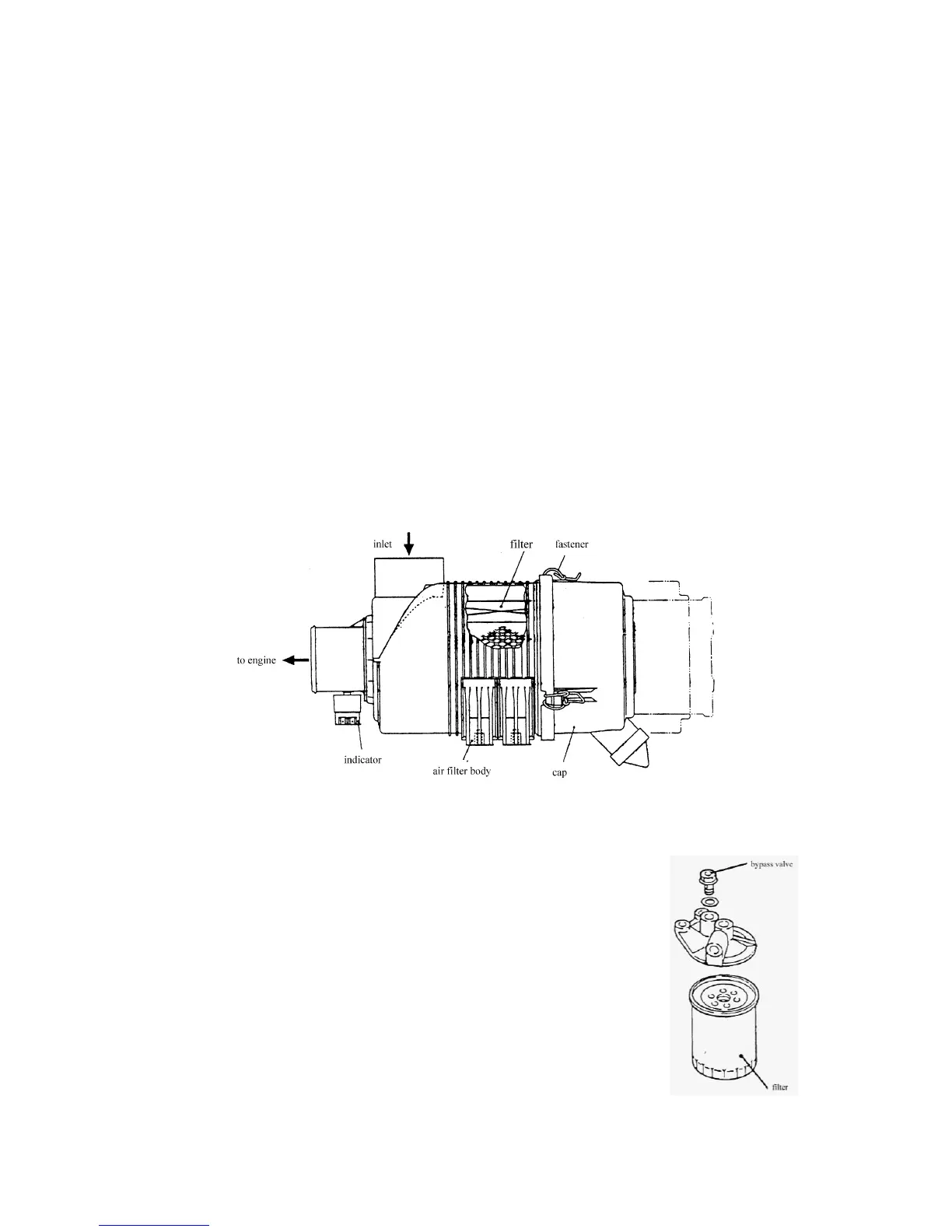

Fig.1.6 Air condition
1.6.2 Replacement of fuel filter (Fig.1.7)
(1) Use the filter specially spanner disassemble, if damage or
block, need to change.
(2) Along with the around of the new filter seal O-ring, add little
lube then install, when it contact the filter, screw 2/3 circle.
Fig.1.7
