8. Lifting system
8.1 General description
The lifting system is of two-stage, rolling telescopic mast type. The inner mast
frames have J-shaped section. The outer mast frames have C-shaped section. The
masts of forklift trucks all contain a free lift range. The structure of the mast sees Fig. 8.1
and Fig8.2.

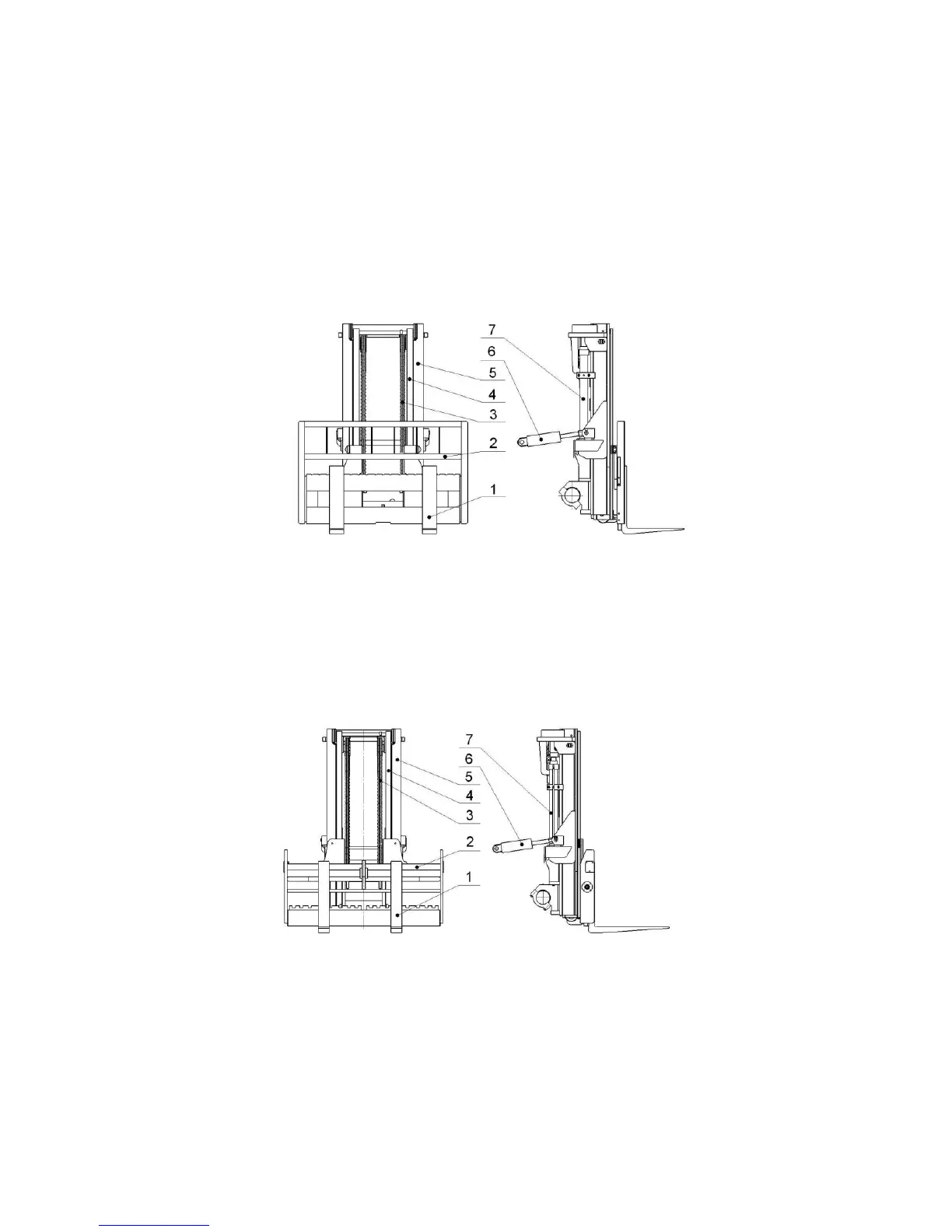

Fig8.1 Mast (8t)
1. Fork
2. Lift bracket
3. Lift chain
4. Inner mast
5. Outer mast
6. Tilt cylinder
7. Lift cylinder
Fig8.2 Mast (10t)
1. Fork
2. Lift bracket
3. Lift chain
4. Inner mast
5. Outer mast
6. Tilt cylinder
7. Lift cylinder
