5. Steering system
5.1 General description
Steering system contains mainly a steering hand wheel, a steering column, a
cardan joint, a powered steering unit, a steering axle and a steering cylinder.
The steering shaft is connected with the steering unit and steering hand wheel by
the joint. The steering column may be tilted properly forward or backward. Turn the
hand wheel clockwise, the forklift truck will turn to the right, on the contrary, the truck will
turn to the left.

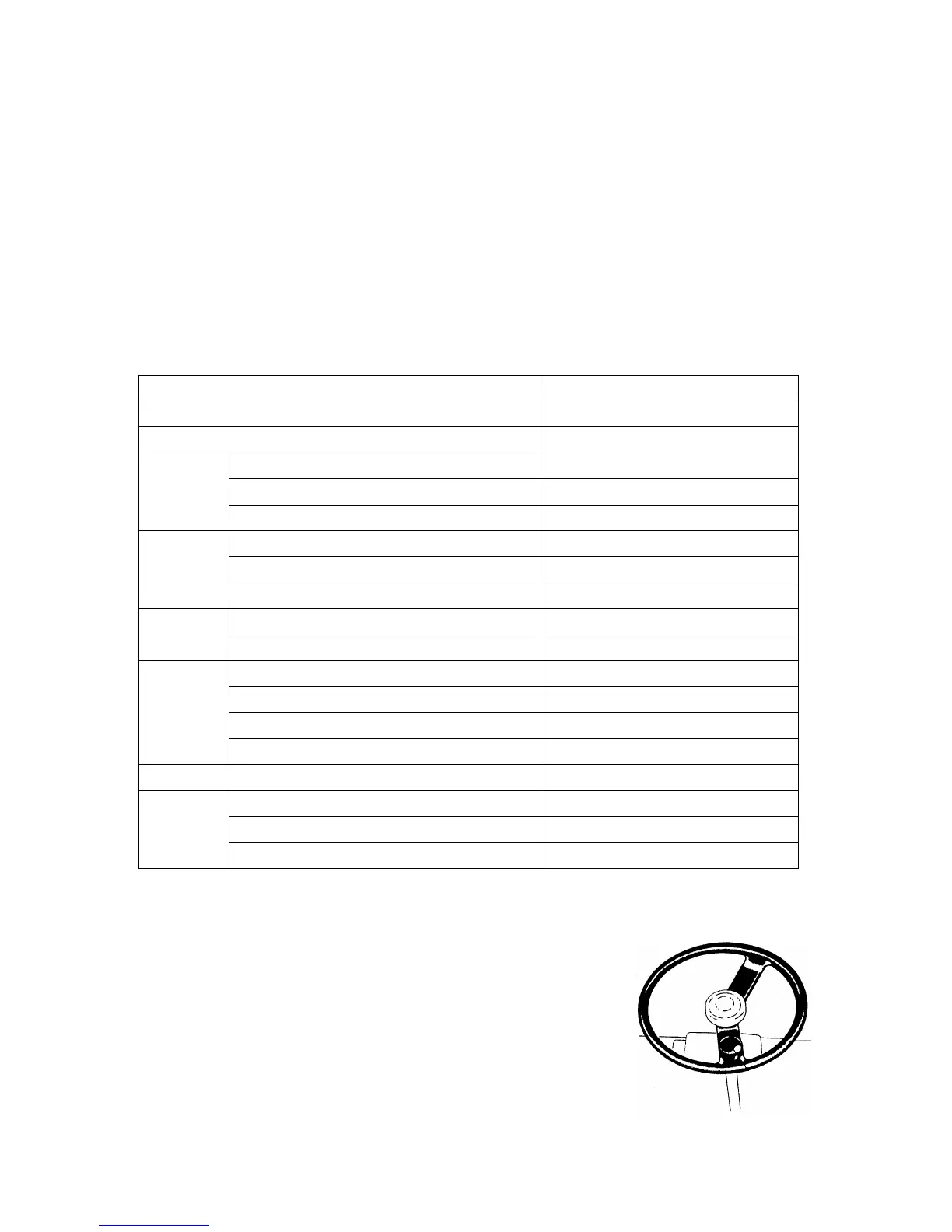

Main parameter and structure of the steering system sees below:
Item
Parameter & structure
Type
Rear wheel steering powered
Diameter of steering hand wheel
mm
360
Steering
unit
Type
BZZ powered steering unit
Displacement
min
280
Rated pressure
MPa
16
Steering
cylinder
Type
Double-action type
Cylinder dia. / Rod dia.
mm
Φ115/Φ85
Stroke
mm
2×216
Divider
Setting pressure
MPa
12.5
Rated displacement
l/min
27
Steering
axle
Type
Transverse cylinder type
Steering angle(outside/inside)
76°/54°
Rear tread
mm
1700
Interval of knuckle spindle
mm
1500
Diameter of cardan joint
mm
Φ42
Wheel
Tire
9.00-20-14PR
Rim
7.00-20
Pressure
KPa
760
5.2 Hand wheel
Hand wheel is operated in normal way, that is to say,
when turning the hand wheel right, the truck will turn right.
When turning the hand wheel left, the truck will turn left. The
rear wheels of the forklift truck are steering wheels, which
make the tail section of the truck swing out when turning. The
turning method can be mastered easily through practice.
