36

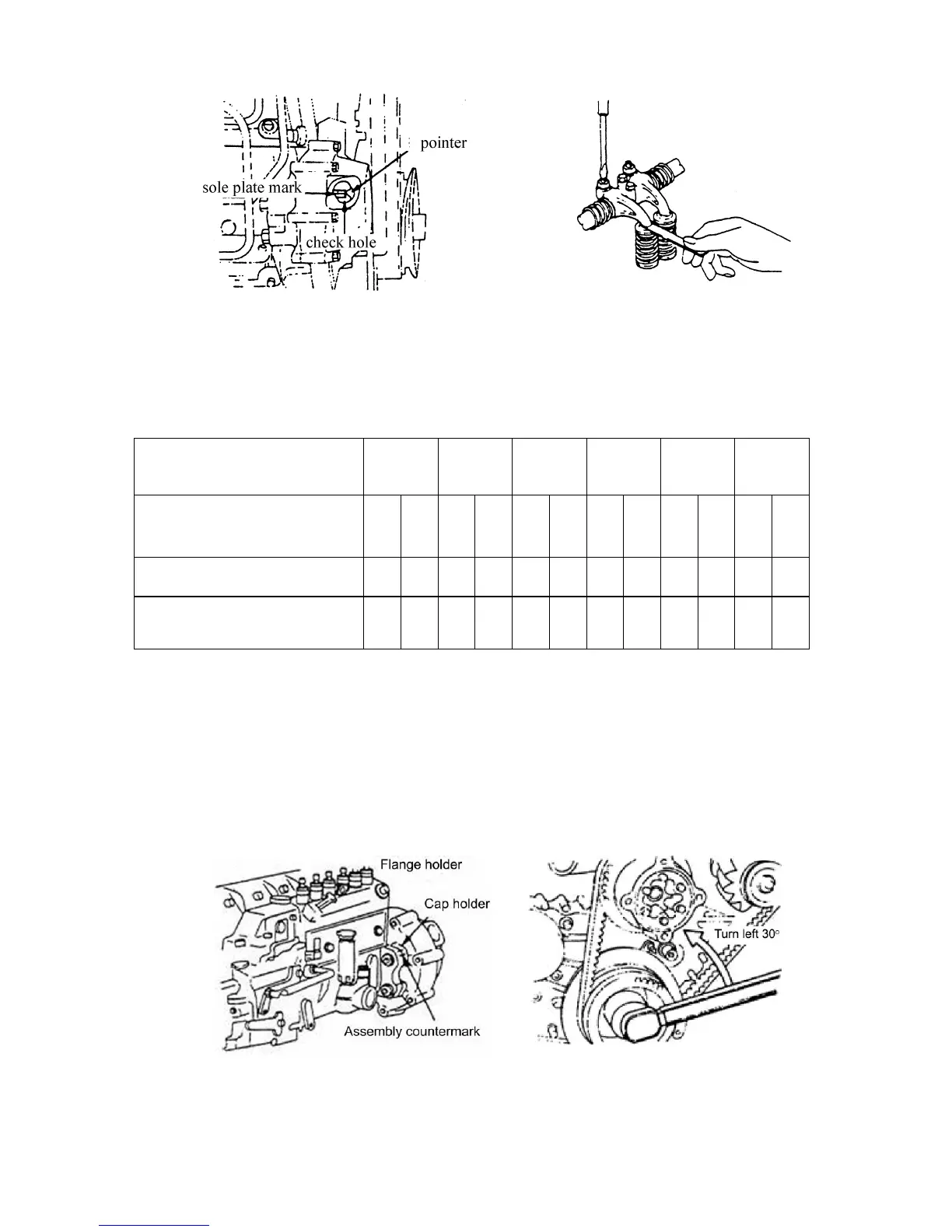

Fig.1.13 Fig.1.14
The material adjustment see Table 3.2.
Cylinder NO.
1
2
3
4
5
6
I:inspiration valve
E: exhaust valve
I
E
I
E
I
E
I
E
I
E
I
E
1st cyl. in TDC
△
△
△
△
△
△
6th cyl. in TDC
※
※
※
※
※
※
1.6.8 Fuel injection ignition time affirmation
(1) Affirm if the "assemble countermark" is in conformity with the place of injection
pump flange. See Fig1.15.
(2) Put the 1st cylinder to the TDC position, turn the crank shaft about 30°
counterclockwise, See Fig1.16.
Fig.1.15 Fig.1.16
