Baoli CPCD 80 - Page 57

51

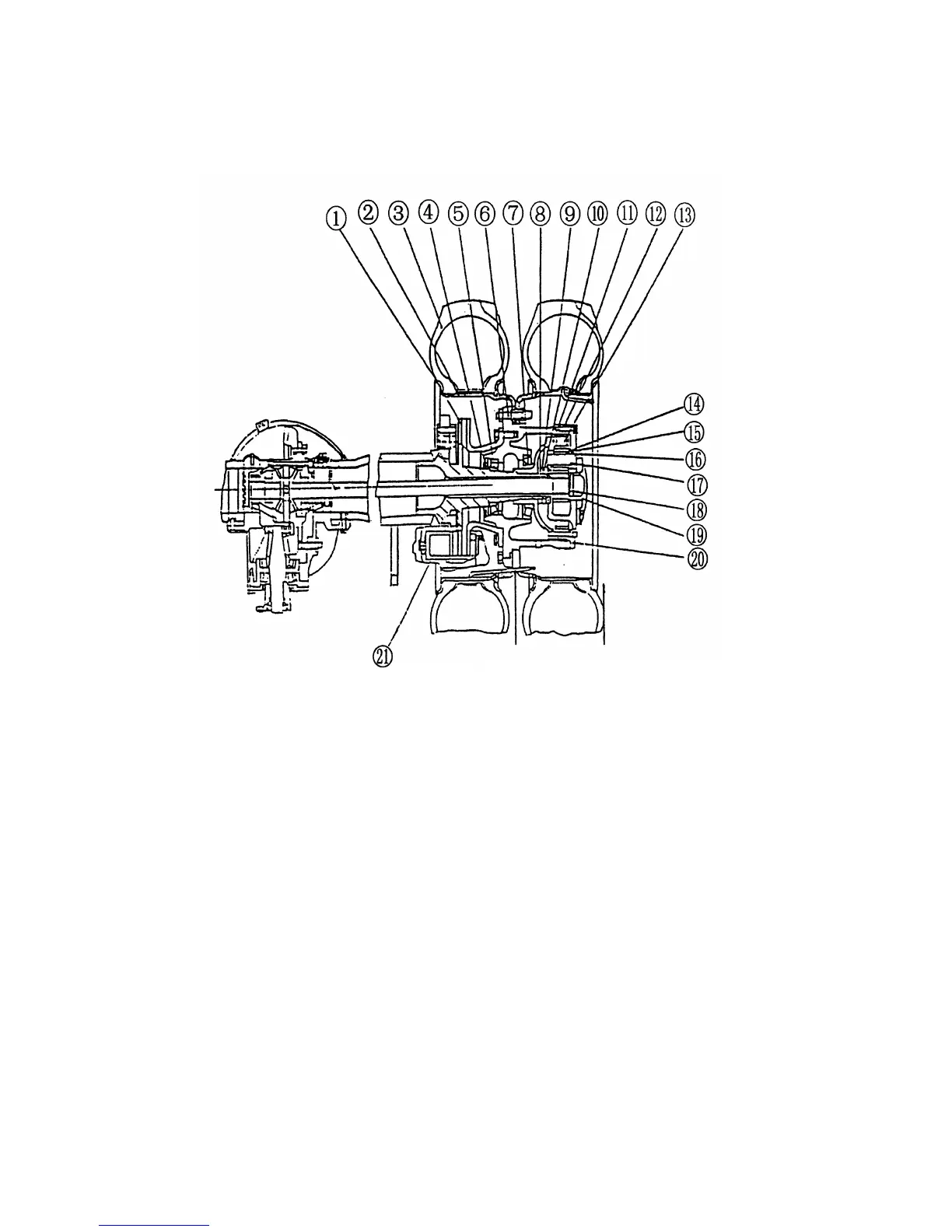

Fig.3.1 Front axle
1.
Breaking dial
8.
Lock nut(in)
15.
Roller bearing
2.
Wheel assembly
9.
Prevent-loosen gasket
16.
Steel ball
3.
Tyre
10.
Lock nut(out)
17.
Pinion gear shaft
4.
Oil seal
11.
Inner-gear seat
18.
Thrust washer
5.
Taper roller bearing
12.
Braking plate and shell
assembly
19.
Half-bearing cover
6.
Wheel assembly
13.
Inner gear ring
20.
Pinion gear bracket
7.
Taper roller bearing
14.
Pinion gear
21.
Clamp brake
