of the fork, pull the fork pin turn 1/4 circle, the fork clearance must be adjusted
according to the loaded goods.
8.4 Roller position
There are three kinds of rollers, main roller, side roller group and side roller. They
are separately mounted on the inner mast, outer mast and lift bracket. The main rollers
sustain the main loads from front, which can’t be adjusted, and rear direction and the
side rollers sustain the side loads with the left and right side clearance adjusted by the
gasket group, this will make the inner mast and lift bracket move freely. See Fig8.3,
Fig8.4.

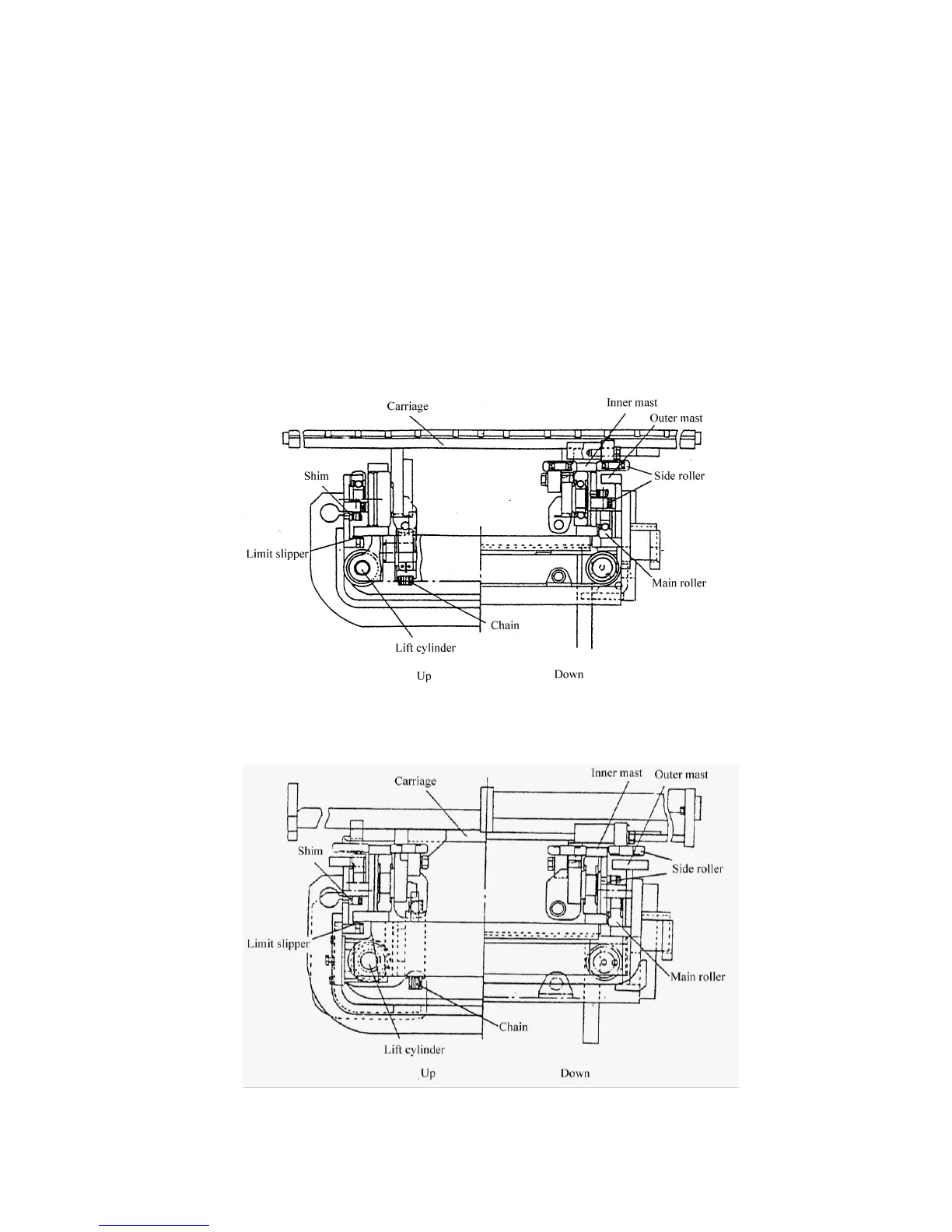

Fig8.3 Roller mounting (8t forklift)
Fig8.4 Roller mounting (10t forklift)
