8.6.2 Carriage adjustment
(1) Park forklift on horizontal place and let mast vertical.
(2) Put the bottom of fork onto ground, screw the adjustable nut at the end of joint

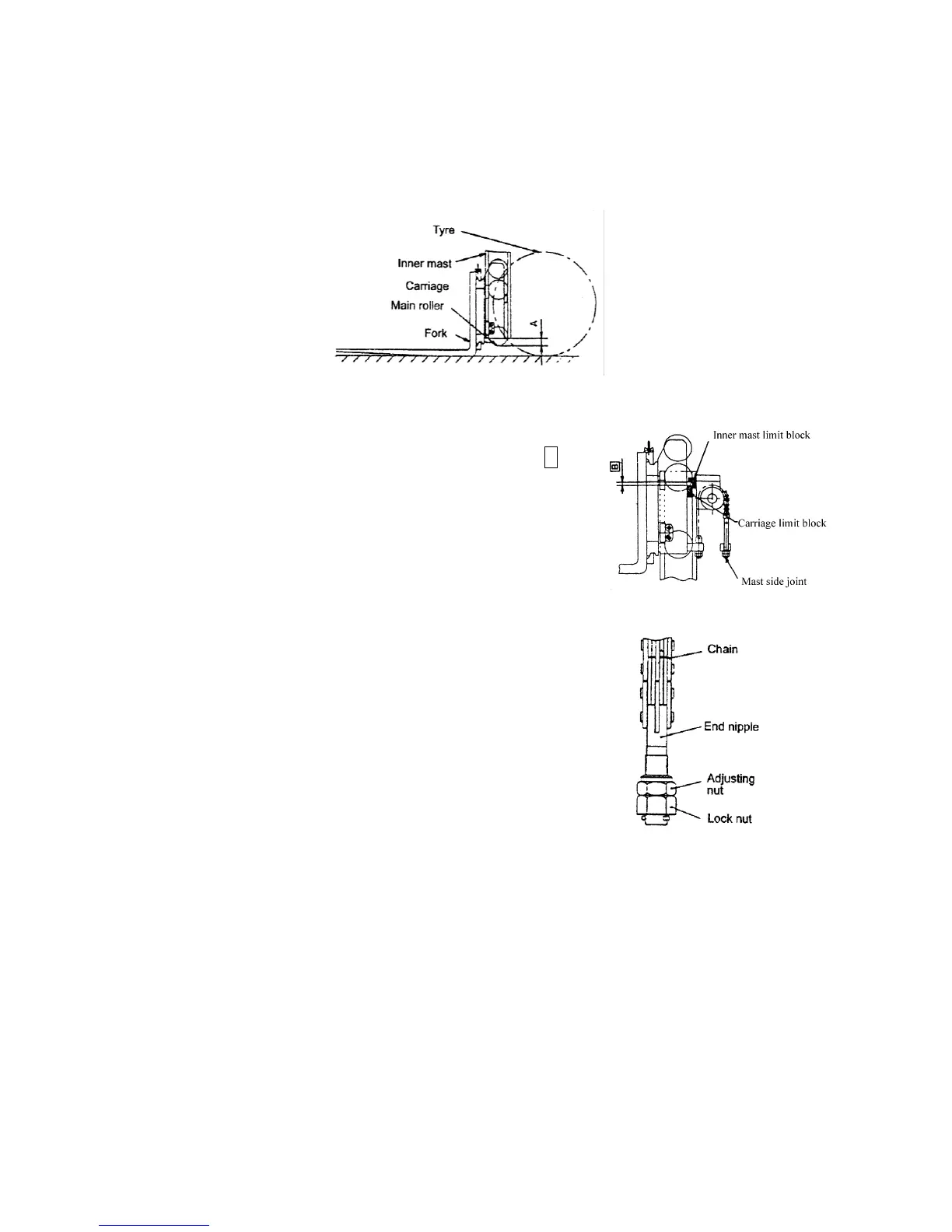

and let main idler wheel come out l/4-l/3 of its radius. See Fig8.6.
Fig.8.6
(3) Lift fork to Max. height, and ensure gap B
between limit blocks of fork and of inner mast shall be
5-10mm. See Fig8.7.
Fig.8.7
(4) Put down the fork and tilt to specified position, adjust
the nut at chain upside and tensility of two chains should be
same. See Fug8.8.
Fig.8.8
8.6.3 Replace rollers of the lift bracket
(1) Place a pallet on the forks and let the truck parking on the horizontal ground.
(2) Make the forks and the pallet down to the ground.
(3) Disassemble the end nipple of the upper chain and take the chain down from
the sheave.
(4) Lift the inner mast (See Fig8.9 ①).
(5) Make the truck back-up if the lift bracket is fully separated from the outer mast.
(See Fig8.9 ②)
