Barco ClickShare CSE-200 User Manual

R5900025 /08 ClickShare CSE-20024
2.1 About the CSE-200
CSE-200 sets
CSE-200 makes connecting to the meeting room’s video system a matter of clicking a Button.
This CSE-200 not only helps the presenter get the presentation on-screen in a second, but it also allows the
other people in the meeting to participate more actively. The result is enhanced meeting efficiency and better
decision-making.
At the moment 3 different sets are available on the market. Each set is sold in its specific region and it can only
be used in that specific region because of WiFi regulations.
Components CSE-200 set
A standard CSE-200 set consists of a Base Unit and 2 Buttons. Depending on the location where you buy the
product, the software of the Base Unit is different. If needed, you can buy additional Buttons and a tray to store
the Buttons.
1
2

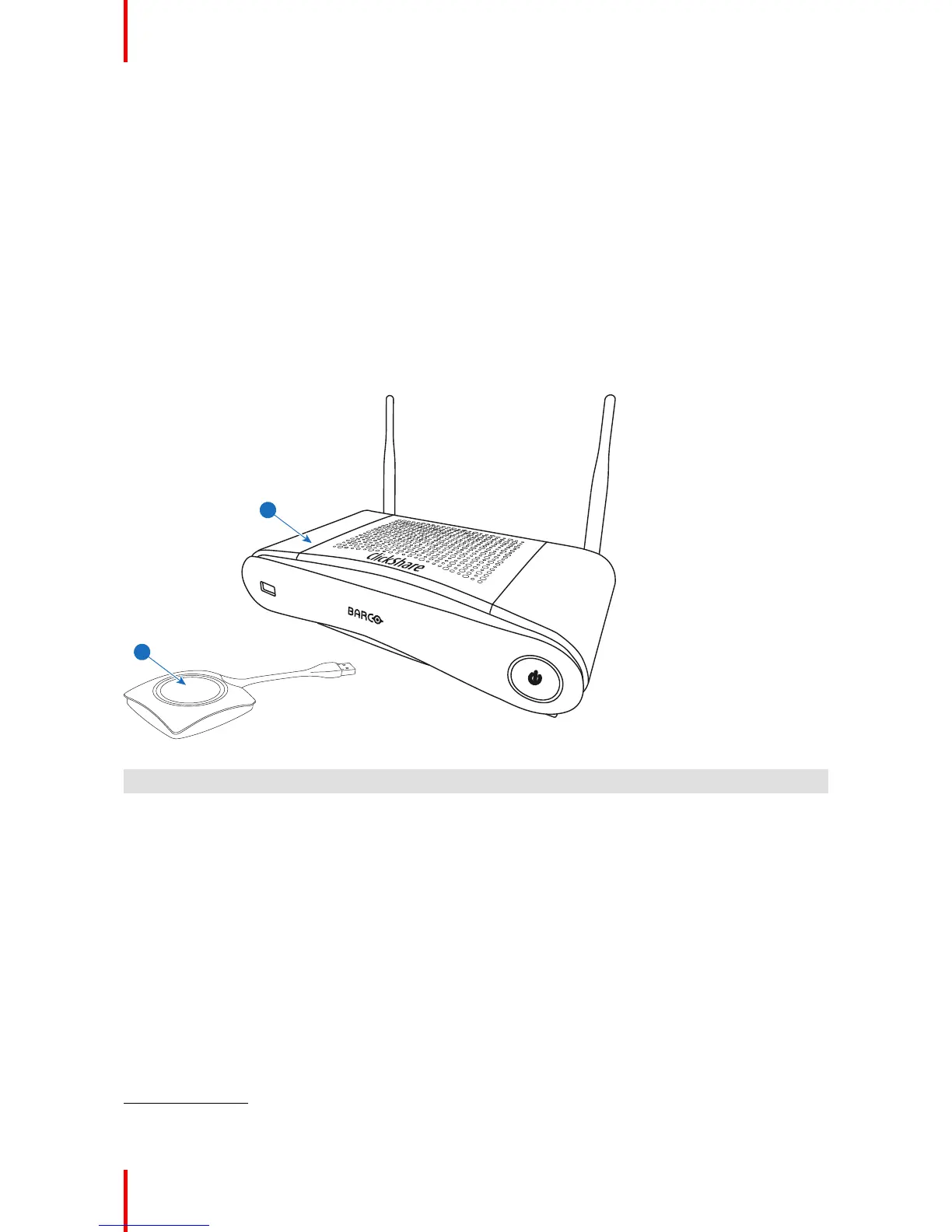

Image 2-1
1 Base unit
2 Button
Accessories included
Depending on the country where you buy the product, the following regionalized accessories are also included
in the CSE-200 box.
Products Contains Accessories included
R9861520xx
2
• R9861520
• 1x R9861500D01
• DC adapter with AC clips type
A, C, G, I
3
• Printed safety manual
R9861500D01 1x R9861500D01
R9861500D01C 1x R9861500D01C
Contact your local sales representative for the correct regional variant to be used in your country.
Introduction to CSE-200
2: xx=EU, CN, NA,
3: Included AC clips can be different according to the region

Barco ClickShare CSE-200 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	3
Number of users	2 user(s)
Maximum frame rate	30 fps
Maximum resolution (HDMI)	1920 x 1200 pixels
Power source type	AC
Power consumption (max)	18 W
Power consumption (standby)	2.6 W
Power consumption (typical)	6 W
Antenna type	External
Antennas quantity	2
Mobile operating systems supported	Android 5.0, Android 5.1, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 85 %
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	135 mm
Width	150 mm
Height	205 mm
Weight	600 g
