Barco ClickShare CSE-200 User Manual

R5900025 /08 ClickShare CSE-20026
LEDs behavior Explanation
• software update of the Base Unit
breathing white • ECO standby mode
static white • awake and ready (i.e. showing the welcome message on the
display)
• pairing is done
red blinking • an error occurred
dark • deep standby/off
Power button
The button at the front of the Base Unit has a standby function once the Base unit is powered.
• When the system is in normal operational mode, a push makes the system goes into a pre-defined standby
mode.
• When the system is in standby, a push triggers the system to start up and it goes into normal operational
mode.
Bluetooth
Bluetooth functionality is currently not available and Bluetooth signal is disabled.
2.3 About the Button
Button functionality
A Button contains three main functional components.
1 2 3

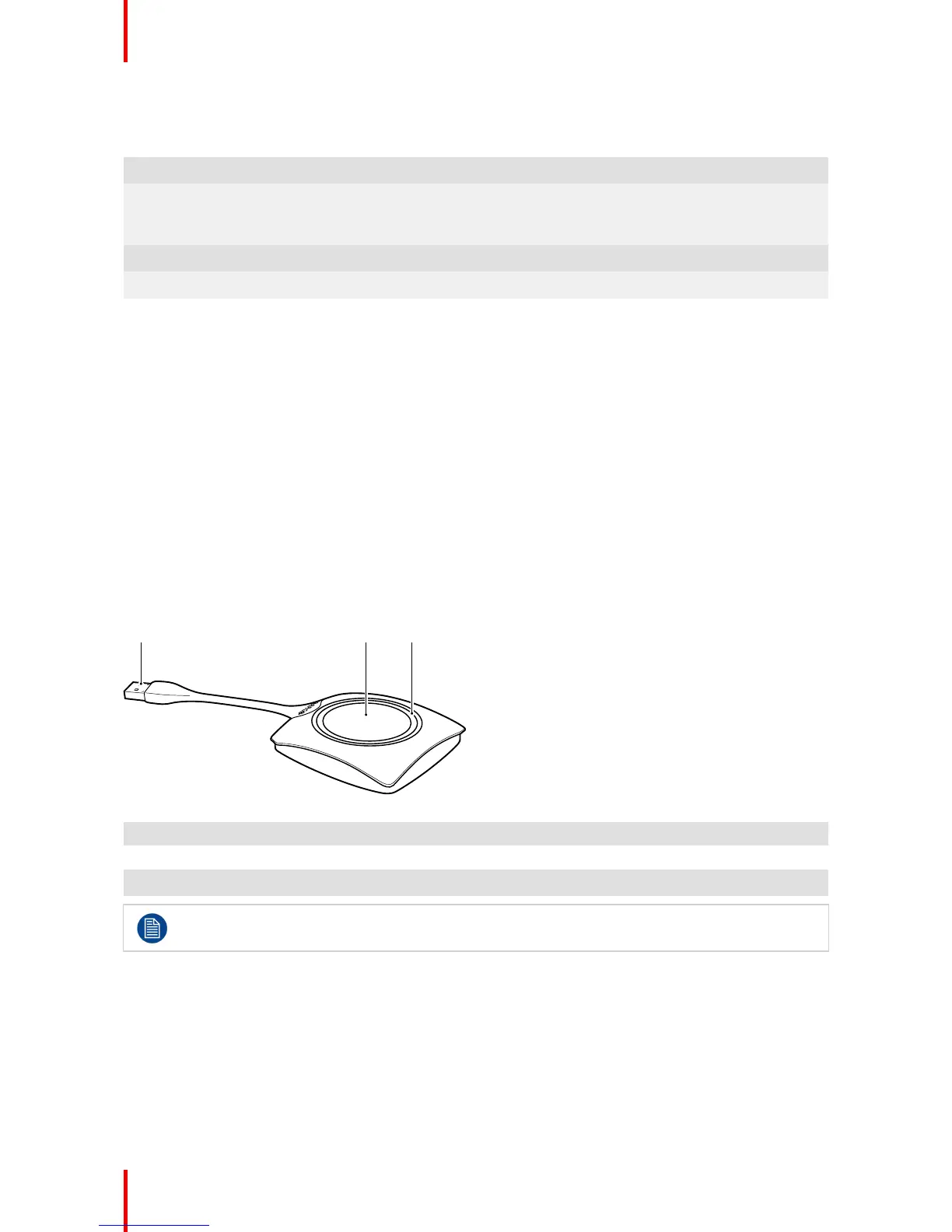

Image 2-3: The Button
1 USB connector
2 Button
3 LED ring
Handle the Button cable with care. Rough handling might cause defects.
USB connector
Using the USB connector the Button can be plugged into a laptop (for sharing your screen) or the Base Unit
(for pairing the Button to the Base Unit or updating its software). Button R9861500D1 has a USB Type-A
connector, Button R9861500D1C has a USB Type-C
TM
connector. Depending on the type of USB port on your
laptop or on the Base Unit a convertor must be use.
Introduction to CSE-200

Barco ClickShare CSE-200 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	3
Number of users	2 user(s)
Maximum frame rate	30 fps
Maximum resolution (HDMI)	1920 x 1200 pixels
Power source type	AC
Power consumption (max)	18 W
Power consumption (standby)	2.6 W
Power consumption (typical)	6 W
Antenna type	External
Antennas quantity	2
Mobile operating systems supported	Android 5.0, Android 5.1, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 85 %
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	135 mm
Width	150 mm
Height	205 mm
Weight	600 g
