Barco ClickShare CSE-200 User Manual

R5900025 /08 ClickShare CSE-200 39

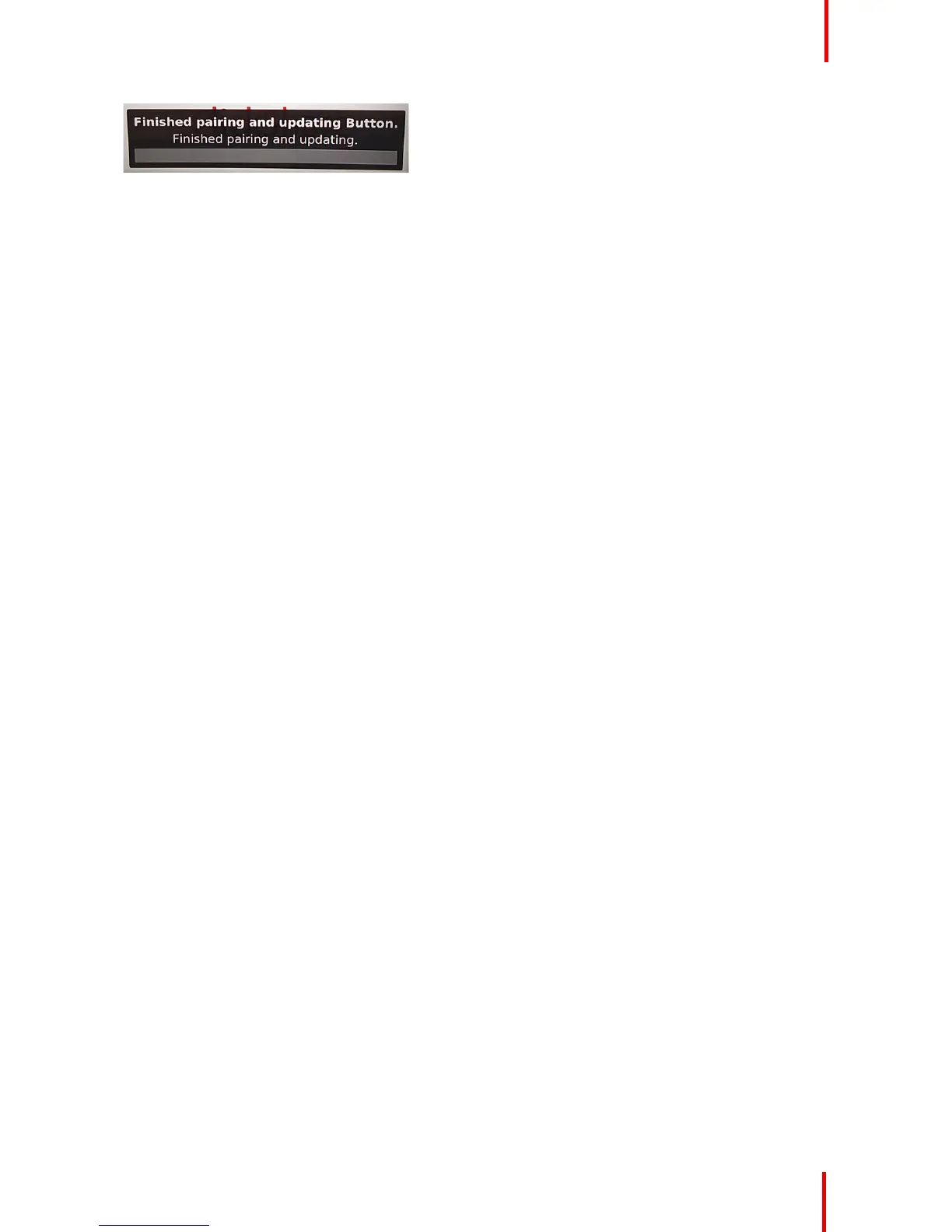

Image 3-17: Pairing finished
2. Unplug the Button from the Base Unit.
The Button is now ready for use.
To pair a Button to the Base Unit using the Button Manager
Via the Button Manager client application running on your laptop, up to 4 Buttons can be paired
simultaneously to a Base Unit without plugging the Buttons to the Base Unit. The Buttons are plugged in to
your laptop. For more information about the Button Manager, consult the Button Manager’s user guide which
can be downloaded from Barco’s website.
3.8 Touchback
About touchback
The Touchback feature enables more interactive meetings.
When connecting a touch screen to your Base Unit, it is now possible to automatically interact with the
presenter’s computer with a simple touch. No need to install drivers, search for USB cables or work with a
dedicated room system.
Actions done on the touch screen are automatically transferred to the presenter’s screen. And as he is sharing
his screen, the result will be visible on the touch screen.
This touchback functionality works only when a single presenter is sharing his screen.
Getting started

Barco ClickShare CSE-200 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	3
Number of users	2 user(s)
Maximum frame rate	30 fps
Maximum resolution (HDMI)	1920 x 1200 pixels
Power source type	AC
Power consumption (max)	18 W
Power consumption (standby)	2.6 W
Power consumption (typical)	6 W
Antenna type	External
Antennas quantity	2
Mobile operating systems supported	Android 5.0, Android 5.1, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 85 %
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	135 mm
Width	150 mm
Height	205 mm
Weight	600 g
