R5900096 /00 CX-50 39

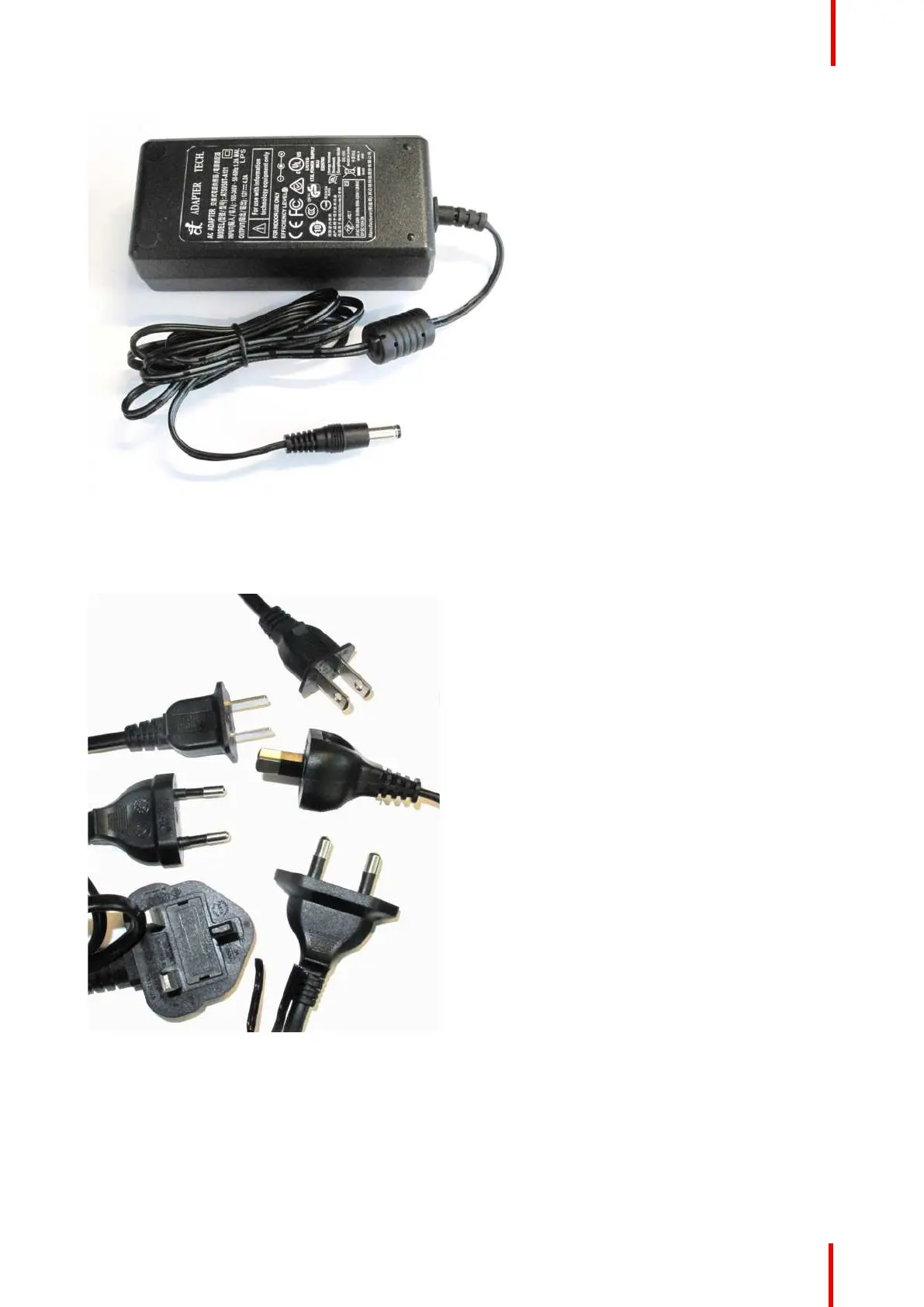

Image 4-5: Power adapter
Depending on the model and country, different power cables are delivered. Use always the correct cable to
connect the device to the wall outlet. If the correct cable is not available in the packing of the device, consult
your local supplier for a correct power cord.
Image 4-6: Power cables
How to connect
1. Plug the barrel connector of the power adapter into the power input of the Base unit.
2. Connect the power cable to the wall outlet.
CX-50 Installation
