133R5905753 /17 DPxK-19B/23B/P

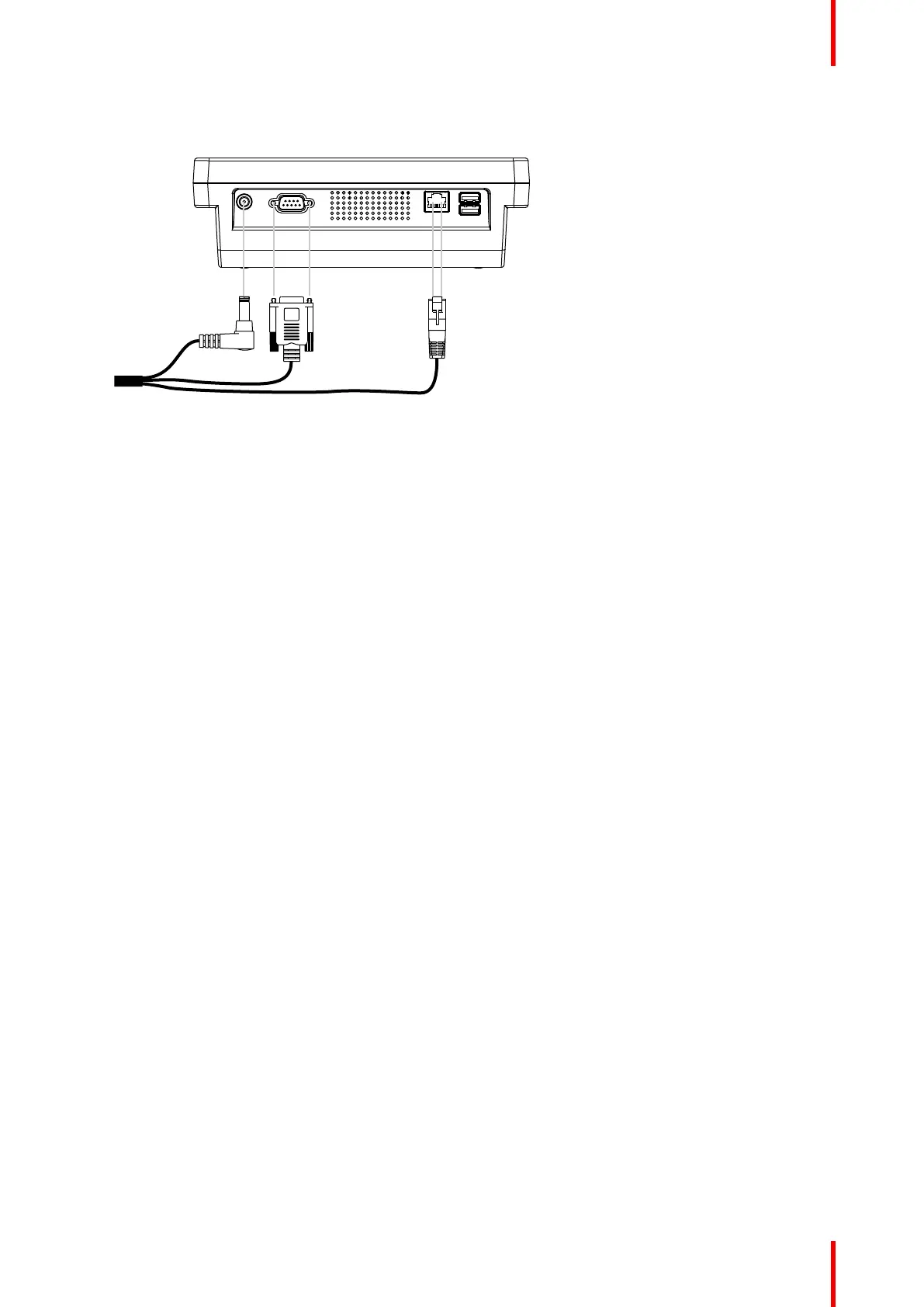

6. Connect the DC plug, the RJ45 Ethernet plug and the D-SUB plug into their respective sockets on the

touch panel interface.

Image 8–8 Connections

Communicator Touch Panel
