Barco DP2K-19B

R5905753 /17 DPxK-19B/23B/P86
Source: 3D-HFR
General settings Advanced settings
Port Port type Mode Scan type Color
space
Pixel mapping Calibration
Dual
(separate left
/ right eye)
Progressive SF-
2nd field dominant
YCbCr 3G - Level A -
Interleaved
Single
Dual
(separate left
/ right eye)

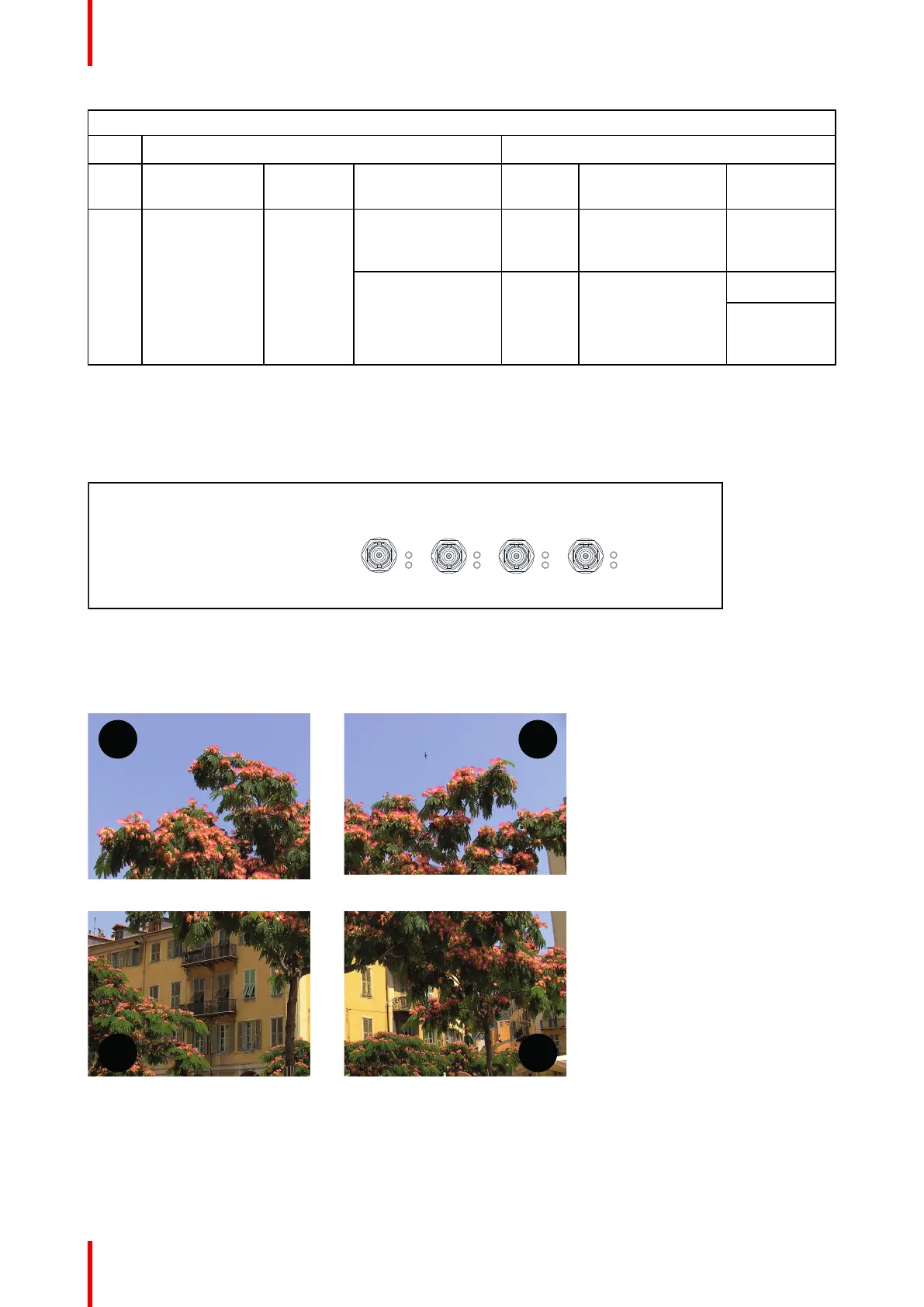

6.7 Quad 3G-SDI Input Module (optional)
Location and source input ports
SEL
SYNC OK
SEL
SYNC OK
SEL
SYNC OK
SEL
SYNC OK
QUAD 3G/SDI INPUT
A B C D
Image 6–6
The following input combinations are possible : A, B, A+B, A+B+C+D
When using all 4 four inputs to create the image connect the quadrants of the image to the inputs as indicated
on the drawing.
A B
DC
Image 6–7 Quadrant connection
To configure the input, consult the Communicator manual
Input & communication
