139R5905753 /17 DPxK-19B/23B/P
10.1 Removal of the lamp cover
Required tools
Flat screwdriver
How to remove

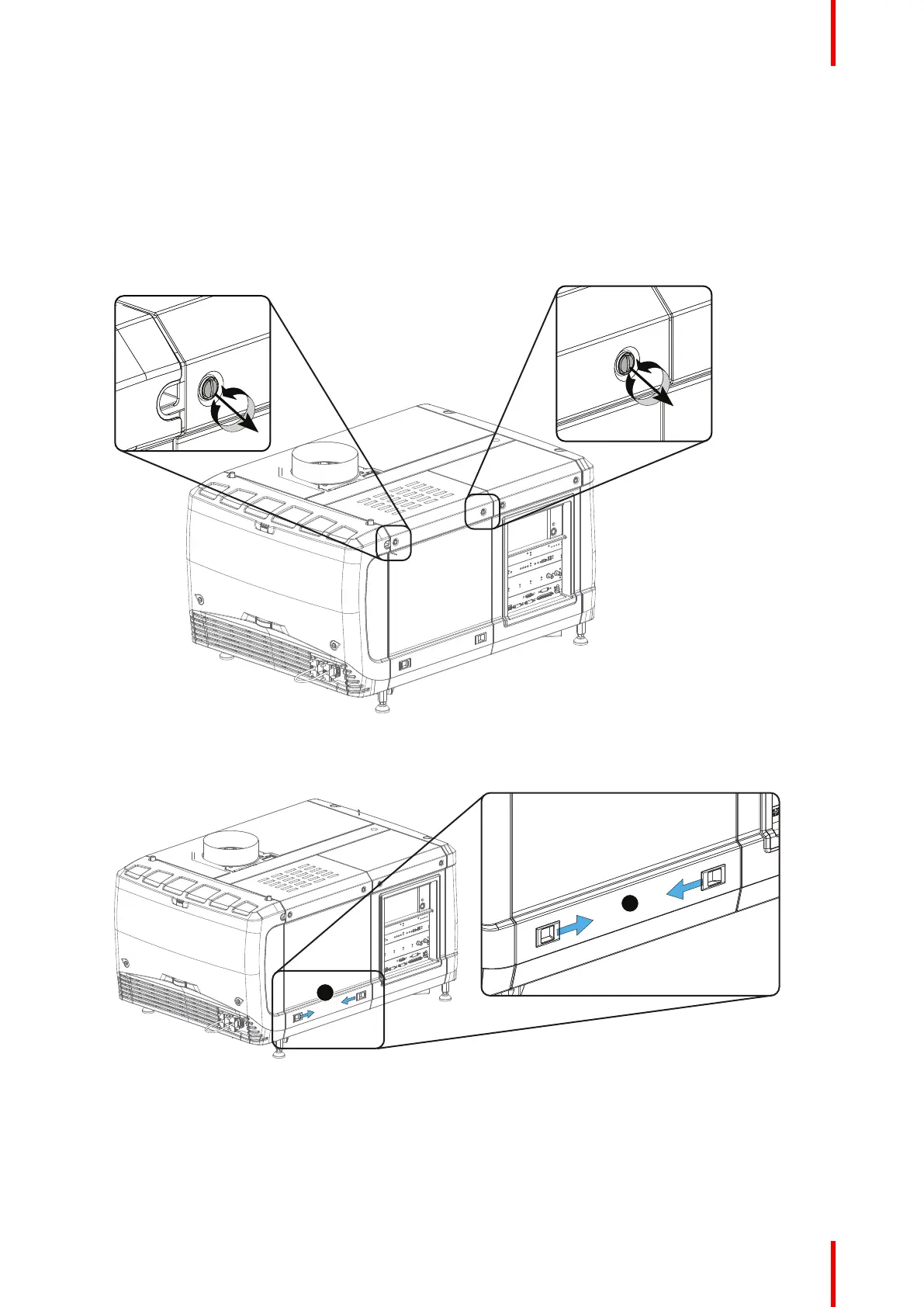

1. Release both captive screws on top of the lamp cover.
Image 10–2 Lamp cover, fasting screws
2. Push both lock to each other to release the locks and pull at the same time the bottom side of the cover
away form the projector.
Image 10–3 Lamp cover, locks
3. Take off the cover.
Removal and installation of the projector covers
