R5905753 /17 DPxK-19B/23B/P146

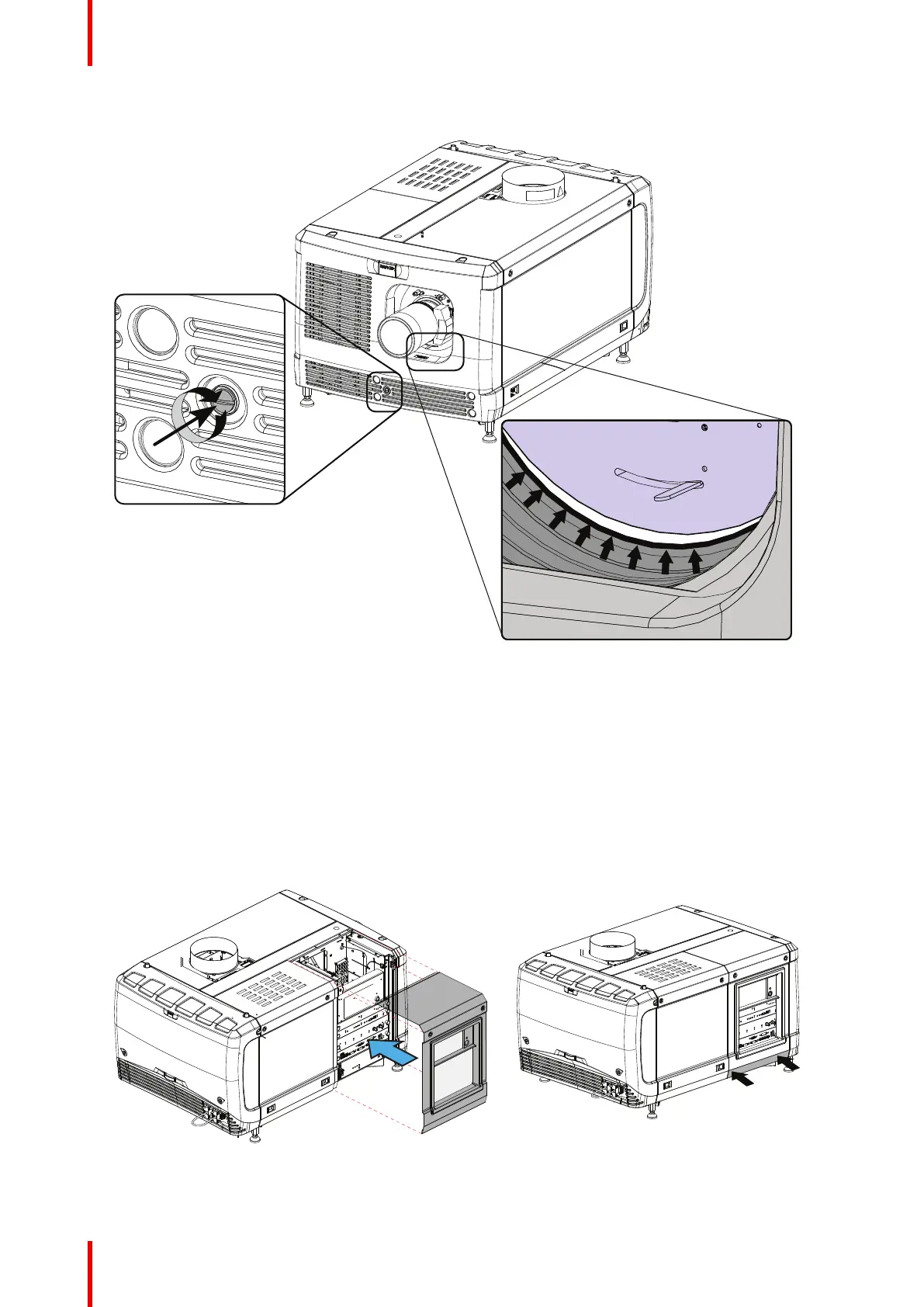

3. Secure the front cover by locking the captive screw in the middle at the bottom of the front cover.
Image 10–14 Secure front cover
4. Reinstall the rubber dust ring around the lens holder.
10.7 Installation of the input cover
Required tools
Flat screwdriver
How to install
1. Place the top side of the cover on its place.
Image 10–15 Mount input cover
Removal and installation of the projector covers
