143R5905753 /17 DPxK-19B/23B/P

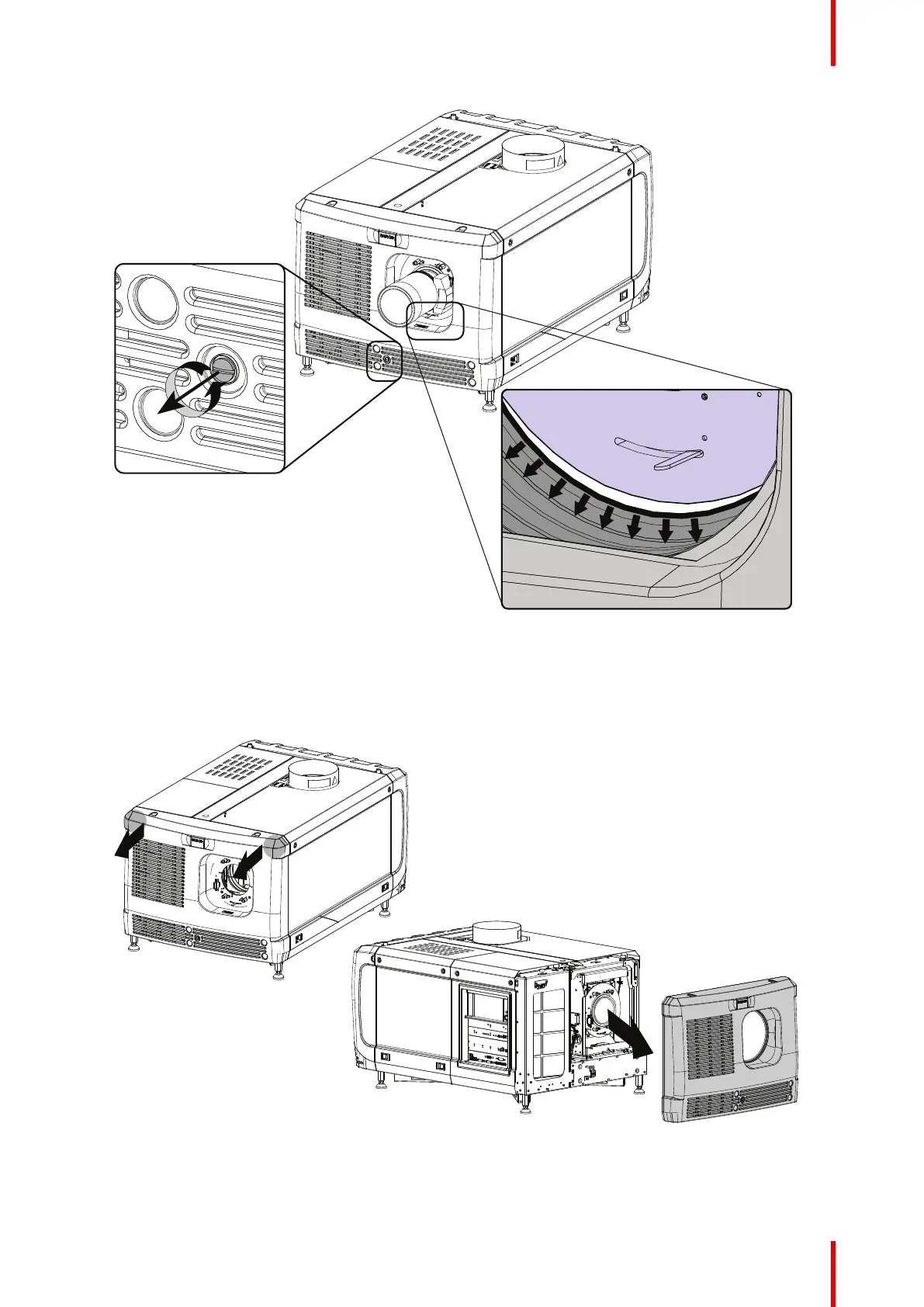

Image 10–8 Release cover removal
3. Release the captive screw at the middle bottom of the front cover.
4. Remove the front cover as follow:
1. standing in front of the projector, pull the top side of the cover to you until it is unlocked.
2. slide the cover away from the projector.
Image 10–9 Remove front cover
Removal and installation of the projector covers
