2.2 Input/Output (I/O) Panel

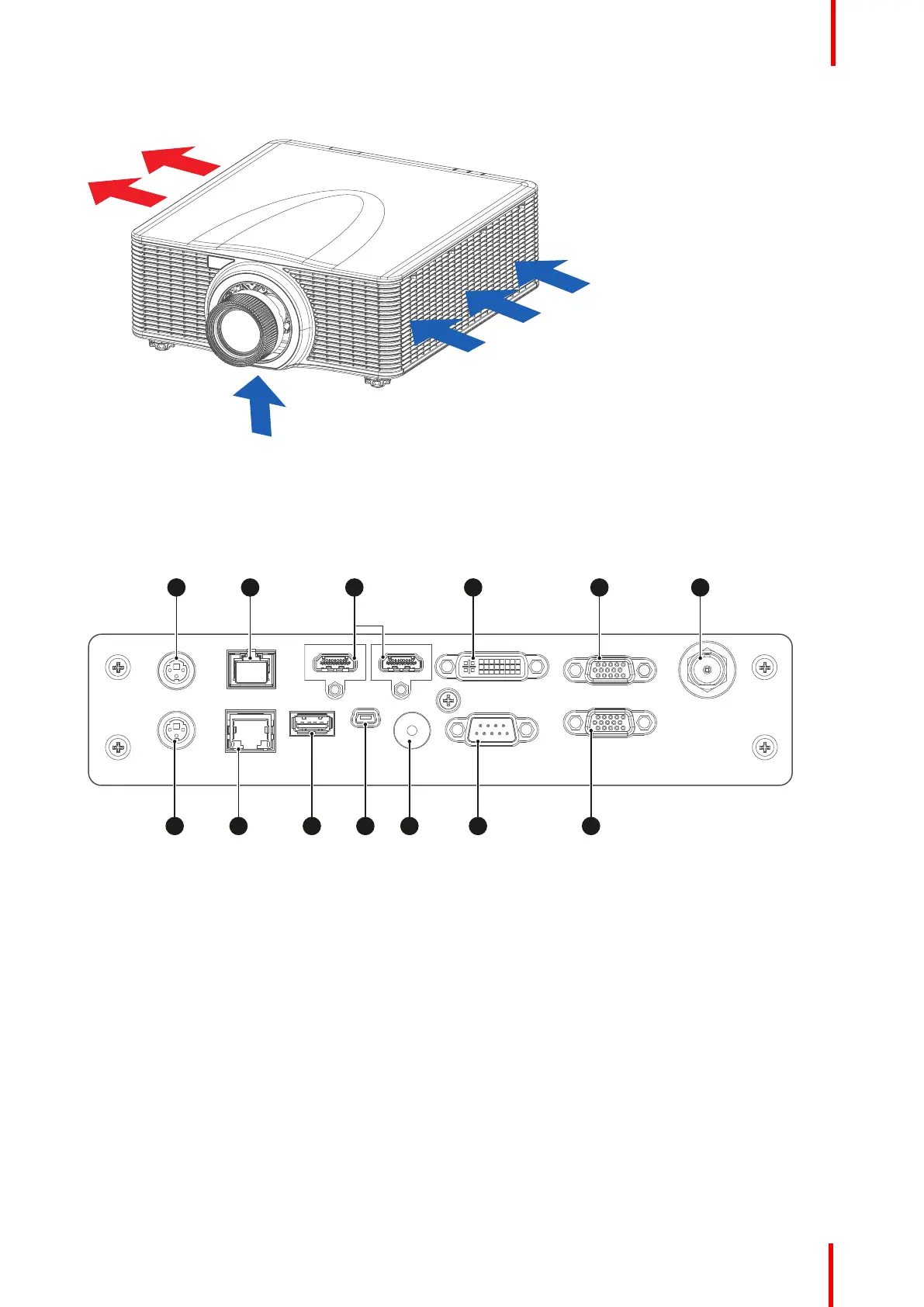

Input and output ports location
VGA-OUT
VGA-IN
DVI-D
HDMI-1
HDMI-2
3D SYNC OUT
3D SYNC IN
LAN
HDBas eT
REMOTE I N
USB Type-A
mini USB
3G-S DI
RS-232
1 2 4 5 6
7 8 9 10 11 12 13
3
Image 2-4
1 3D SYNC IN
2 HDBaseT connector
3 HDMI connector
4 DVI-D input connector
5 VGA-IN connector
6 3D-SGI connector
7 3D SYNC OUT
8 Networking connector RJ45
9 USB Type-A (Power out 5V, 0.5A)
10 Mini USB (Service)
11 Wired remote connector
12 RS232 connector
13 VGA-OUT connector
