Barco LCD 5521 V4 User Manual

5. Mechanical setup of display wall with pedestals
Pedestal
17

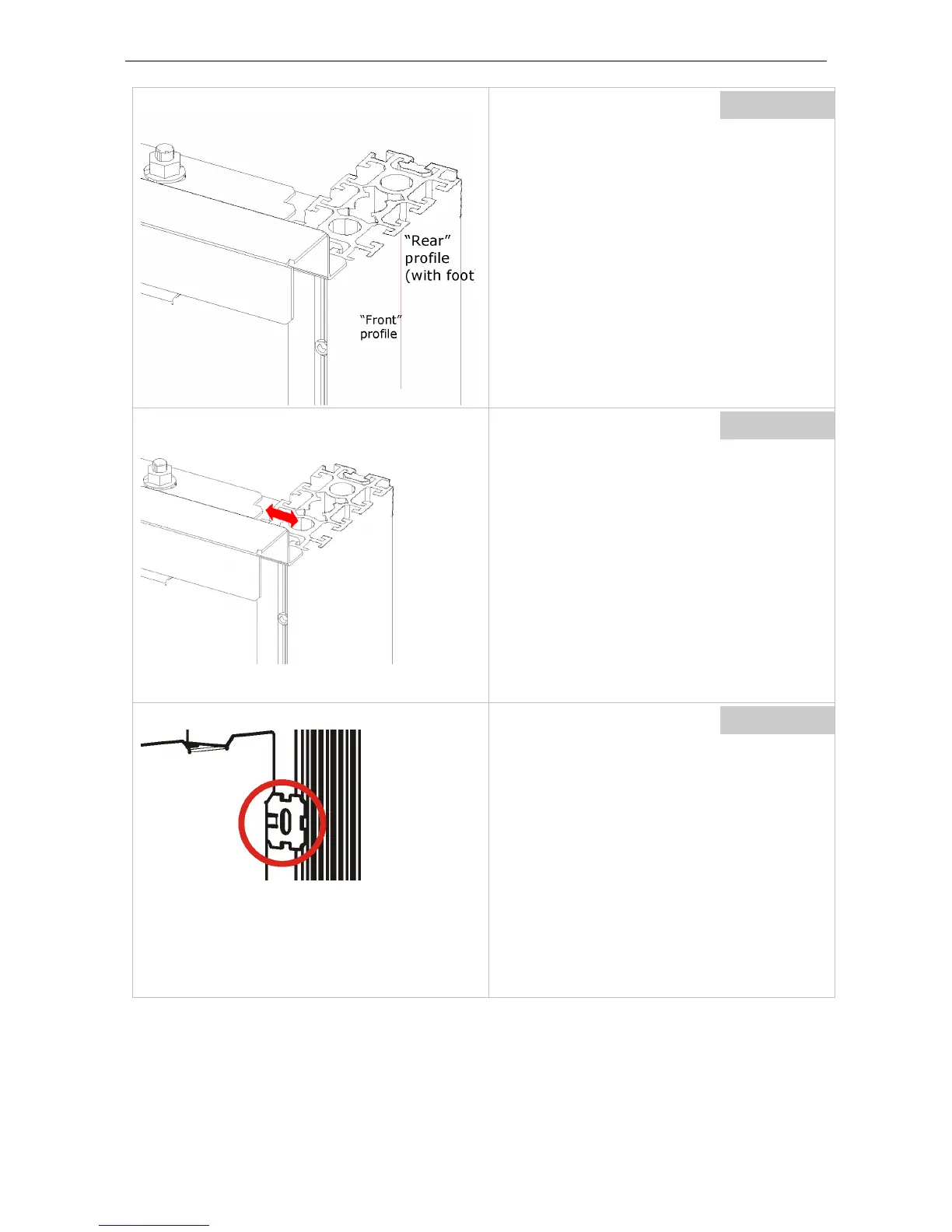

Install the top of the pedestal.
Fix the alu corner of the top horizontal profile
(part of the top of the pedestal) to the left/right
"front" vertical profile using 2x one hammer bolt
Pedestal
18
Align the profiles!
Pedestal
19
In case of OVD, KVD and IVD:
On the left and on the right of the cable hub, ap-
ply the spacer!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
_____________________________________________________________
36
