5. Mechanical setup of display wall with pedestals

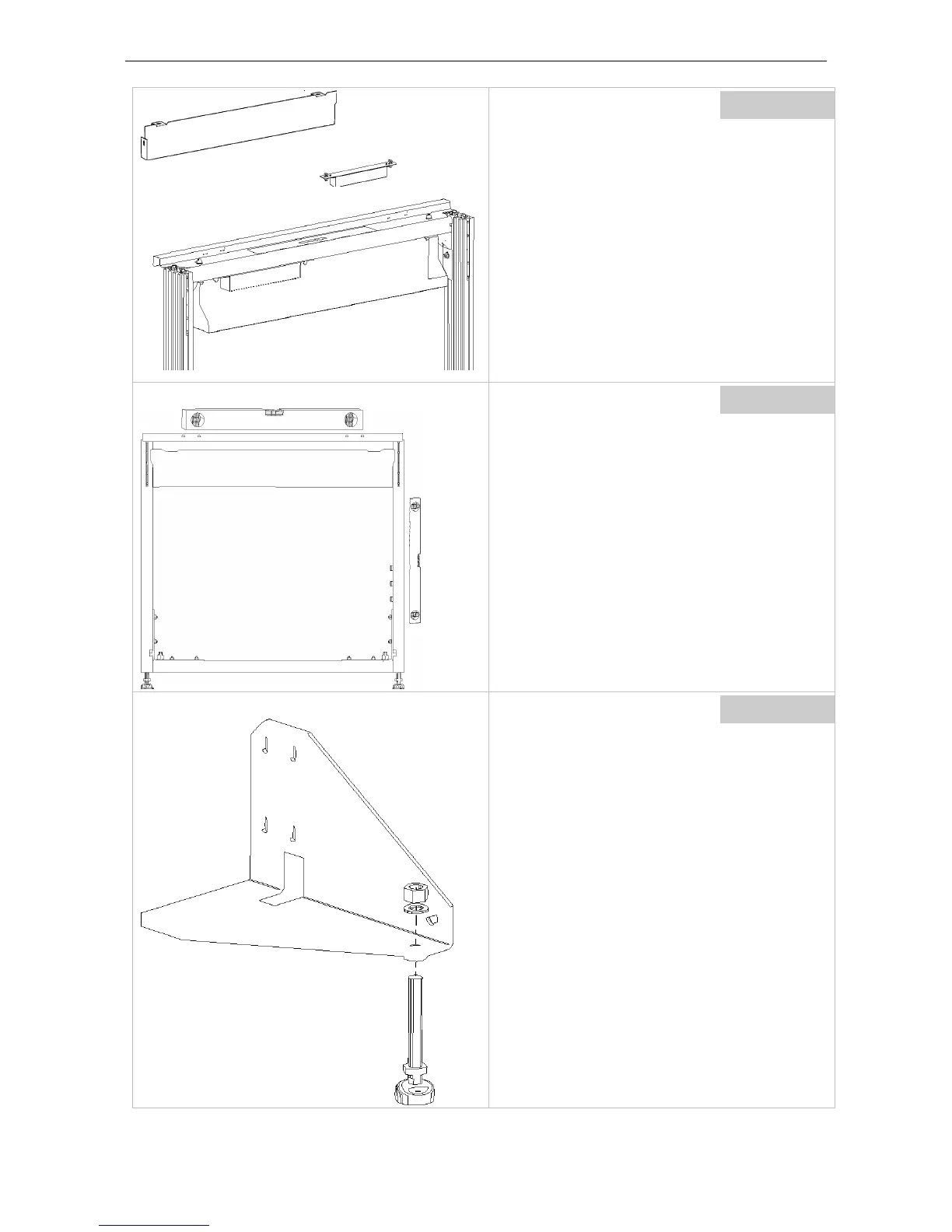

Pedestal
Install the cable hub R879299. It is mounted to
the pedestal top via two hammer bolts, and to
each of the vertical profiles with 1 hammer bolt.
Make sure that the "tray" shows to the rear!
Subsequently mount the power strip using two
hammer bolts.
Start with mounting the feet to the feet support
brackets R867120.
On the bottom of the feet support bracket there is
a welded nut to screw in the foot.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
