Barco LCD 5521 V4 User Manual

5. Mechanical setup of display wall with pedestals
Pedestal
29

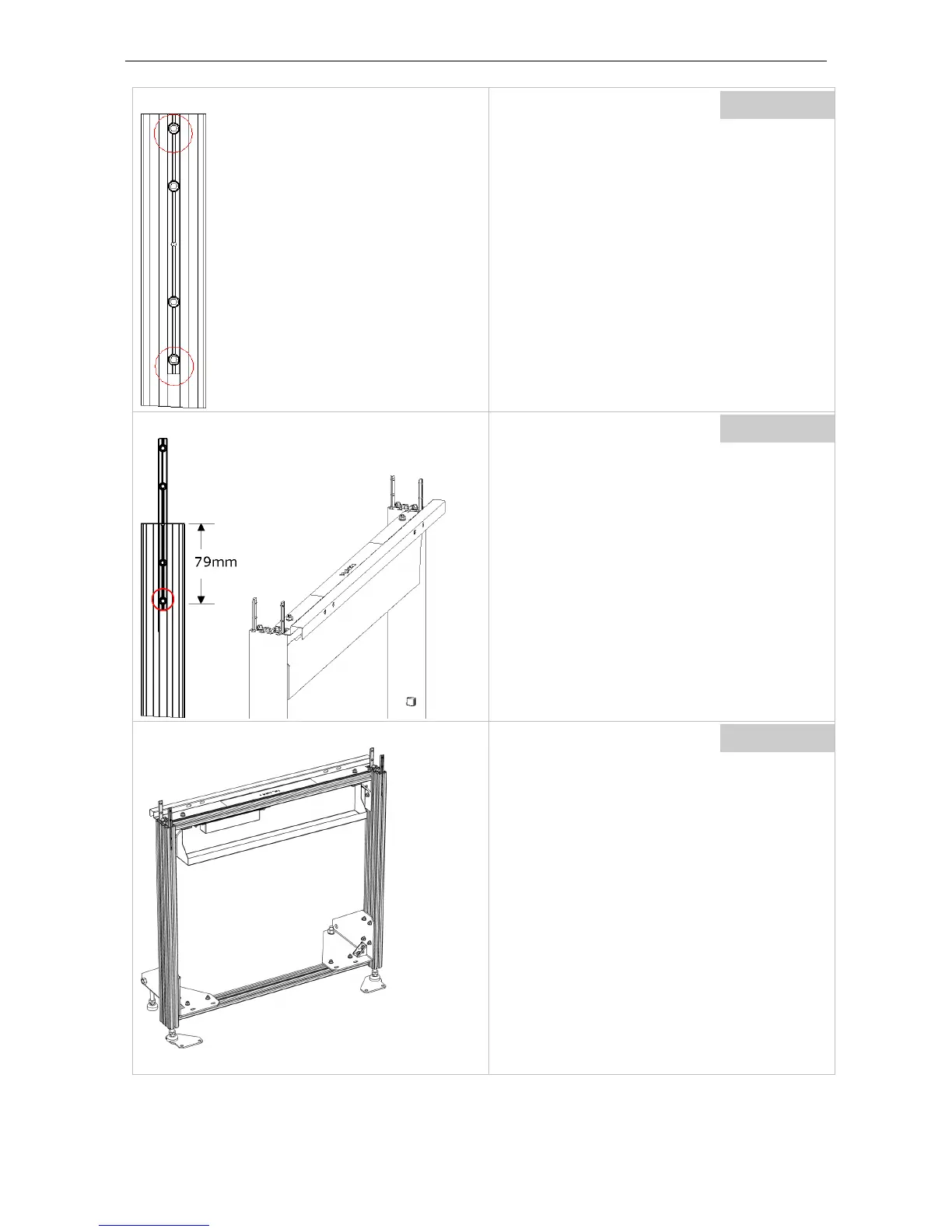

The vertical profiles come with T-bar connectors
attached.
These T-bar connect
ors are fixed with the top and
the bottom screw.
Pedestal
30
Loosen the headless screws and shift the T-bars
up until the bottom screw of the T-bar connector
matches the hole in the profile.
Fix the bottom screw of the T-bar connector to
the hole in the profile!
Please refer also to the connection concept, cf.
Connection concept
Pedestal
31
When the first pedestal has been mounted and
prepared like described in the previous steps,
also prepare all other pedestals of the configura-
tion like this!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
