Barco LCD 5521 V4 User Manual

5. Mechanical setup of display wall with pedestals
Pedestal
35

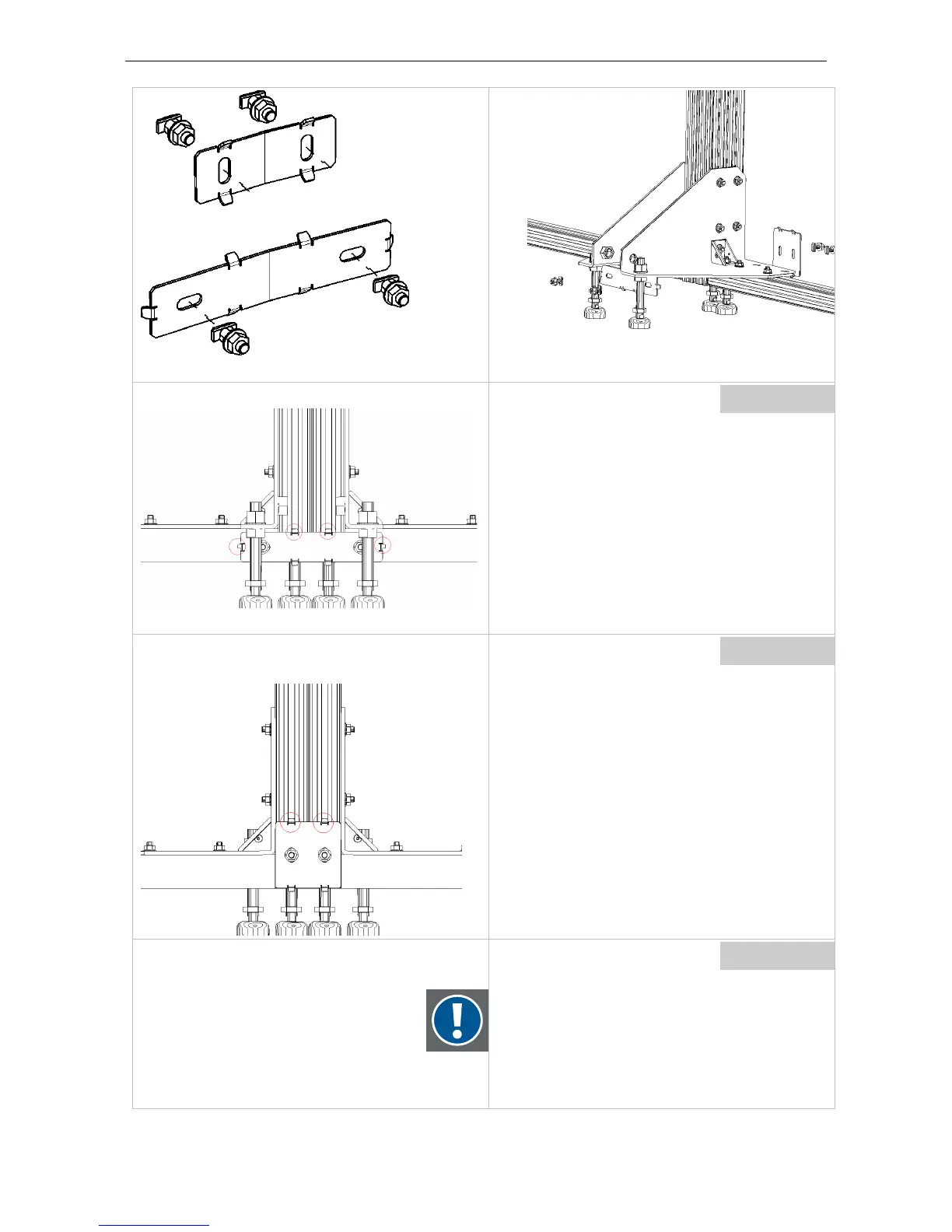

Start with mounting the front connection part.
Use two hammer bolts to fix it. Make sure that it
is properly aligned (smooth surface on the bot-
tom of the profile).
Make sure that the "noses" dig into the grooves
of the profile!
Pedestal
36
Fix the rear connection part using two hammer
bolts.
Make sure that it is properly aligned!
Make sure that the "noses" dig into the grooves
of the profile.
Pedestal
37
Make sure that all hammer bolts are properly
tightened! (Torque about 15 Nm for powder coat-
ed aluminum, 25Nm for alu corner brackets.)
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
_____________________________________________________________
42
