Barco LCD 5521 V4 User Manual

5. Mechanical setup of display wall with pedestals
Pedestal
38

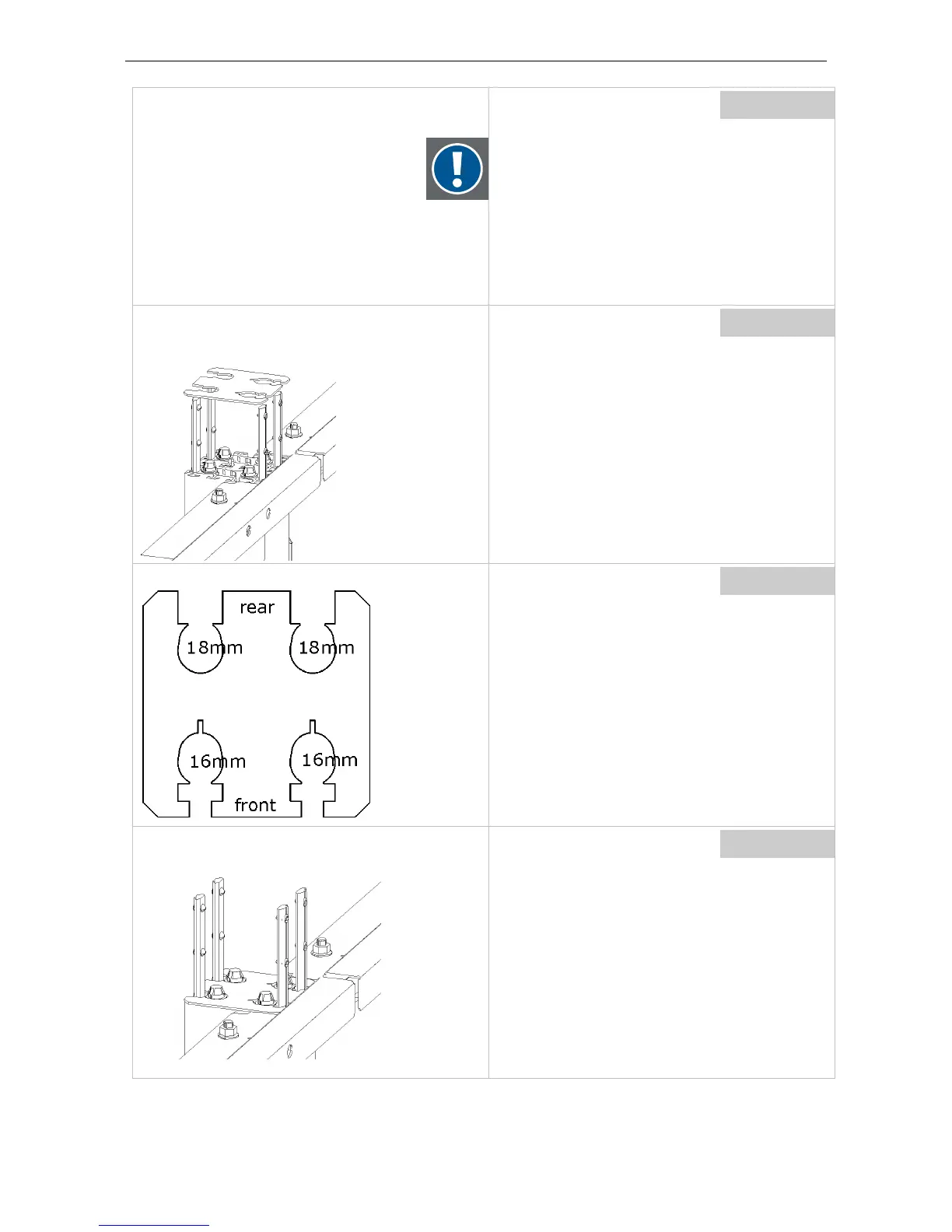

When the bottom connection has been made on
all pedestals, the top connection plates have to
be installed.
Installation of the top connection plates will be
needed also on all rows.
For installation of the top connection plates it is
mandatory that the pedestals are accurately lev-
eled!
Pedestal
39
R869697: connection part, 3 degrees
R869698: connection part, 5 degrees
R869699: connection part, 8 degrees
R869695: linear connection part
R869696: side part
Pedestal
40
Installation of the connection parts is done best
when standing in front of the structure.
Place the connection part over the centering pins;
start with sliding the rear part (bigger diameter)
over the rear centering pins.
Subsequently slide the front part over the front
centering pins.
To ease installation, the T-bar connectors still
need some play.
S
Pedestal
41
To ease installation, the T-bar connectors still
need some play.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
