8. Installation of the displays

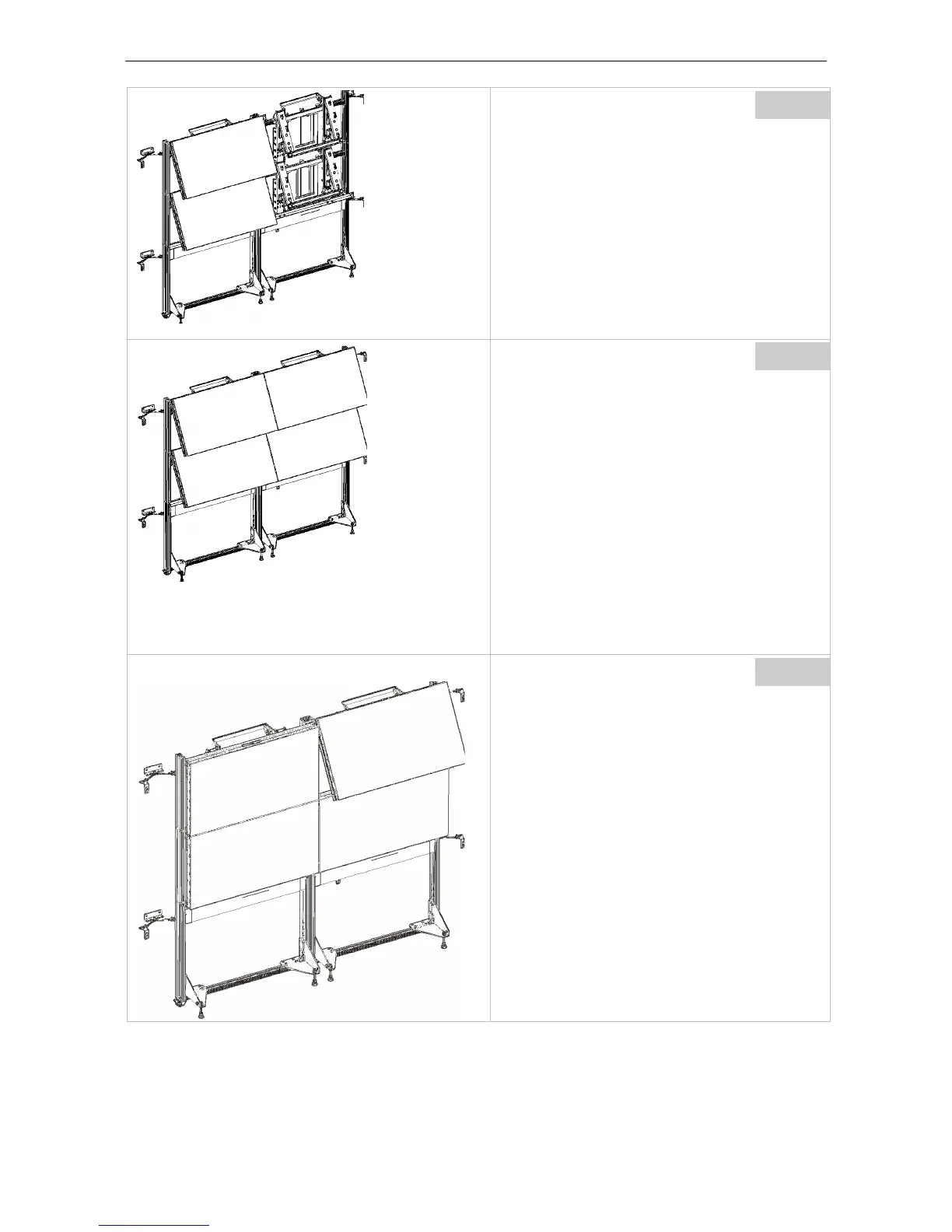

Step
27
Also when the monitor is installed, the interface
frame is NOT pushed back!
Step
28
Don't miss to plug in all cables.
On the rear of the front access mount module
there is a small mirror.
Look at the mirror to see the interfaces and to
conveniently plug in the cables.
On the rear of the monitor there is a row of
switches. Press the bottom switch to switch on
the monitor.
Step
29
Close the panels bottom up!
You can push the panels horizontally to
close the
gap.
Pushing can be done when the panels are open
or closed.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
