- Slow blinking amber: Display in suspend mode (requires DPMS mode to be enabled in the OSD menu,
see “DPMS mode”, page 23)
- Fast blinking amber: Display in standby mode (requires DPMS mode to be enabled in the OSD menu,
see “DPMS mode”, page 23)
- Steady amber: Display switched off via the standby key, or display in hibernate mode (requires DPMS
mode and Hibernate to be enabled in the OSD menu, see “DPMS mode”, page 23 and “Hibernate”,
page 24)
7. Ambient light sensor
8. Front sensor
Back
9
8
10
11
12
1 2 3 5 64 7

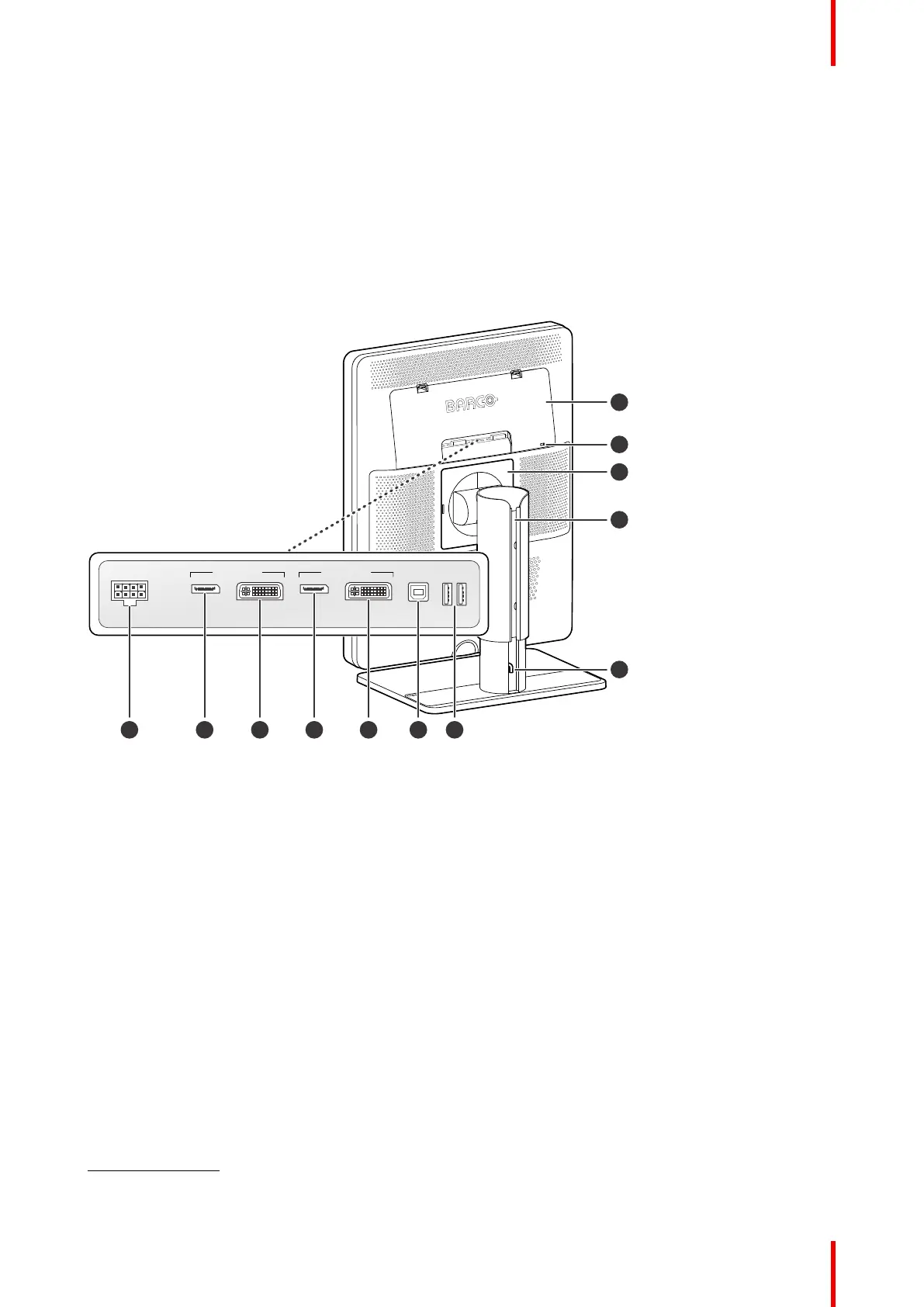

CHANNEL 2 CHANNEL 1
Image 1–2
1. +24 VDC power input
2. Channel 2 DisplayPort video input
3. Channel 2 DVI video input
4. Channel 1 DisplayPort video input
5. Channel 1 DVI video input
6. USB-B 2.0 upstream connector
1
7. USB-A 2.0 downstream connectors (2x)
8. Connector compartment cover
9. Kensington security lock
10.VESA mount cover plate
11. Cable duct
12.Foot lock clip
Welcome!
1. Always connect the display(s) to a USB 3.0 hub, or if unavailable, to a USB 2.0 hub but then no more than two displays can be
connected to the same hub.
