11K5902142 /04 Nio 5MP

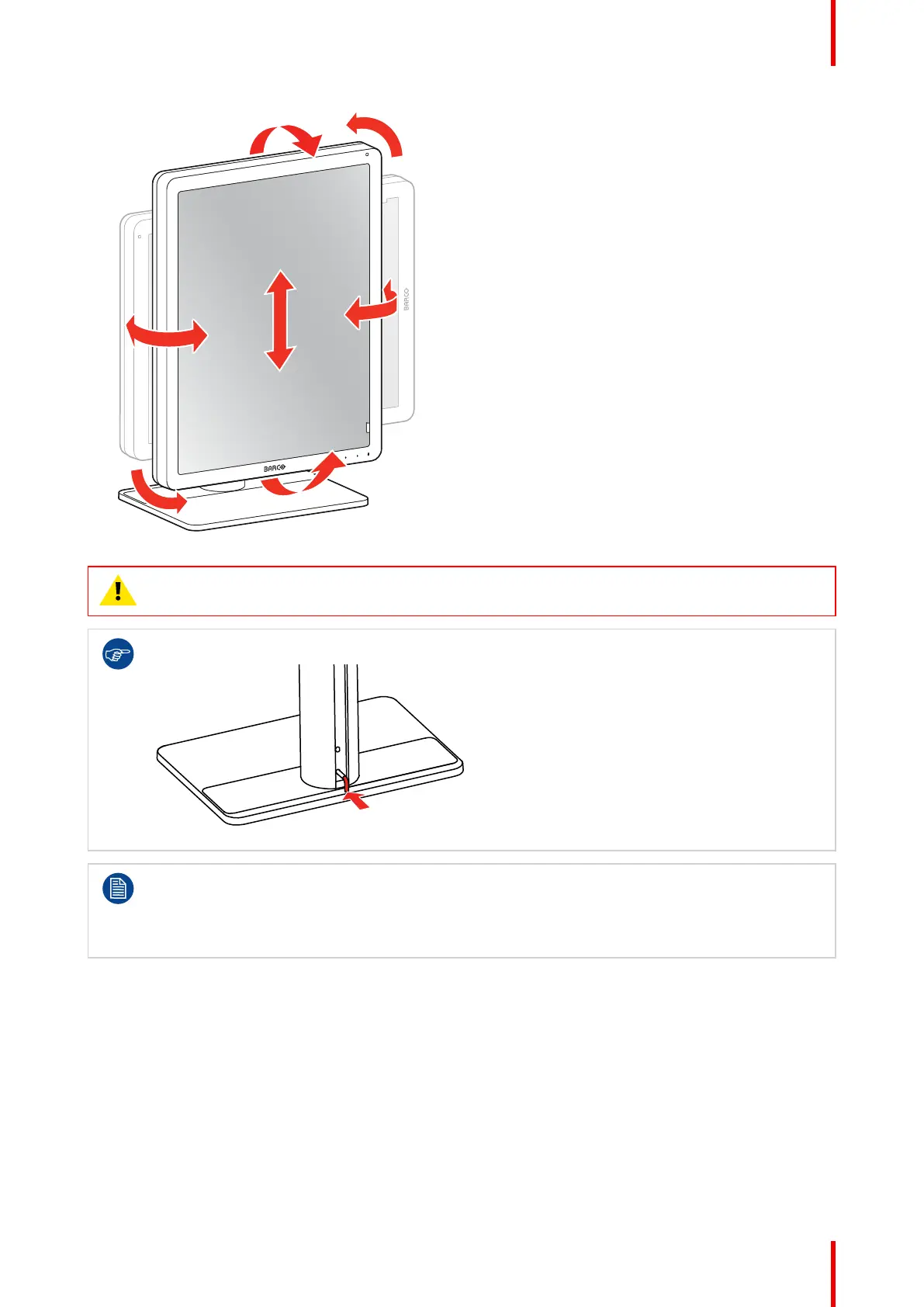

Image 2–2
WARNING: The display must be in its highest position before it can be properly pivoted.
Store the foot lock clip in the storage hole in case the display needs to be transported later.
Image 2–3
If, after installing the display of the system, you change the panel orientation while an image is on
the screen, the result depends on the graphic board and the resolution of the image. In some cases
the image will be rotated automatically, in other cases it will not be rotated (e.g., when pixels would
be lost after rotation). If necessary, change the image resolution in the display control panel and
restart the system after changing the orientation.
2.3 Cable connections
To connect the cables
1. Open the connector compartment. Do this by gently pushing the two lips on top of the cover, after which it
can be removed from the display.
