Barco MDSC-1119 Getting Started Guide

Introduction
20

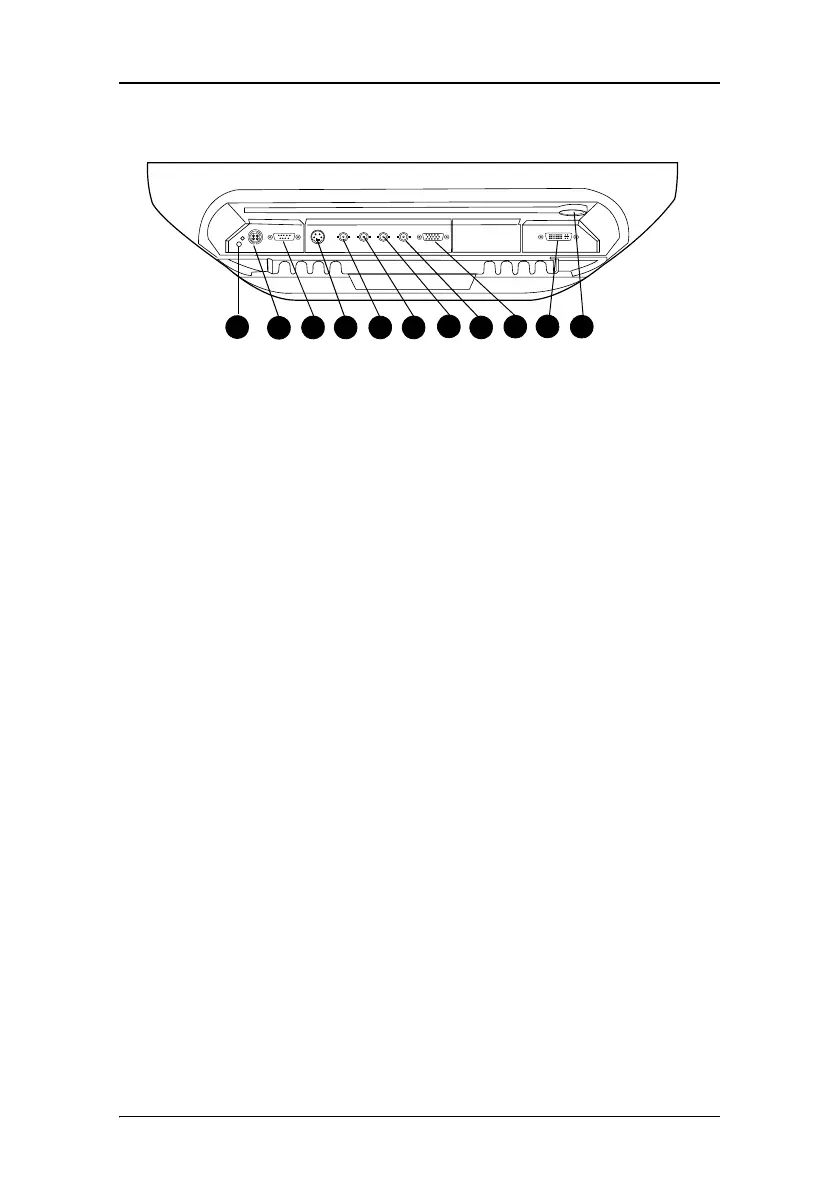

Standard connectors MDSC 1119
Figure 3: Connectors
1. General purpose input/output (GPIO) connector. Switches (max.2)
connected to this plug can have different functions: Switch inputs
or display a short text on the screen. This function can be selected
in the on-screen menus.
2. +24VDC power input.
Connect the output of the DC power supply delivered with the
display to this connector.
3. RS-232 connector.
4. S-VHS video input.
5. SDI connector.
6. Input B / CVBS3 / Pb / C.
7. Input G / CVBS2 / Y / Y .
8. Input R / CVBS1 / Pr.
9. VGA input.
10. DVI-I input.
11. Slot for security cable (e.g., Kensington lock).
1 2 3 4 5 6 7 8 9 10 11

Barco MDSC-1119 Specifications

Display Specifications

technology	TFT Active Matrix LCD
native resolution	1280 x 1024
active screen diagonal	19 inches
active screen area	14.8 x 11.9 inches
pixel pitch	0.294 mm
brightness	300 cd/m2
contrast ratio	700:1
viewing angle	178 degrees

Connectivity and Control

analog video inputs	1x universal 5BNC, VGA (DB15), S-Video (4-pin mini DIN), SDI (BNC)
digital video inputs	DVI-I
communication	RS232 (9-pin D-Sub)

Supported Resolutions and Formats

horizontal scan frequencies	15-100 kHz
vertical scan frequencies	50-120 Hz
bandwidth	165 MHz

Power Requirements

external DC power supply	90-264 VAC
display voltage	20-24 VDC
power consumption	80 Watt max

Physical Characteristics

display dimensions	427 x 356 x 81 mm
display weight	8 kg
mounting	75 & 100mm VESA
