Barco MDSC-1119 Getting Started Guide

Introduction
21
Selecting an input
Input selection can be done in 5 ways:
• Automatically, by means of the Source Scan system.
• By assigning a source priority.
• Quick input selection by using the general purpose switch.
• Quick input selection by using the navigation keys without
entering the OSD.
• Using the Input selection menu in the OSD.
These 5 possibilities are described in detail in the Online User Manual on
the product CD-ROM.
Standard connectors MDSC 2124

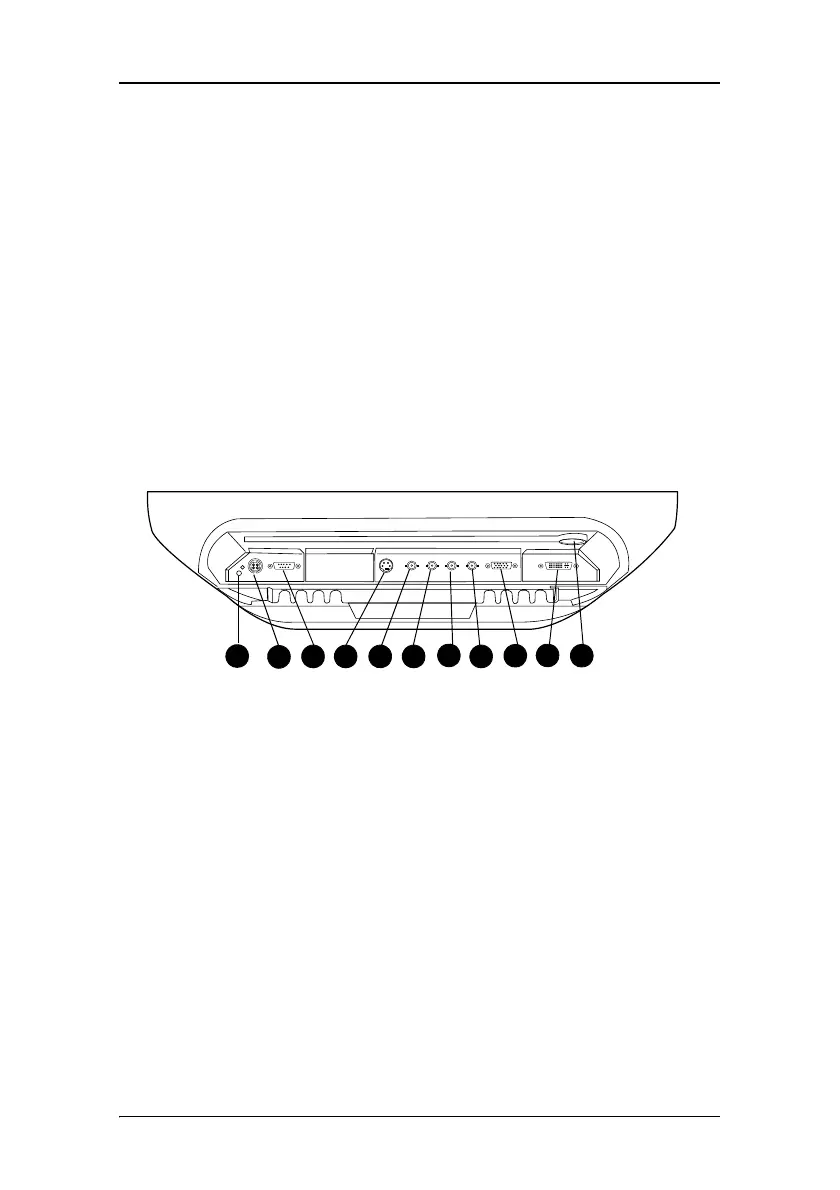

Figure 4: Connectors
1. General purpose input/output (GPIO) connector. Switches (max.2)
connected to this plug can have different functions: Switch inputs
or display a short text on the screen. This function can be selected
in the on-screen menus.
2. +24VDC power input.
Connect the output of the DC power supply delivered with the
display to this connector.
3. RS-232 connector.
4. S-VHS video input.
5. SDI connector.
6. Input B / CVBS3 / Pb / C.
1 2 3 4 5 6
7
8 9
10
11

Barco MDSC-1119 Specifications

Display Specifications

technology	TFT Active Matrix LCD
native resolution	1280 x 1024
active screen diagonal	19 inches
active screen area	14.8 x 11.9 inches
pixel pitch	0.294 mm
brightness	300 cd/m2
contrast ratio	700:1
viewing angle	178 degrees

Connectivity and Control

analog video inputs	1x universal 5BNC, VGA (DB15), S-Video (4-pin mini DIN), SDI (BNC)
digital video inputs	DVI-I
communication	RS232 (9-pin D-Sub)

Supported Resolutions and Formats

horizontal scan frequencies	15-100 kHz
vertical scan frequencies	50-120 Hz
bandwidth	165 MHz

Power Requirements

external DC power supply	90-264 VAC
display voltage	20-24 VDC
power consumption	80 Watt max

Physical Characteristics

display dimensions	427 x 356 x 81 mm
display weight	8 kg
mounting	75 & 100mm VESA
