Barco MDSC-8255 User Manual

K5902133 (451920612483)-02 MDSC-8255
12

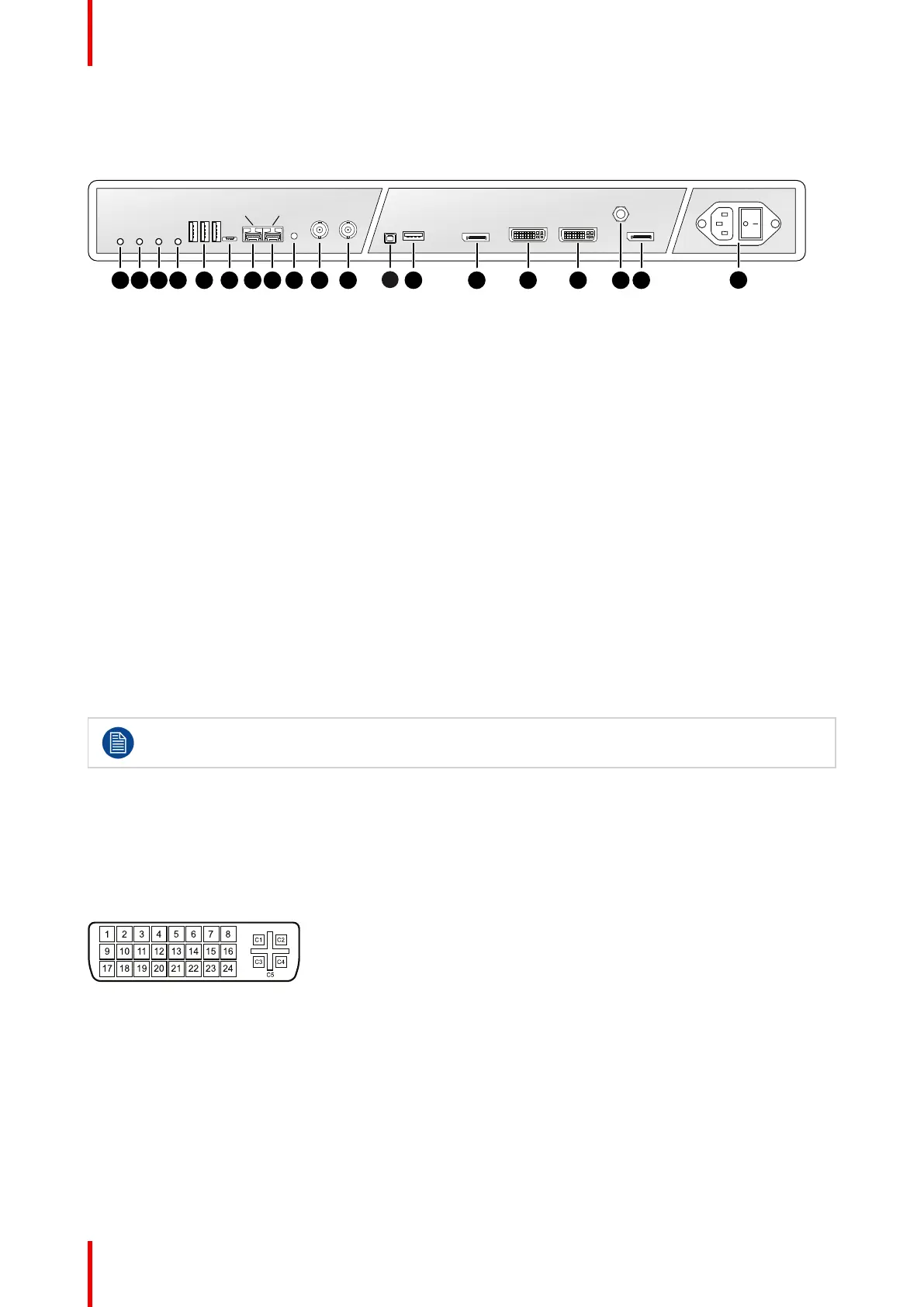

2.3.2 MDSC-8255 MNA version
Overview
11 5 13 1714 15 161096 8754321
Main
(1)
2nd
(2)
18
12
Image 2-4
1. Headphone out
2. Microphone in
3. Audio line out
4. Audio line in
5. USB 2.0 type A interface (4 x)
6. USB 2.0 micro-B interface (for service use only)
7. (2) Secondary SFP+ 10Gb optical Ethernet interface
8. (1) Main SFP+ 10Gb optical Ethernet interface
9. Identification button
10.SDI in
11. SDI out
12.+5 VDC – 2A power out
13.Main (Right) DisplayPort in
14.DVI-D in
15.DVI-D out
16.Potential Equalization pin (POAG)
17.2
nd
(Left) DisplayPort in
18.100-240 VAC (50-60 Hz) power in
Input and Output 1 to 9 are directly connected to the embedded Nexxis decoder.
2.4 Connector pin assignments
2.4.1 DVI connector (DVI-D)
Overview
Image 2-5
1. D2_Rx- (T.M.D.S.)
2. D2_Rx+ (T.M.D.S.)
3. GND (data 2 shield)
4. Not connected
5. Not connected
6. SCL (for DDC)
7. SDA (for DDC)
8. Not connected
Parts, controls and connectors

Barco MDSC-8255 Specifications

General

Brand	Barco
Model	MDSC-8255
Category	Monitor
Language	English
