2.2 Rear view

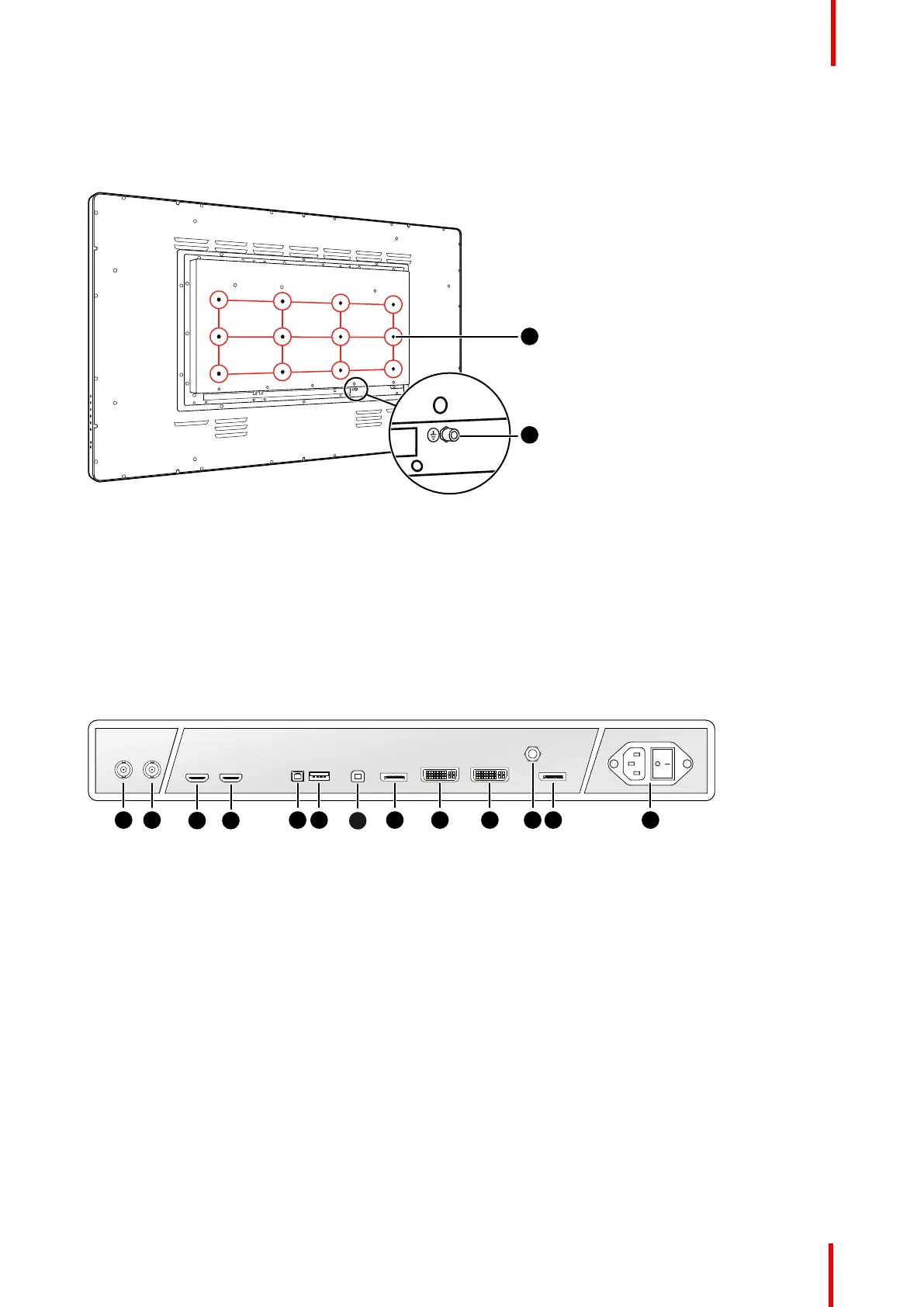

Overview
1
2
Image 2-2
1. VESA mount screw holes (VESA 200 mm and up)
2. Protective earth pin (for additional grounding)
2.3 Connector view
2.3.1 MDSC-8255 LED version
Overview
2 6 8 129 10 111 13
3 4
5
7
Image 2-3
1. SDI in
2. SDI out
3. HDMI2 2.0 in
4. HDMI1 2.0 in
5. +5 VDC – 2A power out
6. USB 2.0 type A interface
7. USB 2.0 micro-B interface
8. Main (Right) DisplayPort in
9. DVI-D in
10.DVI-D out
11. Potential Equalization pin (POAG)
12.2
nd
(Left) DisplayPort in
13.100-240 VAC (50-60 Hz) power in
