Barco MDSC-8255 User Manual

K5902133 (451920612483)-02 MDSC-8255
14
5. Not connected

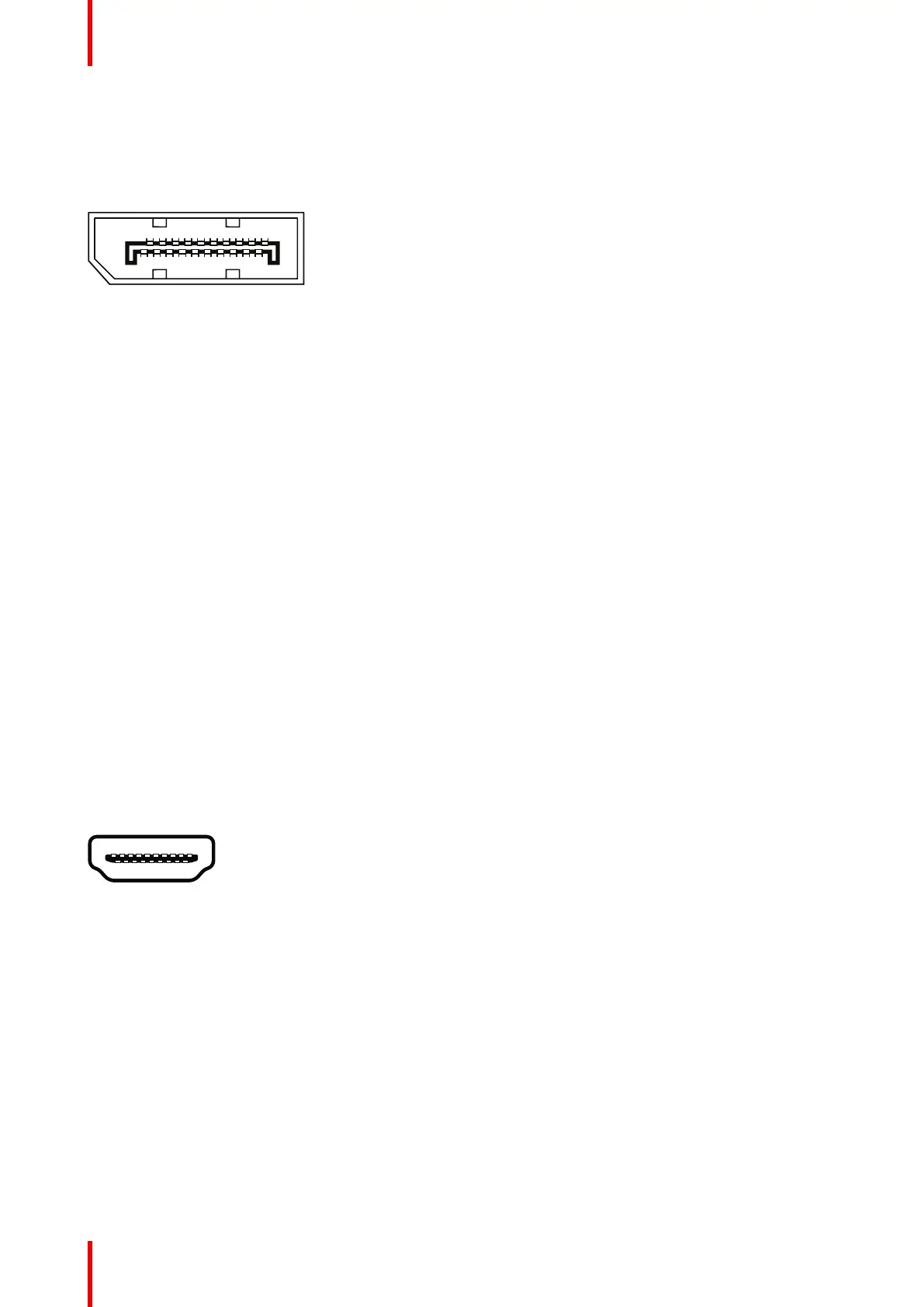

2.4.5 DisplayPort connector
Overview
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
Image 2-9
1. ML_Lane 0 (p)
2. GND
3. ML_Lane 0 (n)
4. ML_Lane 1 (p)
5. GND
6. ML_Lane 1 (n)
7. ML_Lane 2 (p)
8. GND
9. ML_Lane 2 (n)
10.ML_Lane 3 (p)
11. GND
12.ML_Lane 3 (n)
13.CONFIG1
14.CONFIG2
15.AUX CH (p)
16.GND
17.AUX CH (n)
18.Hot Plug
19.Return
20.DP_PWR (+3.3 VDC @ 500 mA max)
2.4.6 HDMI connector
Overview
1
24681012141618
35791113151719
Image 2-10
1. T.M.D.S. Data2+
2. T.M.D.S. Data2 Shield
3. T.M.D.S. Data2-
4. T.M.D.S. Data1+
5. T.M.D.S. Data1 Shield
6. T.M.D.S. Data1-
7. T.M.D.S. Data0+
8. T.M.D.S. Data0 Shield
9. T.M.D.S. Data0-
10.T.M.D.S. Clock+
11. T.M.D.S. Clock Shield
12.T.M.D.S. Clock-
13.CEC
Parts, controls and connectors
