Barco MDSC-8527 - HDMI Connector

R5914634 /00 MDSC-852710

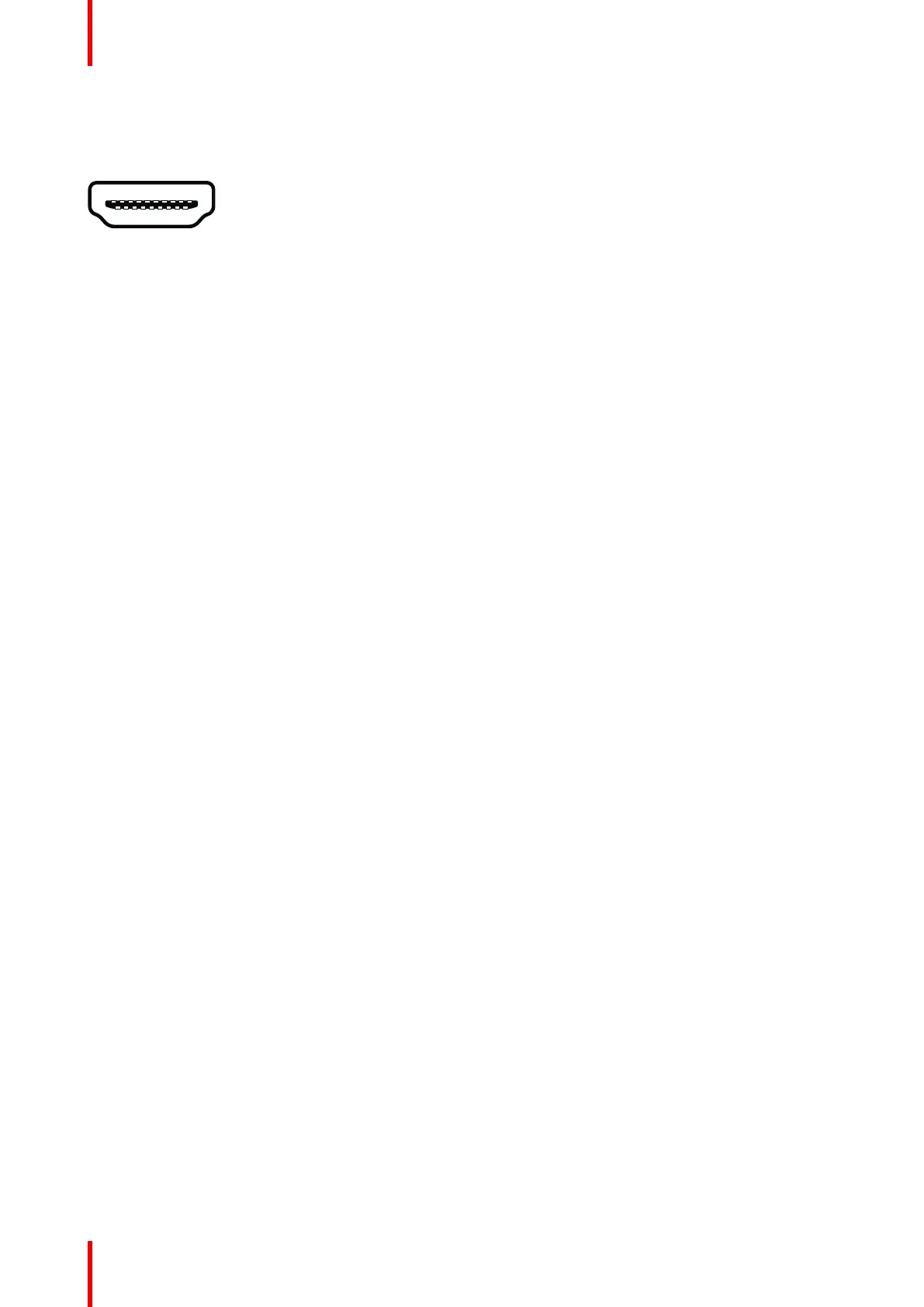

1.4.6 HDMI connector
Overview
1
24681012141618
35791113151719
Image 1–8
1. T.M.D.S. Data2+
2. T.M.D.S. Data2 Shield
3. T.M.D.S. Data2-
4. T.M.D.S. Data1+
5. T.M.D.S. Data1 Shield
6. T.M.D.S. Data1-
7. T.M.D.S. Data0+
8. T.M.D.S. Data0 Shield
9. T.M.D.S. Data0-
10.T.M.D.S. Clock+
11. T.M.D.S. Clock Shield
12.T.M.D.S. Clock-
13.CEC
14.Not connected
15.DDC_SCL
16.DDC_SDA
17.DDC/CEC GND
18.+5VDC POWER (in)
19.HDP
