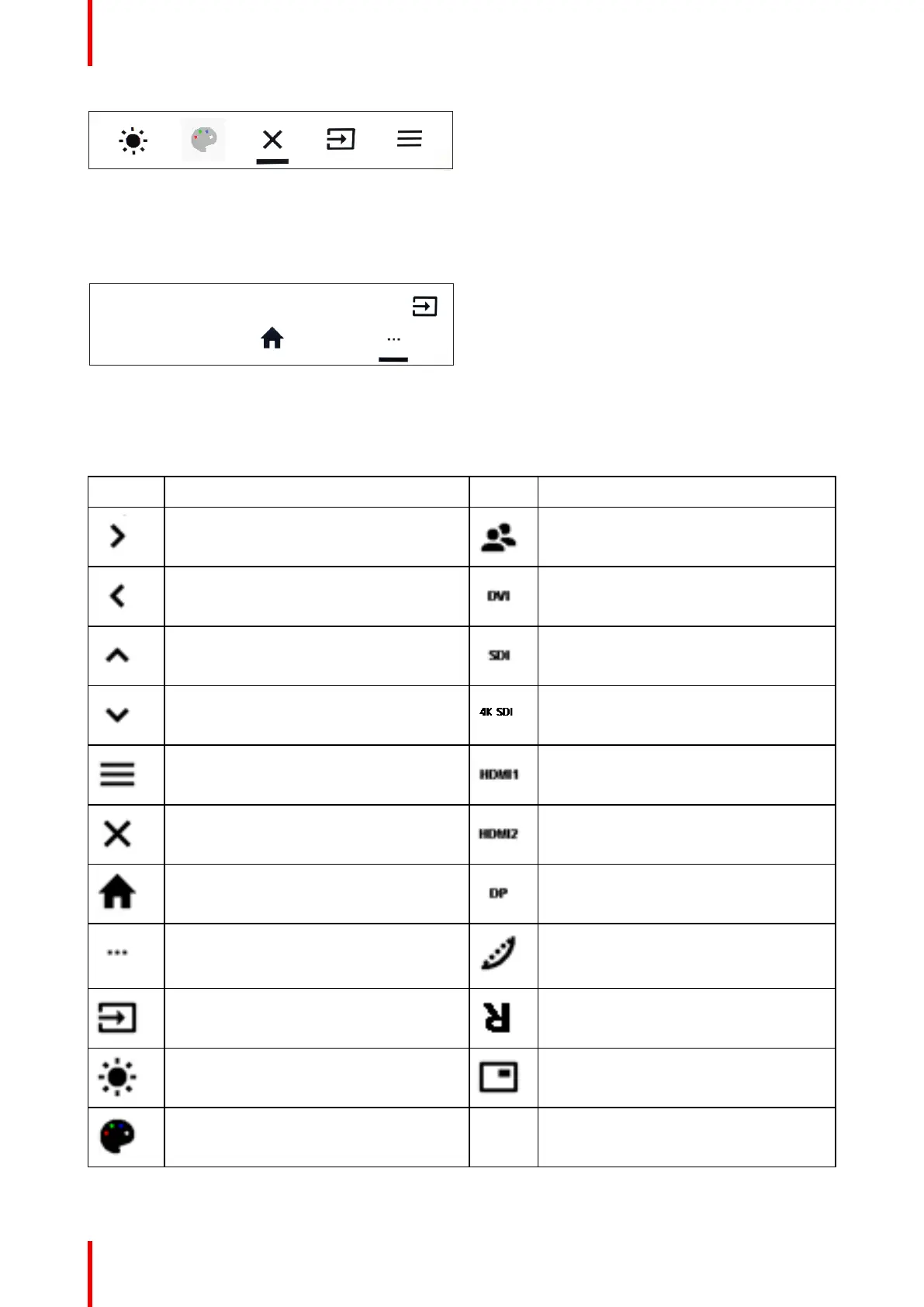

When front menu functions have a submenu (eg. Main source selection), the submenu will be opened as new
window on top of the front menu. The icon of the parent function and the currently selected option are shown
in the top right corner of the new window. When the number of selectable options is greater than 4, the “select
more” icon (...) will be visible and allows to see the remaining options.
Image 3–3
Front menu icons explained
Depending on where you are in the front menu and depending on the functions associated to the user keys,
the following icons can be visible:
Icon
Description
Icon
Description
Navigate right Select a profile
Navigate left Select DVI as the main input source
Navigate up Select SDI as the main input source
Navigate down Select 4K SDI as the main input source
Activate OSD main menu Select HDMI 1 as the main input source
Exit front/OSD menu Select HDMI 2 as the main input source
Exit the OSD menu and return to the front
main menu.
Select DisplayPort as the main input
source
Select more (when the number of
selectable options in the fron menu is
greater than 4)
Select a gamma preset
Select a main input source Enable/disable horizontal flip
Adjust the brightness level Select a Picture in Picture mode
Select a color space preset
Daily operation
