R5906113 /08 UDX 53

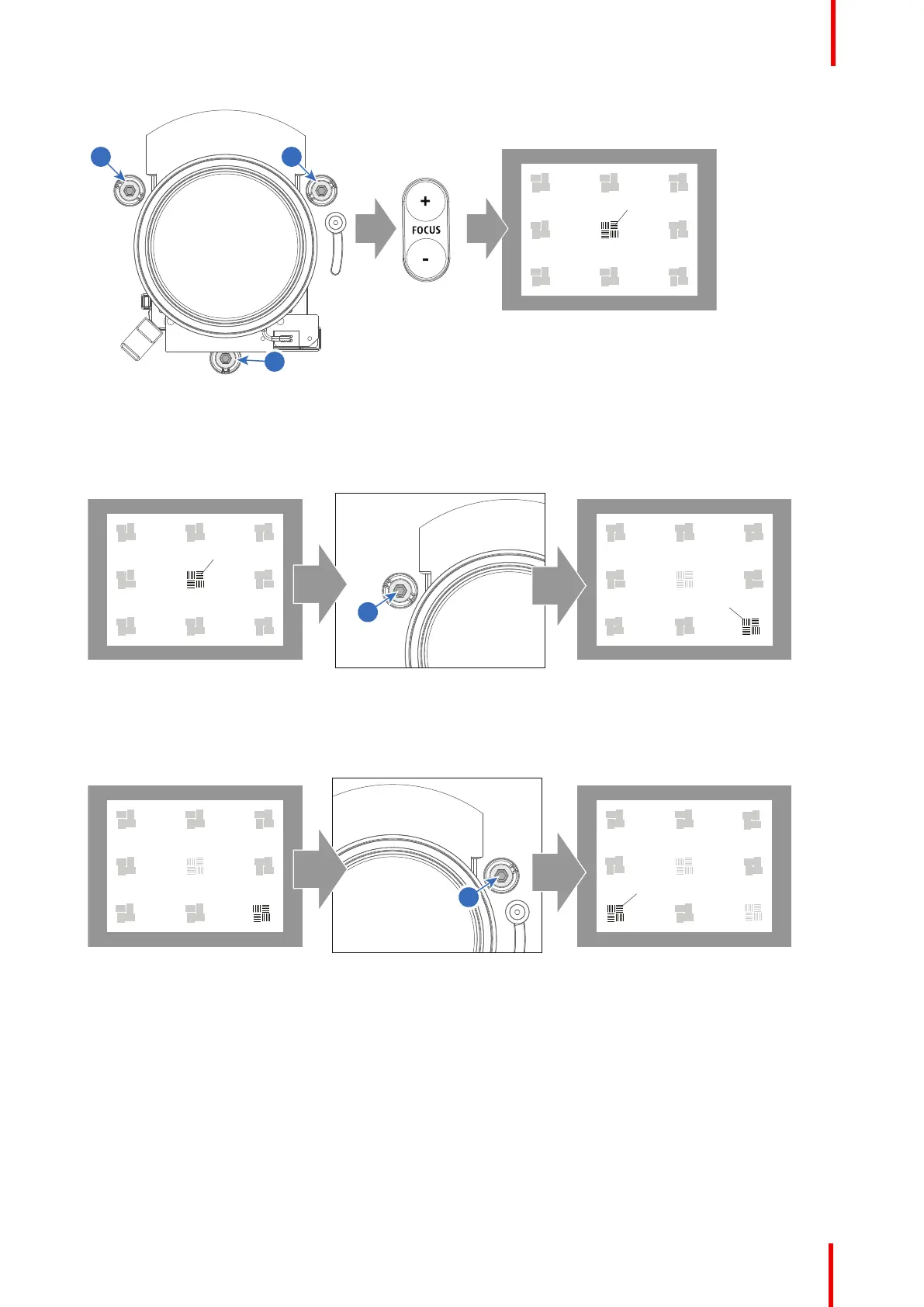

Image 5-20: Center focusing
Scheimpflug adjustment steps
1. Sharpen the image at the bottom left corner of the screen by turning the upper left Scheimpflug adjustment
screw either clockwise or counterclockwise (reference 1 Image 5-21). Use a 5 mm Allen wrench.
Image 5-21: Left bottom focusing
As a result of this action, the focus in the center will fade a bit. This is expected behavior.
2. Sharpen the image at the lower right corner of the screen by turning the upper right Scheimpflug adjustment
screw (reference 2 Image 5-22).
Image 5-22: Right bottom focusing
3. Sharpen the image at the top center of the screen by turning the lower Scheimpflug adjustment screw
(reference 3 Image 5-23).
