User Manual “Instreamer“ - V3.17 - 25th July 2011

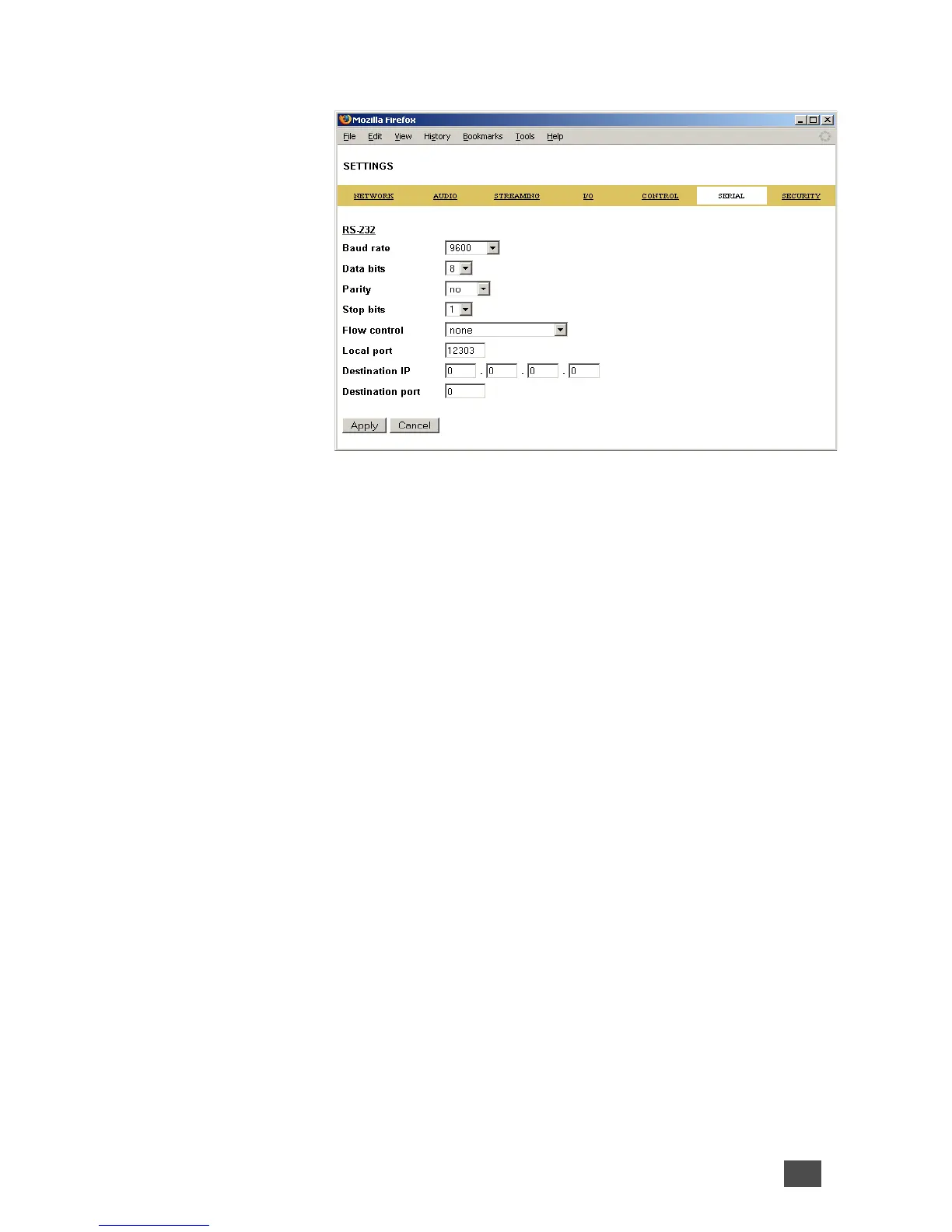

Baud rate
Select the serial transmission speed from “300” to
“115200” Baud (bits per second).
Data bits
Select “7” or “8” data bits.
Parity
Select “no”, “even” or “odd” parity.
Stop bits
Select “1” or “2” stop bits.
Flow control
Select the type of flow control: “none”, “Software
(XON/XOFF)” or “Hardware (RTS/CTS)”.
Local port
Defines the port on which the serial port can be
accessed for serial gateway application. Only when
“Local port” is set to "0" the serial port can be used
as a command interface.
Device Configuration 35
