5.4 Assembly
Before assembling the device, make sure you have all the components and documents.
Required
Tools:
POLARIS 1 x hex key 3 mm
(mounting clamps) 1 x slotted screwdriver
POLARIS
termination- 1 hey key 2,5 mm
compartments 1 x slotted screwdriver
POLARIS
PE-connection 1 x ring spanner 7 mm
5.4.1 Installation options
The POLARIS can be installed directly in:
– Enclosures
– Switch cabinet doors
– Operating consoles
The POLARIS series are mounted by fitting them into front panels, which can be done
with very little effort. On request, we supply the operating devices as ready-to-use system
solutions in stainless steel enclosures for mounting onto walls or floors.

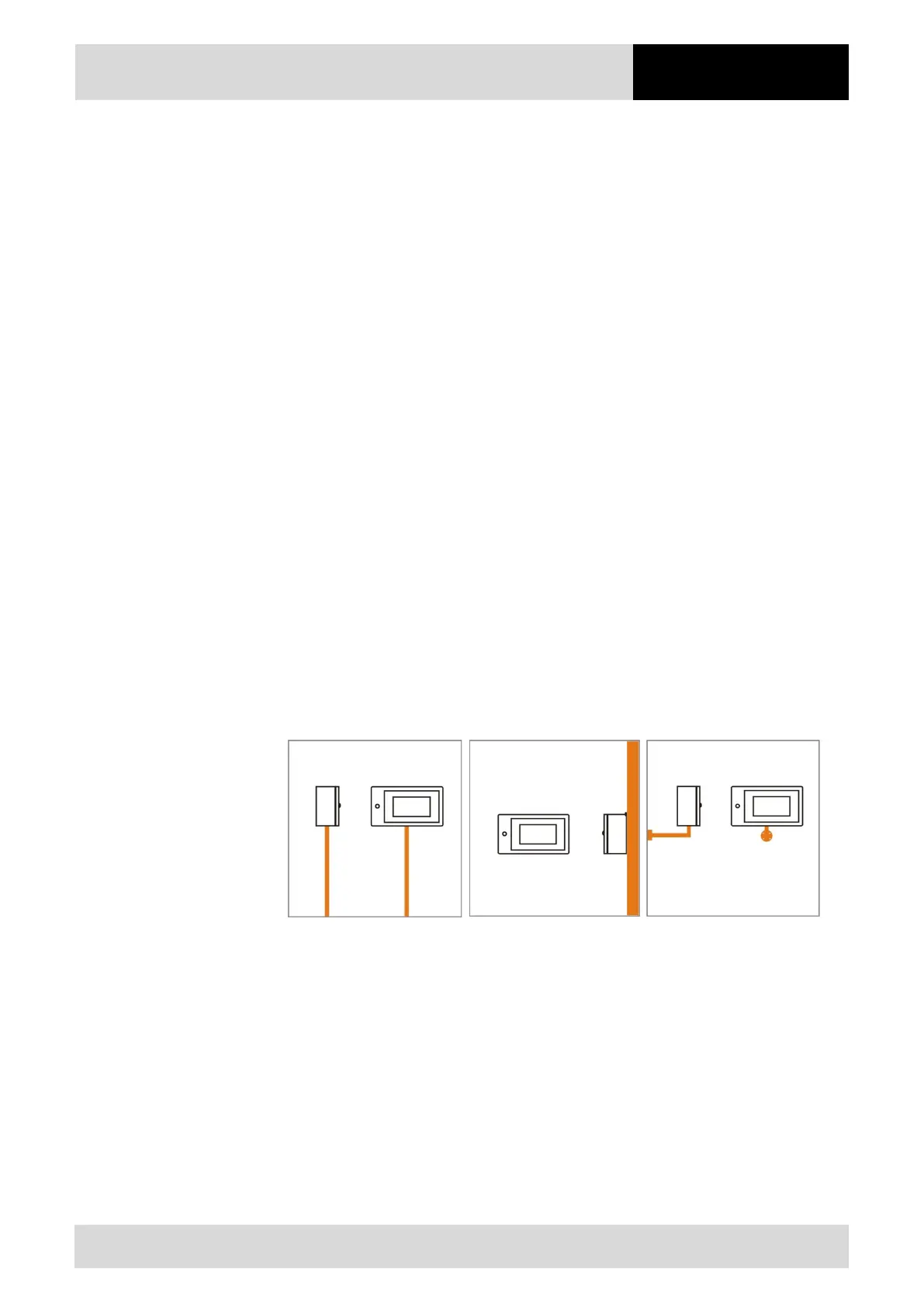

Illustration 6: Examples of floor and wall mounting
