Bartec POLARIS BASIC User Manual

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Installation
Technical data subject to change.
06/2017
EN 31/45

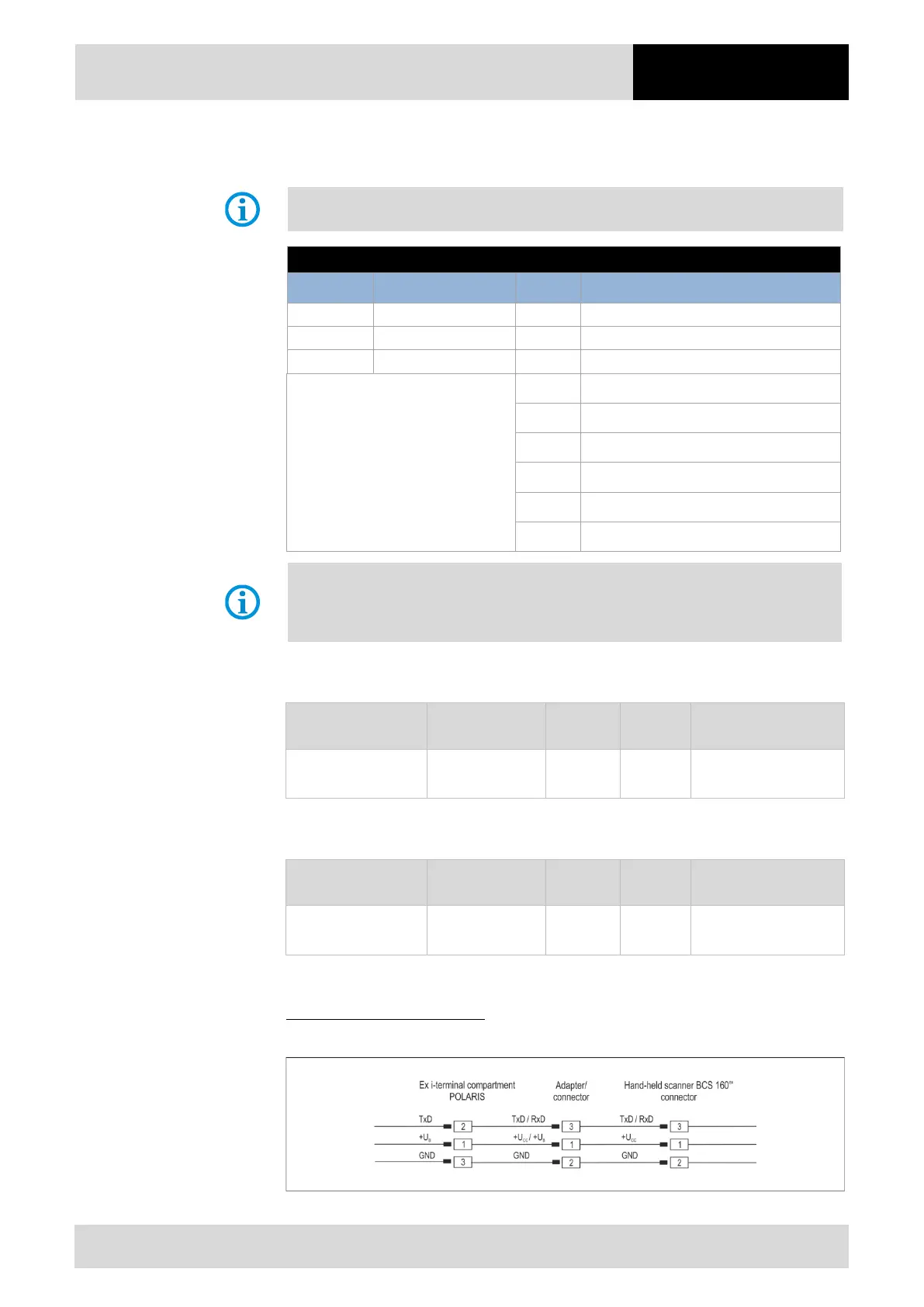

6.7.2 Connection of a BARTEC BCS 160
ex
hand scanner (optional)
Do not connect the hand scanner when there is an active power supply.
Configuration of hand scanner connection (optional)
Terminal Interface Signal Remarks
X1
Hand scanner
+UB
Supply voltage +5 V
X2
Hand scanner
RxD-I
Data input RS232-Signal
X3
Hand scanner
GND
Earth connected to protective ground
Intrinsically safe data and
supply current circuits
Terminal X1-X3
U
0
5.5 V
I
0
440 mA
P
0
1.25 W
R
i
25 Ω
C
0
55.8 µF
L
0
0.2 mH
The BCS 160
ex
hand scanner series can only be used with the original connection cable
from BARTEC. Not compatible is the hand scanner BCS 160
ex
with 1D/2D Imager
(Type 17-21BA-M31S/I0000000)
Connection cable to BCS 160
ex
Barcode hand scanner (pre-assembled)
Cable specified
for connection to:
Scanner cable Version Length
BARTEC
order no.
POLARIS supply
module
RS232/RS422
RS232/RS422
Smooth
spiral
1.8 m
3.8 m
17-21BE-M000/0000
17-21BE-M010/0000
Connection cable to BCS 160
ex
BT Bluetooth hand scanner (pre-assembled)
Cable specified
for connection to:
Scanner cable Version Length
BARTEC
order no.
POLARIS supply
module
RS232/RS422
RS232/RS422
Smooth
spiral
1.8 m
3.8 m
17-21BE-M020/0000
17-21BE-M030/0000
Terminal connection diagram
BCS 160
ex
hand scanner to supply module by means of connector/adapter.
