Bartec POLARIS BASIC User Manual

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Installation
Technical data subject to change.
06/2017
EN 29/45

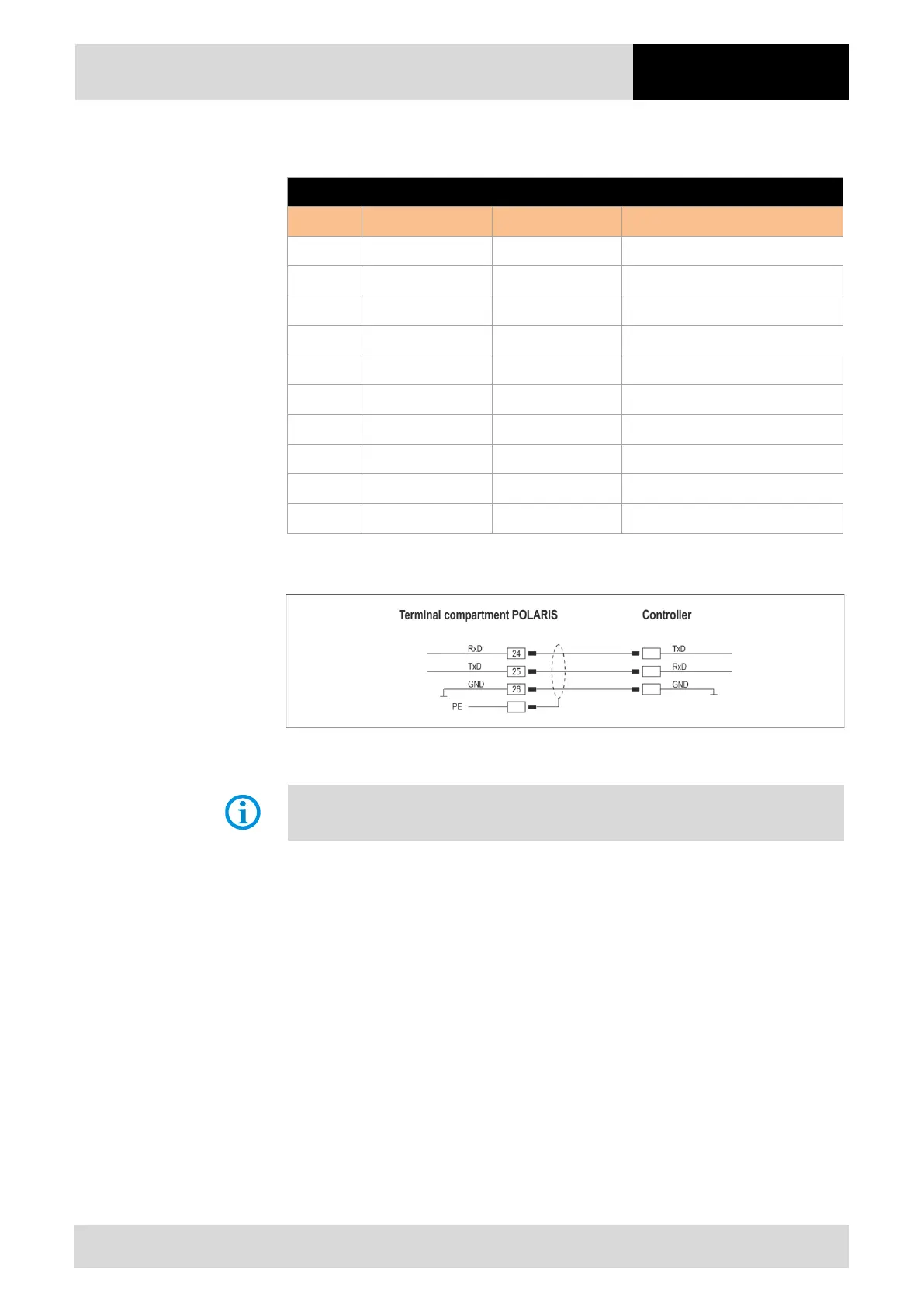

6.6.7 RS232 interface (optional)
Configuration RS232
Terminal Interface Signal Remarks
X17 Not connected
X18 Not connected
X19 Not connected
X20 Not connected
X21 Not connected
X22 Not connected
X23 Not connected
X24 Interface COM 1 RxD Receive
X25 Interface COM 1 TxD Transmit
X26 Interface COM 1 GND Signal ground
Connection of a controller via RS232 interface of the POLARIS.
Maximum length of the data line 15 m.
See the interface description from the controller manufacturer for the relevant pin
assignment of the controller.
