Bartec POLARIS BASIC User Manual

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Installation
Technical data subject to change.
06/2017
EN 25/45

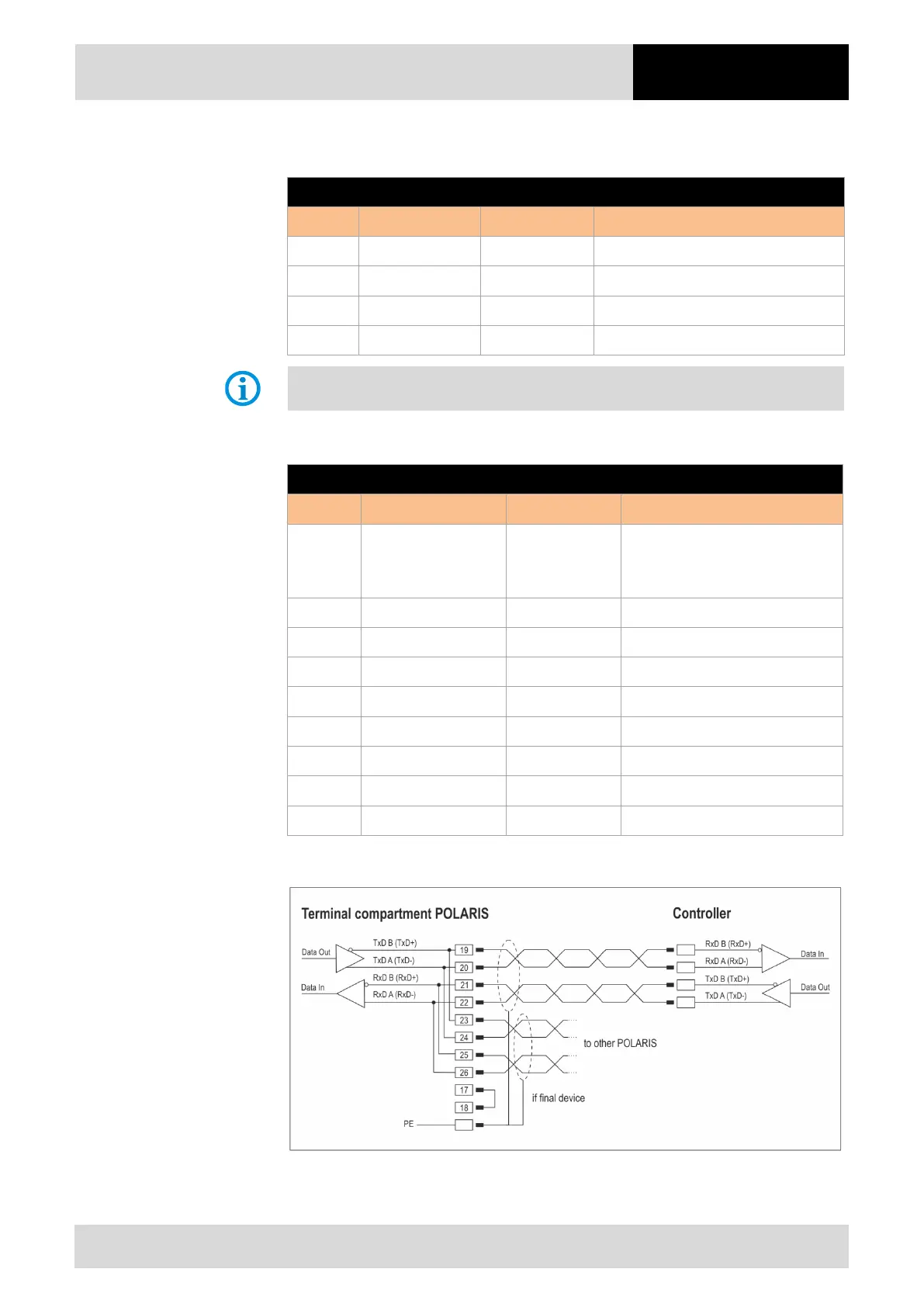

6.6.3 Ethernet terminal assignment
Configuration Ethernet 10BaseT
Terminal Interface Signal Remarks
X13 Ethernet RxD + 10BaseT Receive positive
X14 Ethernet RxD - 10BaseT Receive negative
X15 Ethernet TxD + 10BaseT Transmit positive
X16 Ethernet TxD - 10BaseT Transmit negative
The Ethernet 10BaseT interface is not supported by the software.
6.6.4 RS422/RS485 interface (optional)
Configuration RS422
Terminal Interface Signal Remarks
X17
X18
Termination On/Off
Jumper between terminal X17
and X18 for activation of the
terminator resistors
X19 Interface COM 1 TxD B (TxD+) Transmission cable Input
X20 Interface COM 1 TxD A (TxD-) Transmission cable Input
X21 Interface COM 1 RxD B (RxD+) Receiving cable Input
X22 Interface COM 1 RxD A (RxD-) Receiving cable Input
X23 Interface COM 1 TxD B (TxD+) Transmission cable Output
X24 Interface COM 1 TxD A (TxD-) Transmission cable Output
X25 Interface COM 1 RxD B (RxD+) Receiving cable Output
X26 Interface COM 1 RxD A (RxD-) Receiving cable Output
RS422 connection mode (full duplex)
Maximum length of the data line 1,000 m.
