Installation
POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 18/45
Technical data subject to change.
06/2017
DANGER
If there is no reinforcement frame, it will not be possible to maintain the
IP protection. There is a risk of fatal injury in an explosive atmosphere!
Only use enclosure with at least 2 mm wall thickness.
Insert the reinforcement frame between the holder and the enclosure.
Reinforcement frame for maintenance of Protection Class IP65
Fit the reinforcement frame

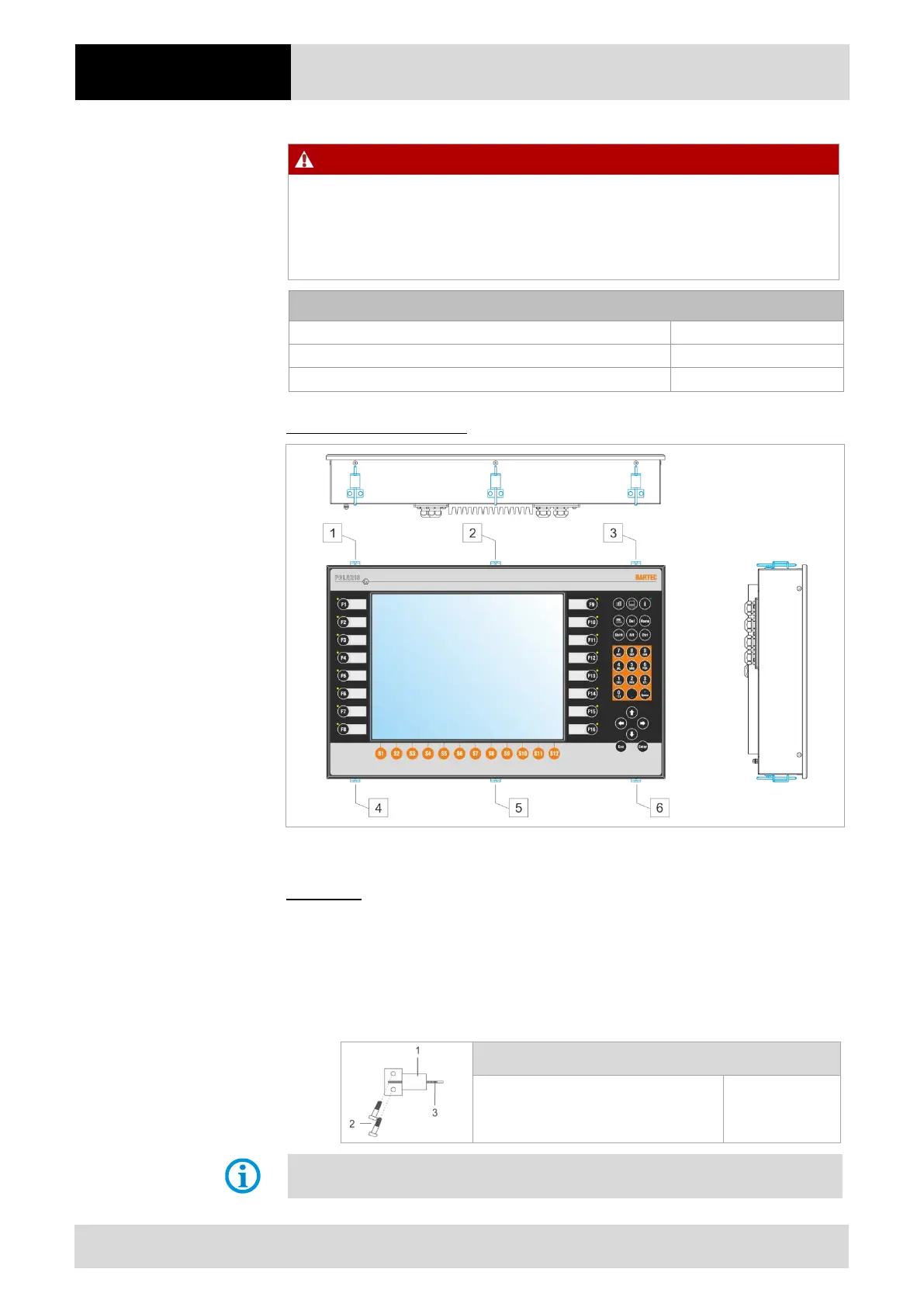

Illustration 7: Minimum installation depth and mounting reinforcement frame
Work steps
(1) Insert the POLARIS into the cut-out in the enclosure.
(2) From the back, place the reinforcement frame over the POLARIS.
(3) Using the M4x12 (2) screws to fasten the mounting clamps (1) to the rear side of
the POLARIS and tighten to 1.37 Nm.
(4) Tighten the clamping screw (3) of the mounting clamps to a torque of 1.02 Nm.
Number of retaining claws
POLARIS BASIC 5.7" / 10.4" / 12.1" 6 pieces
Always tighten the mounting clamps crosswise.
