9.3. Setting the sensor parameters
Software area Induction Line
ATTENTION!
Warning regarding the incorrect setting of
RLAnet parameters
Set parameters must match the installed
components of the system.
Please note the sensor length and number of
sensors.
For an accurate locating function, it is important to set the Induction Line Length and Black Line parameters to match the data from the
sensor connected to the RLA
net
.
The application parameters of the connected sensor (connection/length) are:
Induction line length: ___ m
Black line: ___ ohms
Example 1:
A 30 m long SCR sensor cable is connected.
(Rating of SCR: 6.0 ohms/m)

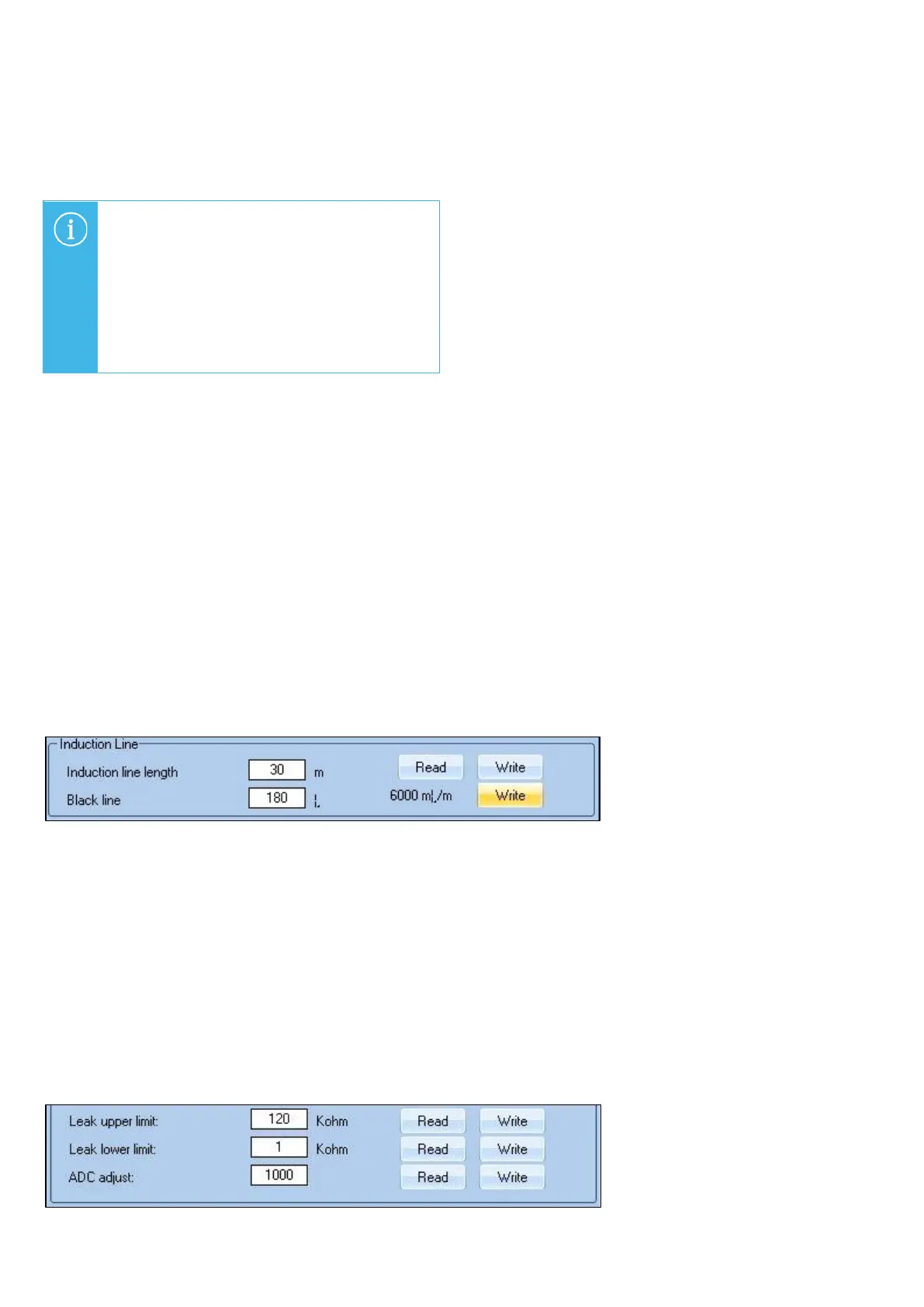

Induction line length: 30 m; click the "Write" button.
Black line: 180ohms (30m * 6.0ohms/m = 180ohms); click the "Write" button.
The following nominal value is displayed as a result of the RLA
net
's internal calculation: 6000 mohms/m
Example 2:
Connection of a 30 m long SCR sensor cable and 2 point sensors PS in series
(Rating of SCR: 6.0 ohm/m)
(rated value of the PS: 60 ohms, corresponds to 10 m)
Induction line length: 50m (30m + 2*10m); click the "Write" button.
Black line: 300 ohms (30m*6.0 ohm/m + 2*60 ohms = 300 ohms); click the "Write" button.
The following nominal value is displayed as a result of the RLA
net
's internal calculation: 6000 mohm/m
The following parameters remain in the factory setting.
