11-85G5-7D0002/B-EHT-10/2021 21

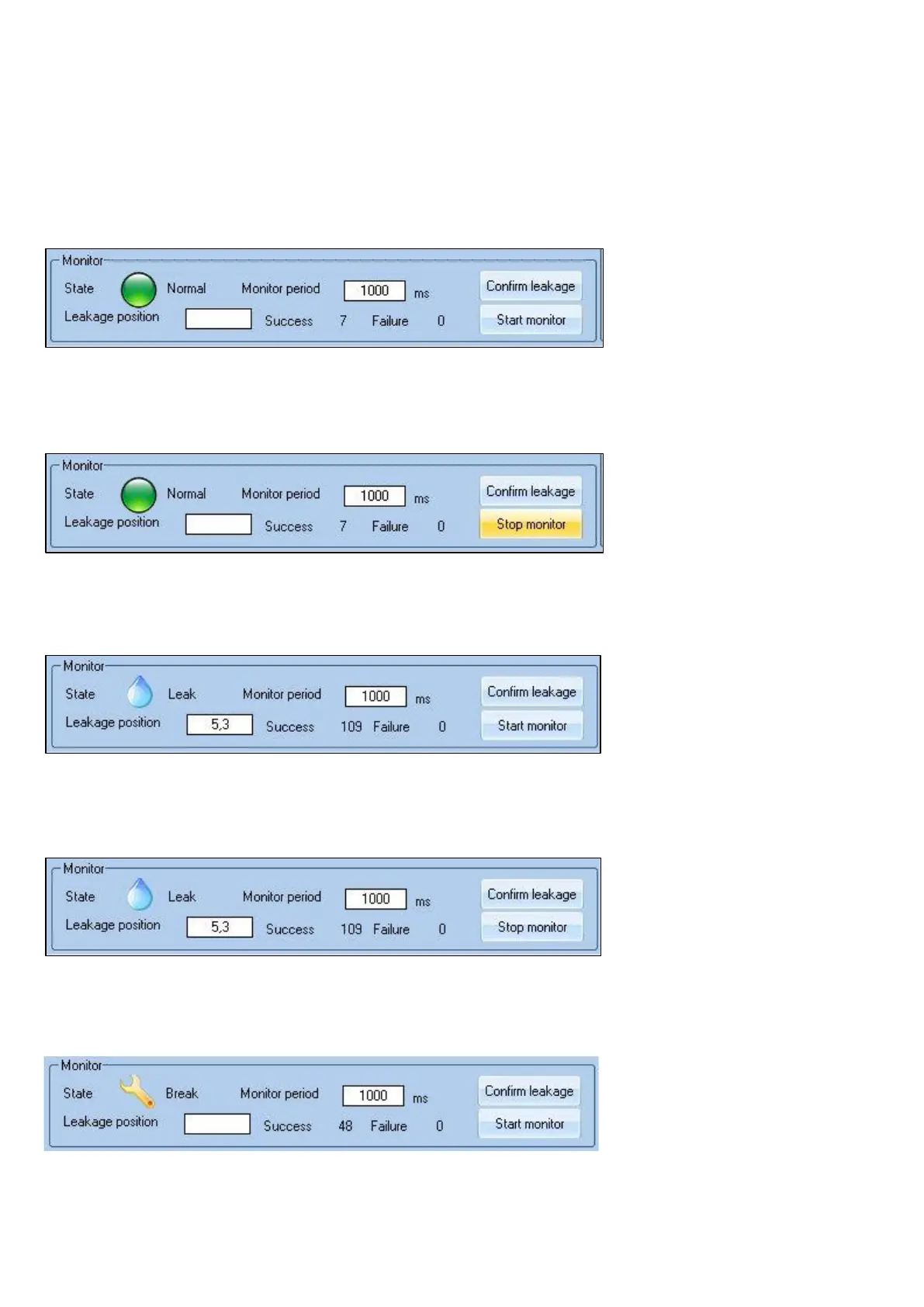

10. Operating states
10.1. Operating state Normal
Click the "Start monitor" button to start the monitor mode.
The Normal state indicates that no leak has been detected along the sensors and that there are no faults in the sensor wiring.
The value of the "Success" counter increases.
Click the Stop monitor button to exit the monitor mode.
10.2. Operating state Leak
Click the "Start monitor" button to start the monitor mode.
The "Leak" state indicates that a leak has been detected along the sensors.
The leak is displayed in the "Leakage position" field with an accuracy of 1 meter.
Click the Stop monitor button to exit the monitor mode.
10.3. Operating state Service/Break
Click the "Start monitor" button to start the monitor mode.
The “Break” state indicates that there is a problem with the sensors or the sensor wiring.
Click the Stop monitor button to exit the monitor mode.
