Configuring the Camera AW00097209000
46 Basler IP Fixed Box Cameras
Email From - Enter an email address to appear as the sender’s address in the email sent by the
camera. You can use the variable $hostname$ as part of the address, and the variable will be
replaced with the camera’s actual host name.
HTTP Tab
The camera will automatically add the following parameters to the end of the URL:
host=<hostname> = the camera’s host name, typically something like this: "Basler-20809681"
date=<date/time> = the date and time when the alarm has been declared, e.g.:
"2012-01-03 16:30:41 CEST".
(How to set the date and time format and the time zone, see Section 3.11.2 on
page 72.)
ts=<timestamp> = time in sec:µsec since 1 Jan 1970, 0:00:00 GMT, when the alarm has been
declared, e.g. something like this: "1330342430.625201"
nr=<alarm number> = the number of the alarm, e.g. "2".
Source_User=<boolean> = if the user is the source that has declared the alarm, the value is set to
"1", otherwise to "0".
Source_PIO=<boolean> = if the camera I/O ports are enabled as a source for declaring an alarm
condition and an active signal becomes present on a camera I/O port,
the value is set to "1", otherwise to "0".
Source_Motion=<boolean> = if motion detection is enabled as an alarm source and motion is
detected, the value is set to "1", otherwise to "0".
Source_Cyclic=<boolean> = if the cyclic alarm source has been enabled to declare a recurrent
alarm, the value is set to "1", otherwise to "0".
Source_Heartbeat=<boolean> = if the heartbeat missing alarm source has been enabled and a
heartbeat timeout occurs, the value is set to "1", otherwise to "0".
If motion detection is enabled as an alarm source and motion is detected, the camera will
automatically add the following parameters to the end of the above mentioned parameters.
MotionDetected=<boolean> = if motion has been detected, the value is set to "1".
MotionRegion_0=<boolean> = if motion has been detected in motion detection region 0, the value
is set to "1", otherwise to "0".
MotionLevel_0=<motion level> = current motion level (number of changed pixels) in region 0.

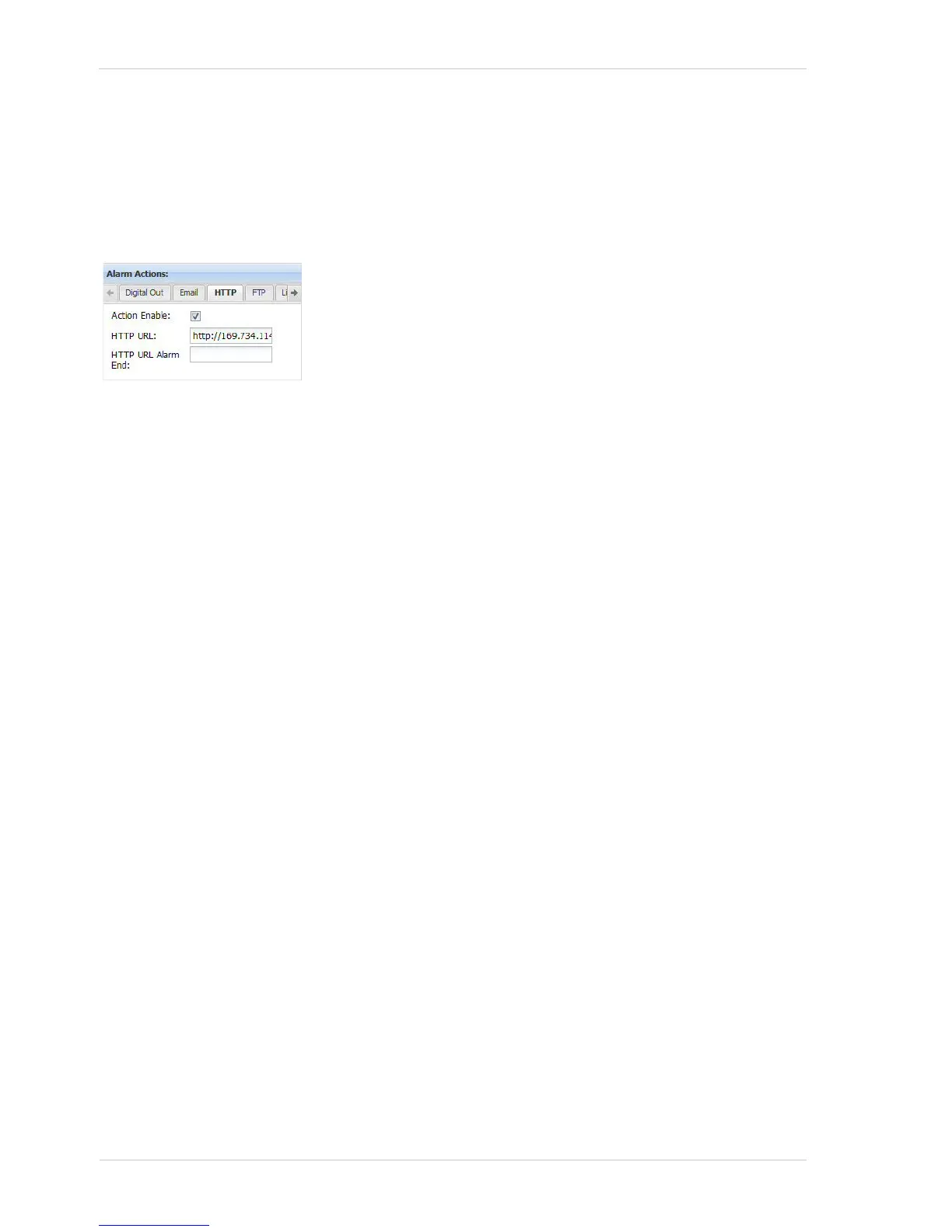

Action Enable - Check the Action Enable box on the HTTP tab to
enable the sending of an HTTP request as an action to take when
an alarm condition is declared.
HTTP URL - Enter a valid URL. You could, for example, enter this
request: http://MyServer/cgi-bin/alarm.cgi
The transmitted string will be URL encoded.
