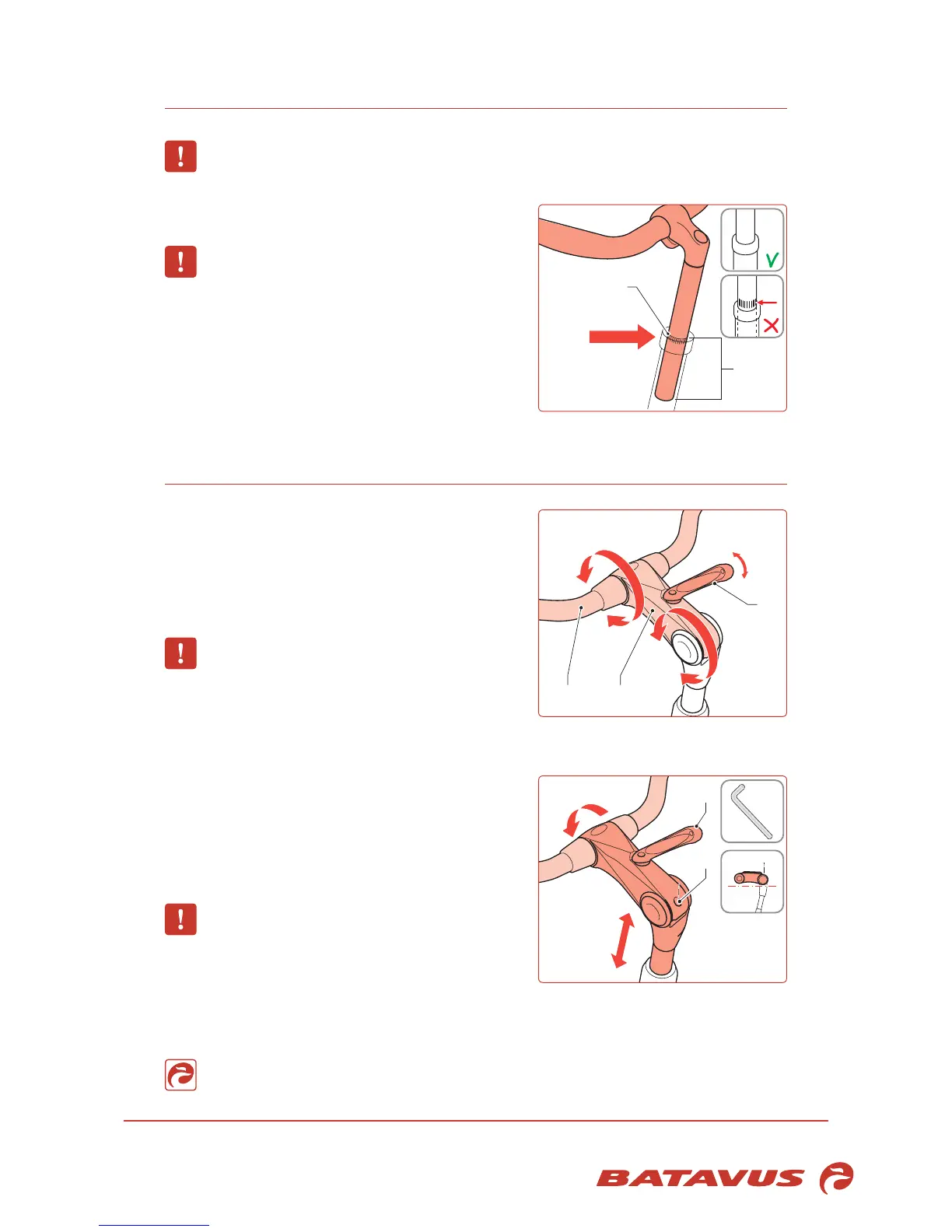

Adjustment, general6.1
Check whether the brake and the shifter cables are not too tight and make sure that the
cables are not pinched. This may affect the shifting, braking and steering.
Safety mark
Do not adjust the height beyond the safety mark
(A). The saddle post must be inserted in the
frame tube for more than 7 cm.
Make sure that the handle bars are straight with
respect to the front wheel.
Adjust handle bars of Batavus Ergo Matic6.2
Tilting of the stem/handle bars
1. Loosen the handle (A) clockwise. With this both
the tilting of the stem and the handle bars can be
adjusted in one operation.
2. Tilt the stem (B) and the handle bars (C) to the
required position.
Make sure that the handle bars are exactly in the
middle.
3. Turn back the handle after having made the
adjustment..
Height of the stem
1. Loosen the handle (A) clockwise.
2. Tilt the stem in a horizontal position.
3. Loosen the bolt (B) a few turns. Use a socket head
wrench with a long handle for this.
4. Set the height of the stem.
Watch the max. mark on the stem.
5. Tighten the bolt.
6. Turn back the handle after having made the
adjustment.
Set the clamping force of the handle
Caution:consultthedealerwhenyounoticeanymovementinthehandlebarswhenget-
ting on or off the bicycle. The dealer can adjust the clamping force.
7 cm
A
MAX
1
C B
A
1
B
A
1
