Front lighting11.

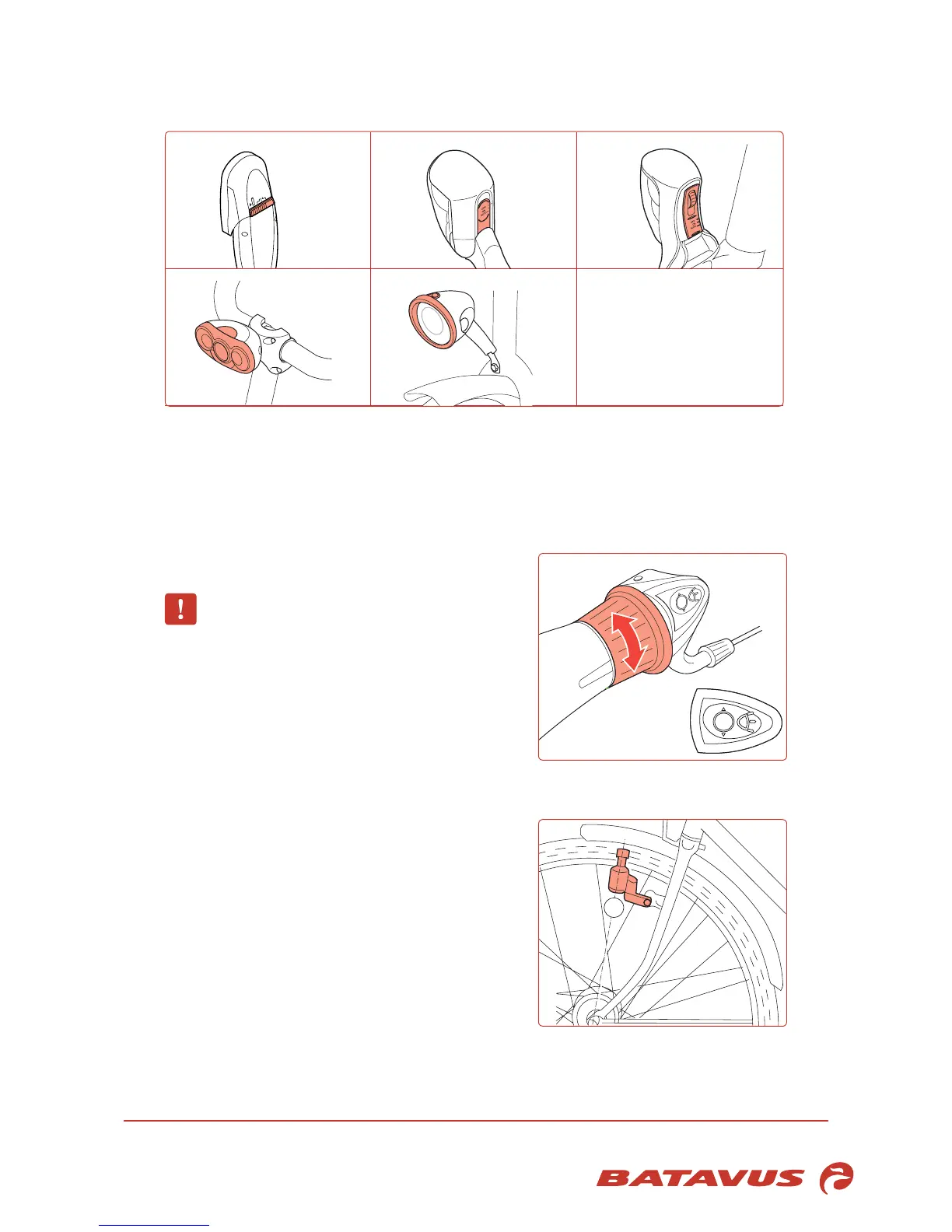

Head lamp types
OFF AUTO ON
A B C
D E
A Hybrid head lamp on batteries (see 11.1)
B HalogenorLED(on/off/autoswitchonthe
head lamp) through (hub) dynamo (see 11.2)
C Headlampintegratedinthefork(on/off/auto
switch on the back of the head lamp) through
hub dynamo (see 11.3)
D Headlamp(on/offswitchontheheadlamp)
with batteries (see 11.4)
E Headlamp(on/offswitchonheadlamp)
through (hub) dynamo (see 11.5)
Dynamo switch
Some models have a dynamo switch on the
handle bars.
Dynamo
Make sure that the grooves on the dynamo touch •
the side of the tyre as completely as possible.
Make sure that the centre line (A) of the dynamo •
runs through the wheel shaft.
When the dynamo is off, the space between the •
dynamo and the tyre must be 5 - 10 mm.
