4.3.2.3.3 Center Aligned
A compromise between left and right aligned. The hysteresis is aligned symmetrical around the individual
setpoints.

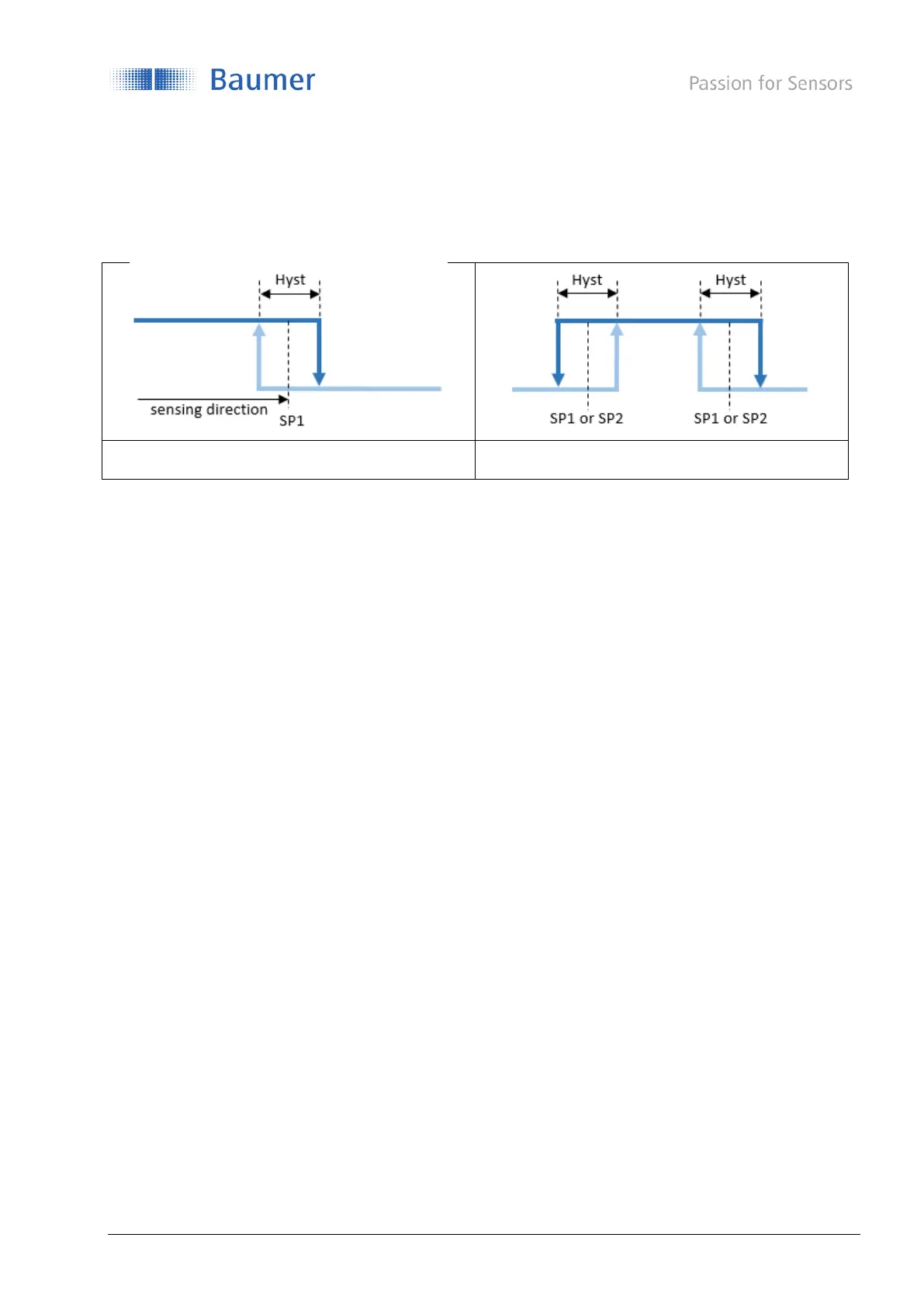

Figure 16 Center Aligned, Single Point Mode
Figure 17 Center Aligned, Window Mode
