5.3.2 Dynamic in Window Mode (Only O200.G)
If the selected SSC is configured to Window mode (Section 4.3.2.1) during the dynamic teach-in the
minimum and maximum values are evaluated. Setpoint SP1 is set to Min, SP2 is set to Max.

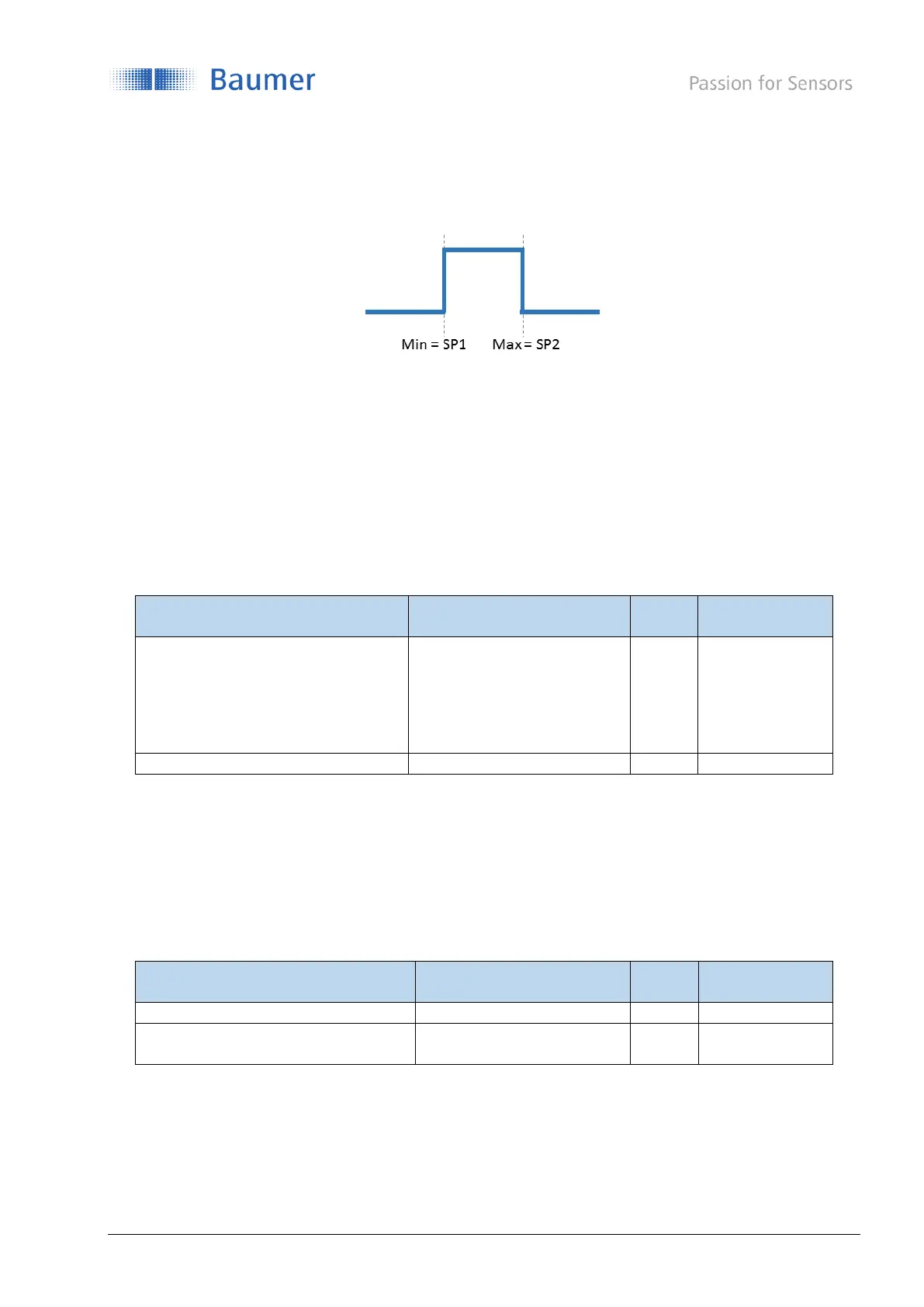

Figure 29: Dynamic Window Teach, switching behavior
6 Diagnosis
In addition to solving the primary application, the simple evaluation of secondary data, such as temperature,
supply voltage or operating time, allows for predictive maintenance and thus optimum machine availability.
6.1 Device Status
Parameter name
Short Description
Rights
Unit / Allowed
values
Device Status
Indicates if the sensor is
working properly
ro
0=Device is OK
2=Out of
Specification
4=Failure
Detailed Device Status
ro
6.2 Device Temperature
An integrated temperature sensor allows to track the internal temperature of the sensor.
Please be aware that compared to the ambient temperature the indicated values are higher due to the
internal heating of the sensor.
The temperature may also vary due to mounting conditions and due to the electric load connected to the
output.
Parameter name
Short Description
Rights
Unit / Allowed
values
Device Temperature.Current
ro
Unit Selection.Temperature
Choice of temperature unit
(Default: °C)
rw
°C, °F, K
