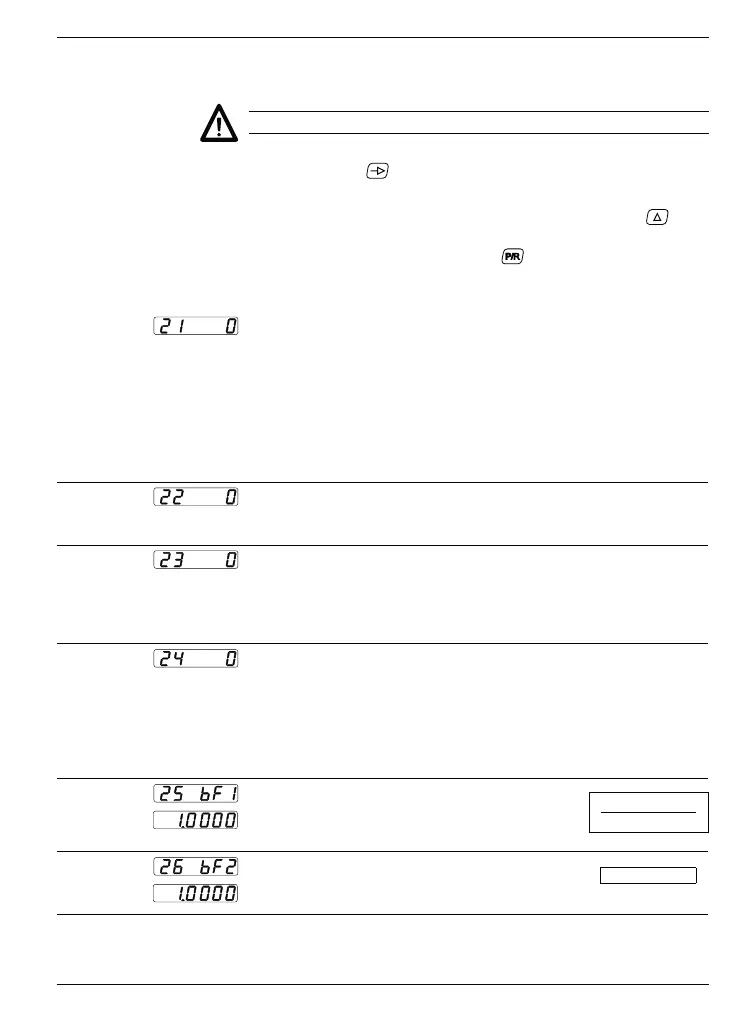

Programming field 3
Programming field 3 begins with programming line 21. In this pro-
gramming field, the programming lines are displayed in sequence.
Default settings are always printed with *.
➜ Press the key
again, for fast run-through hold the key down.
● Programming lines are selected in sequence.
To switch back through the program lines, hold down the
key
at the same time.
The input is stored when you use the key to switch back from the
programming to the operating level.
Line 21 Measurement functions (Display at F3)
0 * Ratio F1:F2
1 Difference between F1 - F2 (with sign)
2 Extension/compression (with sign)
3 Throughput time of a defined path
4 Time measurement via start and stop signal
5 Time measurement of period duration
6 Time measurement of pulse duration
7 Pulse rate measurement
Line 22
Measurement function 0, 1 and 2
0 * Measurement function as in line 21
1 F1 - F2 inverted
Line 23
F1 signal type and max. frequency of F2
0 * F1 Track A possibly with up/down, F2 40 kHz
1 F1 Track A 90° track B, F2 40 kHz
2
F1: Track A possibly with up/down / F2: 25 Hz (contact selection
)
3 F1: Track A 90° track B / F2: 25 Hz
(contact selection
)
Line 24
Input logic
0 * PNP, switching voltage at appr. 11 V
1 NPN, switching voltage at appr. 11 V
2 PNP, switching voltage at appr. 5 V, or Namur with 8 V ext. supply
3 NPN, swit. voltage at appr. 5 V, or Namur without intrinsic safet
4 PNP, switching voltage at appr. 2.5 V
5 NPN, switching voltage at appr. 2.5 V
Line 25
Scale F1 (divider), at speed measurement:
* 1,0000
0,0001...9999,99
pulses/rev.
circumf.
Line 26
Scale F2 (divider), at rpm measurement:
* 1,0000
0,0001...9999,99
pulses/rev.
