Bavaria Vision 46 - Systems (Some Optional); Bilge Pumps System

Owner‘s manual
22

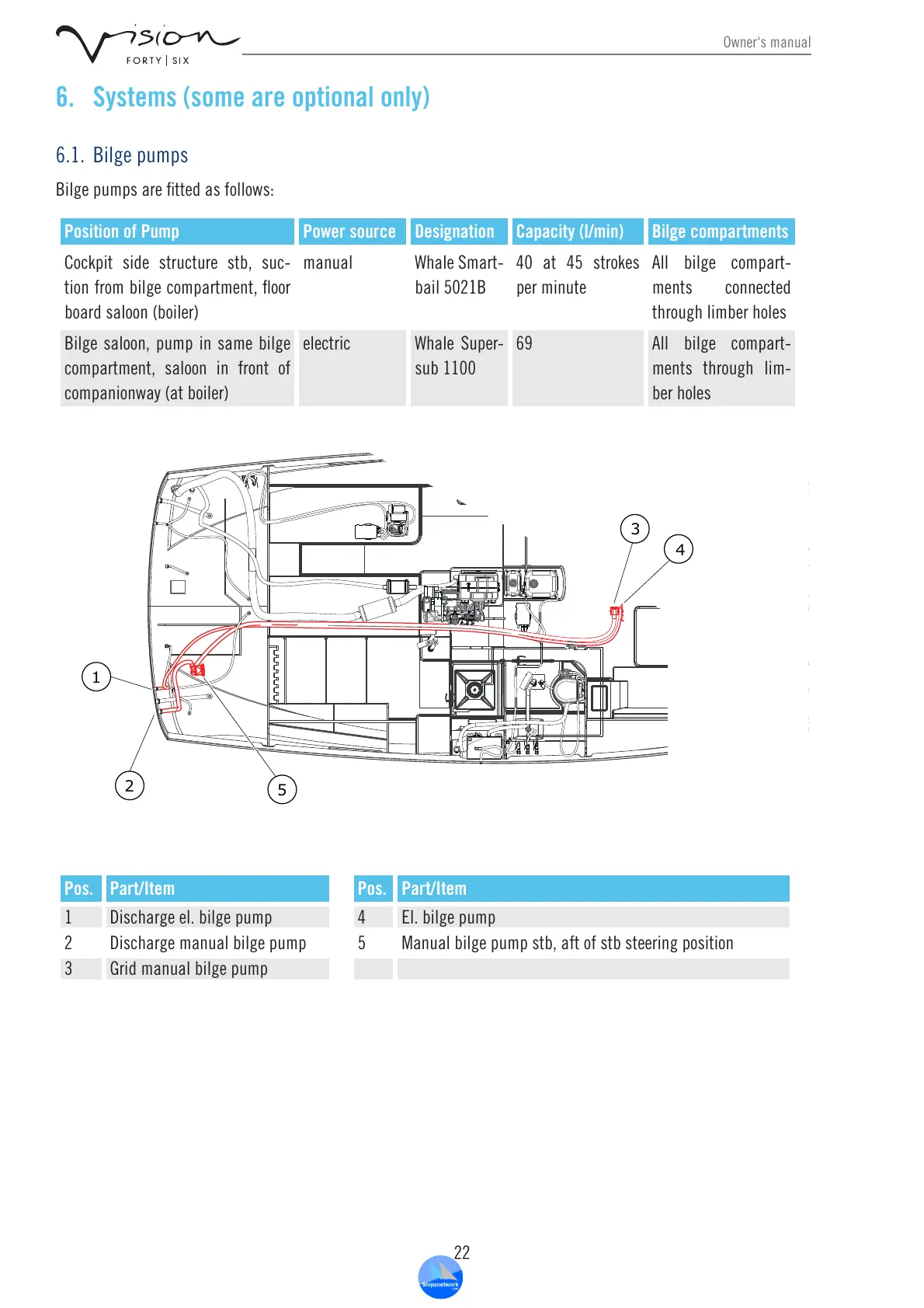

6. Systems (some are optional only)
6.1. Bilge pumps
Bilgepumpsarettedasfollows:
Position of Pump Power source Designation Capacity (l/min) Bilge compartments
Cockpit side structure stb, suc-
tionfrombilgecompartment,oor
boardsaloon(boiler)
manual Whale Smart-
bail5021B
40 at 45 strokes
per minute
All bilge compart-
ments connected
through limber holes
Bilgesaloon,pumpinsamebilge
compartment, saloon in front of
companionway(atboiler)
electric Whale Super-
sub1100
69 All bilge compart-
ments through lim-
ber holes
4
3
2
1
5
Pos. Part/Item Pos. Part/Item
1 Discharge el. bilge pump 4 El. bilge pump
2 Discharge manual bilge pump 5 Manualbilgepumpstb,aftofstbsteeringposition
3 Gridmanualbilgepump
